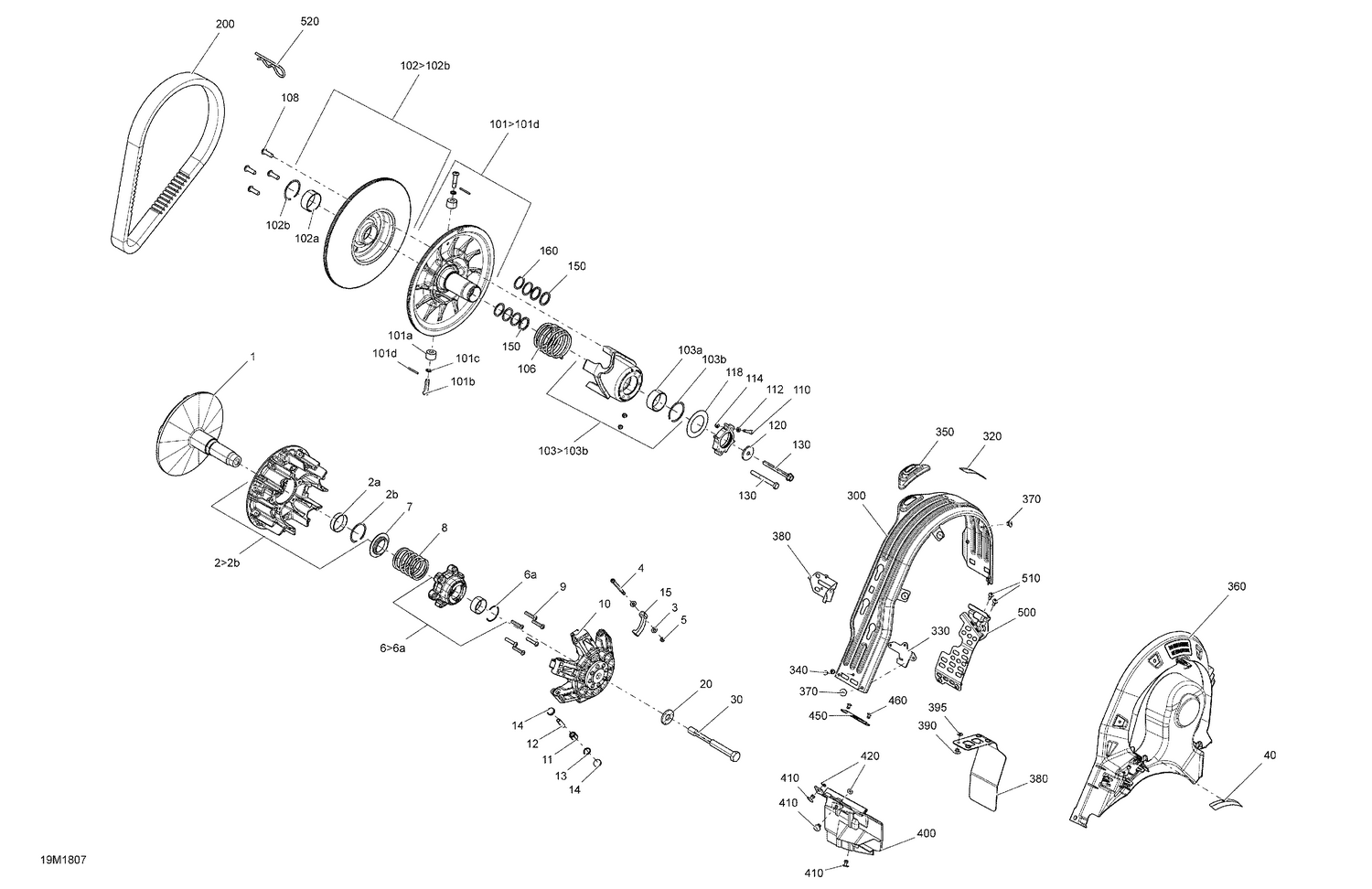

05- Pulley Expedition - 600 ACE
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417224091 | Fixed Flange Ass'y |
| 2a | 417222758 | Bushing |
| 2b | 293370037 | Circlip |
| 3 | 417223255 | Thrust Washer |
| 4 | 417223694 | Ramp Axle |
| 5 | 417224336 | Nut-Stop Elastic DIN.985 |
| 6 | 417223907 | Spring Cover Ass'y |
| 6a | 293370065 | Circlip |
| 7 | 417223752 | Seat Spring |
| 8 | 417223747 | Clutch Spring |
| 9 | 250000580 | Torx Screw M6 X 30 |
| 10 | 417223865 | Governor Cup Ass'y |
| 11 | 417223767 | Roller |
| 12 | 417223257 | Roller Axle |
| 13 | 293300185 | O-Ring |
| 14 | 417223919 | Slider Shoe |
| 15 | 417223508 | Ramp 716 Ass'y |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300432 | Pulley Drive Bolt |
| 40 | 516005503 | Decal English |
| 101a | 417127016 | Pulley Roller |
| 101b | 417127294 | Pivot Stud |
| 101c | 250200009 | Lock Washer 8 mm |
| 101d | 250400063 | Spring Pin M3 X 30 |
| 102a | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 102b | 293370049 | Circlip |
| 103a | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 103b | 293370049 | Circlip |
| 106 | 417127344 | Release Spring |
| 108 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr This part replaces 250000707. |
| 110 | 205052544 | Socket Screw M5 X 25 |
| 112 | 234051410 | Flat Washer M5 |
| 114 | 232551414 | Elastic Stop Nut M5 |
| 118 | 417127155 | Washer |
| 120 | 517302322 | Strength Washer |
| 130 | 207287544 | Hex. Cap Screw M8 X 75 |
| 160 | 417300265 | Spacer |
| 200 | 417300585 | Drive Belt This part replaces 417300127. |
| 300 | 417300382 | Belt Guard |
| 320 | 516005509 | Safety Belt Guard Decal |
| 330 | 417300423 | Front Bracket |
| 340 | 390909200 | Avex Rivet |
| 350 | 417300381 | Guide |
| 360 | 417300440 | CVT Air Duct Pulley |
| 370 | 293150103 | Pop Rivet 3/16" |
| 380 | 417300445 | Stopper |
| 390 | 390909200 | Avex Rivet |
| 400 | 417300430 | Front Support |
| 410 | 293150104 | Pop Rivet 3/16" |
| 420 | 517225900 | Flat Washer |
| 450 | 417300421 | Reinforcement Plate |
| 460 | 390909100 | Avex Rivet |
| 500 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 510 | 250000742 | Torx Screw M5 X 14 |
