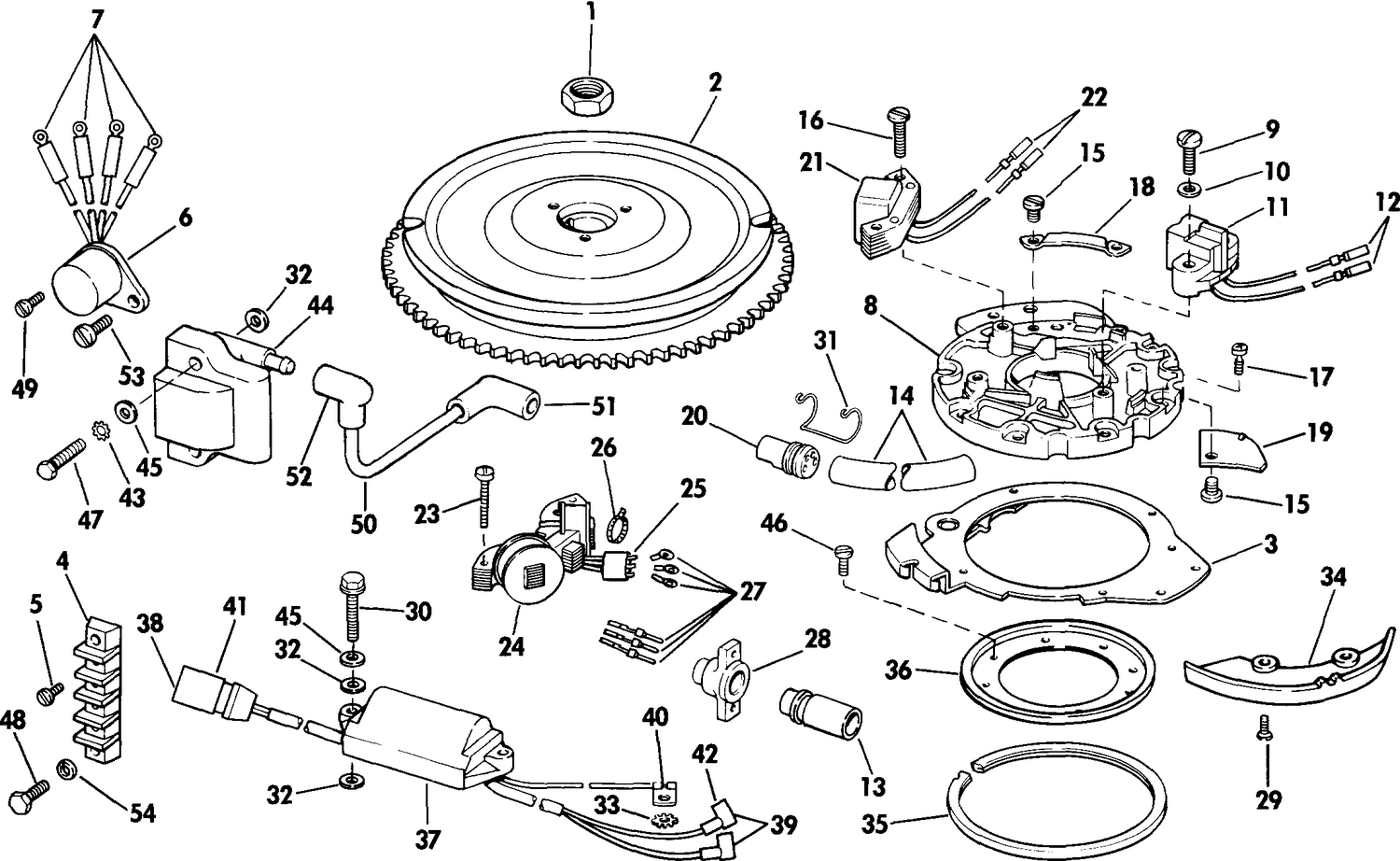

| Ref | Part Number | Description |
|---|
| 3 |
0396031 |
RETAINER & LINK ASSEMBLY |
| 4 |
0511949 |
BORNIER |
| 5 |
0329182 |
VIS, borne |
| 6 |
0581778 |
REDRESSEUR |
| 8 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 11 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 14 |
0512765 |
BRACKET |
| 15 |
0303212 |
VIS, collier & capot |
| 17 |
0511460 |
VIS, dispositif de retenue |
| 18 |
0511458 |
COLLIER, fils |
| 19 |
0511459 |
CACHE, fils |
| 20 |
0512415 |
CONNECTOR |
| 21 |
0581670 |
CHARGE COIL |
| 24 |
0582426 |
STATOR ASSEMBLY |
| 25 |
0511601 |
SLEEVE, Leads |
| 29 |
0331036 |
VIS, attache de palier |
| 30 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter |
| 31 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 32 |
0329176 |
FIBER WASHER, Ignition coil |
| 34 |
0326876 |
CAM, Throttle control |
| 35 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 36 |
0322102 |
PLATE, Support |
| 37 |
0396141 |
POWER PACK |
| 41 |
0512432 |
CONNECTER |
| 44 |
0582508 |
COIL ASSY |
| 46 |
0319547 |
SCREW, Clamp & ground lead |
| 49 |
0314576 |
SCREW |
| 50 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 0582519 |
0582519 |
PLATE ASSEMBLY COMPLETE |
| 0582690 |
0582690 |
CHARGE COIL & PLATE ASSY. 6RC, 6RLC,8ROPE |
