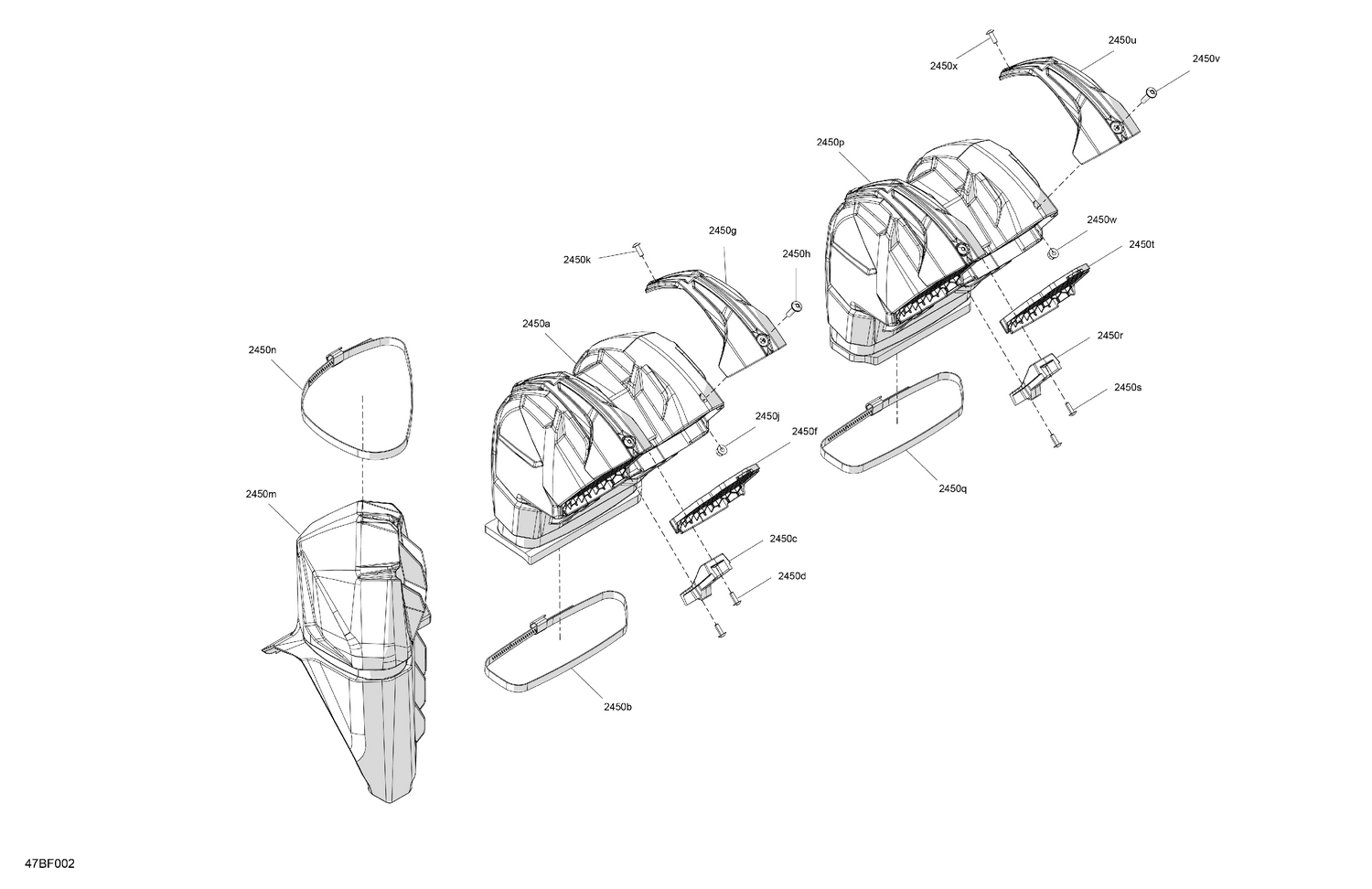

07- Body - Snorkel
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2450a | 706600271 | Air Inlet |
| 2450b | 293650275 | Clamp |
| 2450c | 706600284 | Jonction Grid |
| 2450d | 250000577 | Torx Truss Screw K40 X 12 |
| 2450f | 706600221 | Grate |
| 2450g | 707001523 | Black, Cap |
| 2450h | 250000792 | Torx Screw M5 X 20 |
| 2450j | 233251494 | Elastic Flange Nut M5 |
| 2450k | 250000577 | Torx Truss Screw K40 X 12 |
| 2450m | 706600265 | CVT Outlet |
| 2450n | 293650276 | Clamp |
| 2450p | 707800821 | Air Inlet |
| 2450q | 293650275 | Clamp |
| 2450r | 706600284 | Jonction Grid |
| 2450s | 250000577 | Torx Truss Screw K40 X 12 |
| 2450t | 706600221 | Grate |
| 2450u | 707001523 | Black, Cap |
| 2450v | 250000792 | Torx Screw M5 X 20 |
| 2450w | 233251494 | Elastic Flange Nut M5 |
