Home / BRP / STERN DRIVE / 1990 / 3 / 302AMRPWC 1990 / CRANKCASE

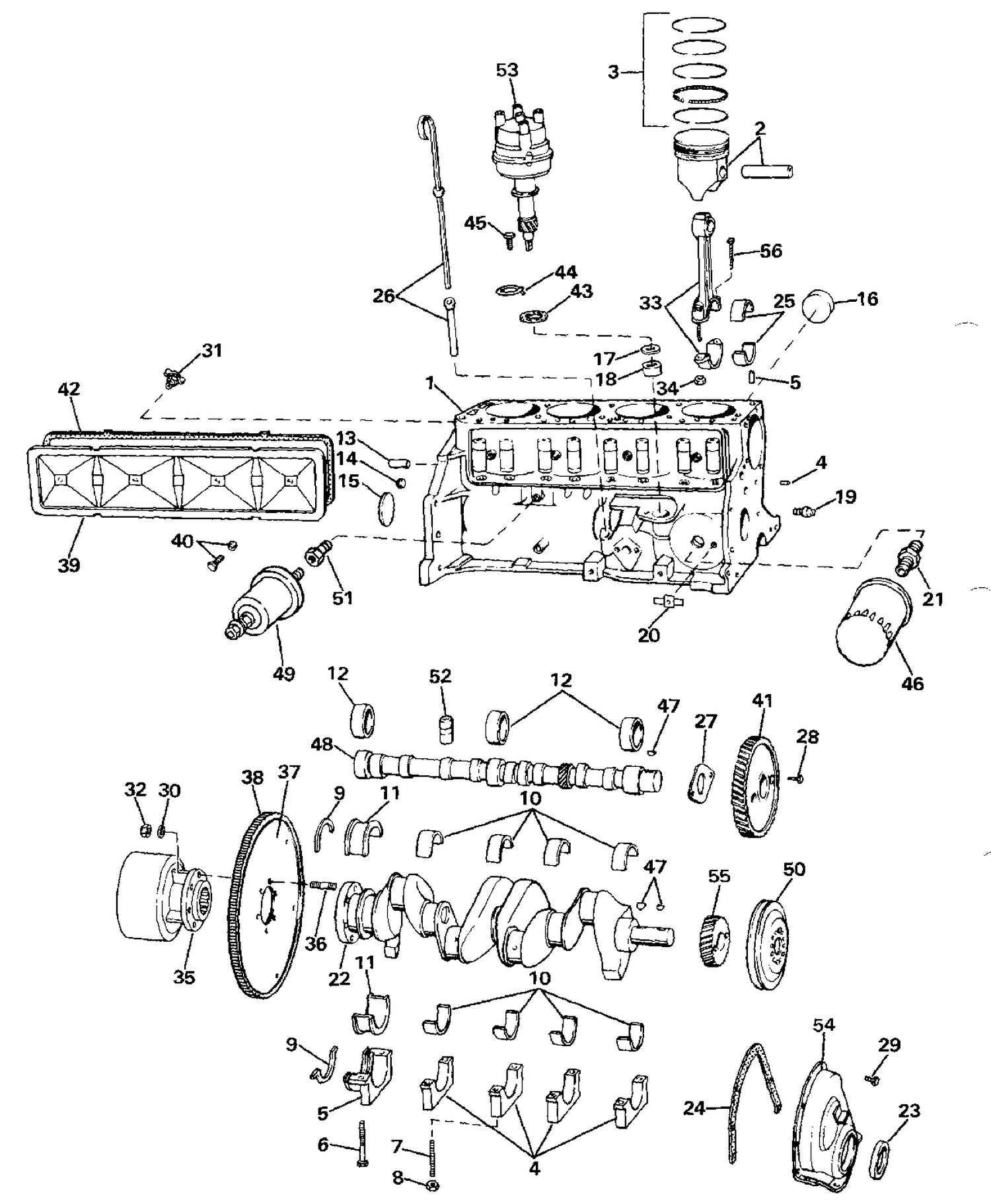

CRANKCASE

CRANKCASE

Parts (70)

RefPart NumberDescription
1 0983047 CRANKCASE ASSEMBLY
2 0980503 PISTON & PIN, Standard
2 0980504 PISTON & PIN, .020" O.S.
3 0912093 RING SET, 0.02 O.S.
3 3853960 PISTON RING SET, Standard This part replaces 0985083.
4 3852743 PLUG, Oil gallery, front hole This part replaces 0913606.
5 3853114 DOWEL PIN, Cylinder head This part replaces 0914302.
6 3852933 BOLT, Main cap This part replaces 0913941.
7 3853111 STUD, #3 bearing cap This part replaces 0914299.
8 3853134 NUT, Oil pan baffle This part replaces 0914326.
9 0985086 SEAL, Upper & lower
10 3853116 BRG ASSY, Exc rear, standard This part replaces 0914304.
10 3853117 BRG ASSY, Exc rear, 0.001 in. U.S. This part replaces 0914305.
10 3853118 BRG ASSY, Exc rear, 0.010 in. U.S. This part replaces 0914307.
10 3853119 BRG ASSY, Exc rear, 0.020 in. U.S. This part replaces 0914308.
10 3853120 BRG ASSY, Exc rear, 0.030 in. U.S. This part replaces 0914309.
11 3853121 BRG ASSY, Rear, standard This part replaces 0914310.
11 3853122 BRG ASSY, Rear, 0.001 in. U.S. This part replaces 0914311.
11 3853123 BRG ASSY, Rear, 0.002 in. U.S. This part replaces 0914312.
11 3853124 BRG ASSY, Rear, 0.010 in. U.S. This part replaces 0914313.
11 3853125 BRG ASSY, Rear, 0.020 in. U.S. This part replaces 0914314.
11 3853126 BRG ASSY, Rear, 0.030 in. U.S. This part replaces 0914315.
12 3852829 BRG, Camshaft This part replaces 0913780.
13 3853113 DOWEL PIN This part replaces 0914301.
15 3852851 PLUG, Camshaft bearing hole This part replaces 0913818.
16 0311376 CORE PLUG, Side
16 0311377 CORE PLUG, Rear
17 3853112 THRUST WASHER This part replaces 0914300.
18 3853115 BEARING, Shaft pilot This part replaces 0914303.
19 3853067 NOZZLE, Timing gear oil This part replaces 0914197.
20 3853103 VALVE ASSY, Bypass This part replaces 0914233.
21 0311072 CONNECTOR, Oil adaptor
22 0908614 CRANKSHAFT ASSEMBLY
23 3853341 SEAL, Front cover This part replaces 0912989.
24 3852691 GASKET, Front cover This part replaces 0913275.
25 3853149 BEARING, Rod, standard This part replaces 0914342.
25 3853150 BEARING, Rod, 0.001 in. U.S. This part replaces 0914343.
25 3853151 BEARING, Rod, 0.002 in. This part replaces 0914344.
25 3853153 BEARING, Rod, 0.020 in. This part replaces 0914346.
25 3856117 BEARING, Rod, 0.010 in. U/S This part replaces 0914345.
26 3850524 OIL LEVEL GAUGE & TUBE ASSY This part replaces 0381927.
27 3853136 BEARING, Thrust unit This part replaces 0914328.
28 3852441 SCREW & LOCK WASHER This part replaces 0908407.
29 3852441 SCREW & LOCK WASHER This part replaces 0908407.
30 0304671 LOCKWASHER, Coupler to flywheel
31 0379957 PETCHOCK ASSY, Water drain
32 3853273 LOCKNUT, Coupler This part replaces 0912383.
33 3853785 CONNECTING ROD & CAP ASSY This part replaces 0980505.
34 3853148 NUT, Connecting rod This part replaces 0914341.
35 3853962 COUPLING This part replaces 0983902.
36 0911927 STUD, Coupling
37 0913669 FLYWHEEL ASSY
38 3853143 GEAR, Flywheel This part replaces 0914336.
39 3853138 COVER, Push rod This part replaces 0914330.
40 3853955 BOLT & SEAL ASSY This part replaces 0986318.
41 3852452 GEAR, Camshaft timing This part replaces 0908613.
42 3852692 GASKET, Push rod cover This part replaces 0913276.
43 3852660 GASKET, Distributor This part replaces 0912980.
44 3853142 CLAMP, Distributor This part replaces 0914334.
45 0306539 BOLT, Distributor
46 0173232 OIL FILTER
47 3852663 KEY, Crankshaft This part replaces 0912990.
48 0908610 CAMSHAFT ASSEMBLY
49 3853800 OIL PRESSURE SENDER This part replaces 0982650.
50 3852662 DAMPER, Crankshaft pulley This part replaces 0912987.
51 3855776 ADAPTER, Oil sender This part replaces 0914038.
52 0986317 LIFTER, Valve
53 0982351 DISTRIBUTOR ASSEMBLY
54 3853135 COVER ASSY, Crankshaft, front This part replaces 0914327.
55 3852661 GEAR, Crankshaft This part replaces 0912983.
