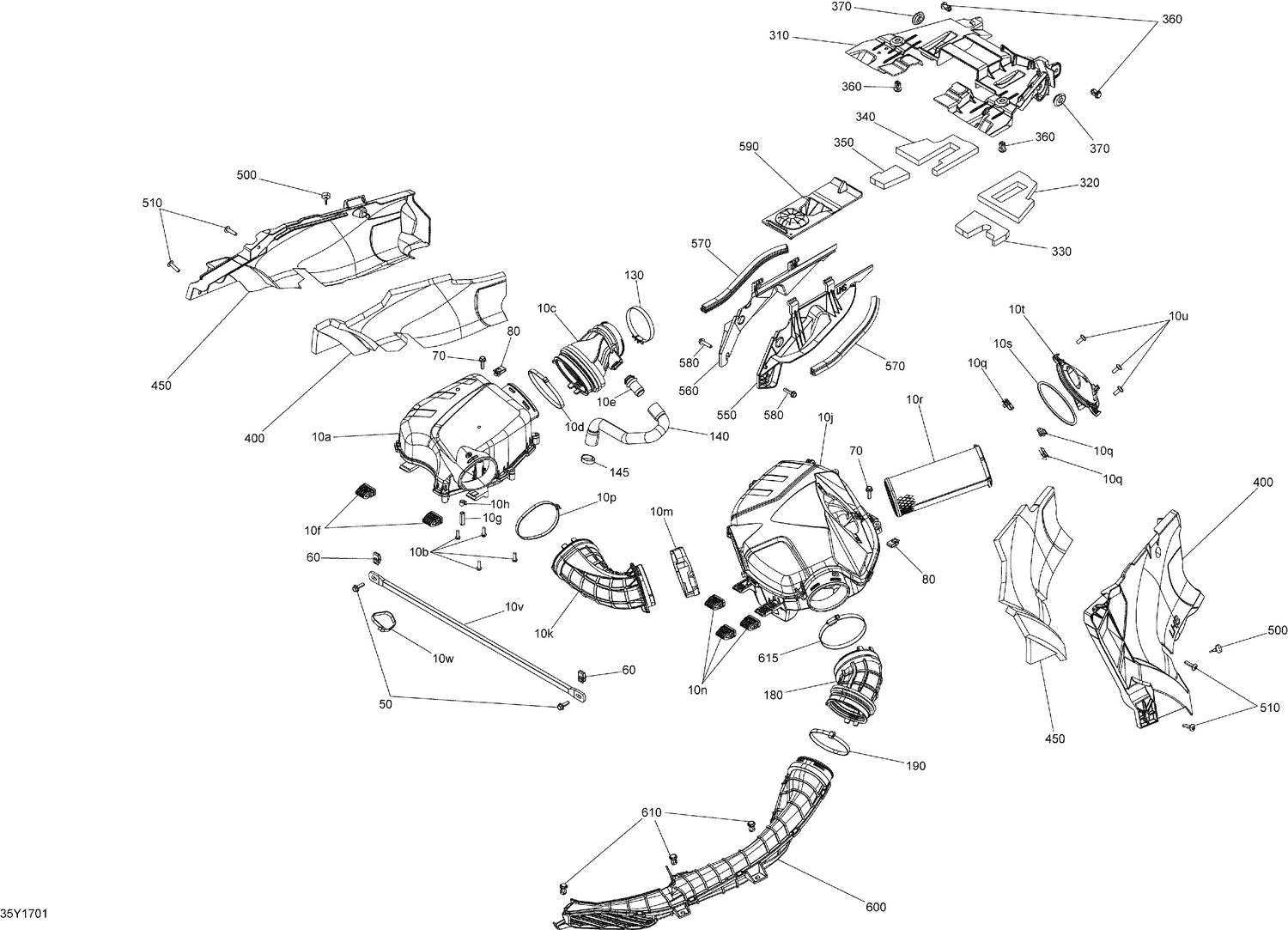

02- Air Intake - All Models
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 707800488 | RH Air Intake Silencer |
| 10b | 243141680 | Hex. Screw M4.8 X 1.8 |
| 10c | 707800388 | Air Intake Adaptor |
| 10d | 509000165 | Tie Rap |
| 10e | 273000234 | Breather Valve |
| 10f | 707800452 | Rubber Stopper |
| 10g | 293000105 | Cap Plug |
| 10h | 414554800 | Spring Clamp |
| 10j | 707800489 | LH Air Intake Silencer |
| 10k | 707800485 | Intake Adaptor |
| 10m | 707800525 | Ring |
| 10n | 707800452 | Rubber Stopper |
| 10p | 509000165 | Tie Rap |
| 10q | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 10r | 707800483 | Air Filter |
| 10s | 707800455 | O-ring |
| 10t | 707800484 | Cap |
| 10u | 250000348 | Torx Truss Screw M6 X 16 |
| 10v | 707800432 | Link Rod |
| 10w | 509000165 | Tie Rap |
| 50 | 207662044 | Hex. Flange Screw M6 X 20 |
| 60 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 70 | 207662044 | Hex. Flange Screw M6 X 20 |
| 80 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 130 | 508000346 | Gemi Clamp |
| 140 | 707800824 | Formed Hose This part replaces 707800406. |
| 145 | 293650173 | Tridon Gear Clamp |
| 180 | 707800389 | Adapter |
| 190 | 509000165 | Tie Rap |
| 310 | 707800562 | Acoustic Support |
| 360 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 370 | 705000321 | Oval Washer |
| 400 | 707800338 | RH ACOUSTIC SHELL FOAM - Call your local BRP dealership |
| 400 | 707800696 | LH ACOUSTIC SHELL - Call your local BRP dealership |
| 450 | 707800339 | LH ACOUSTIC SHELL FOAM - Call your local BRP dealership |
| 450 | 707800697 | ACOUS SHELL RH - Call your local BRP dealership |
| 500 | 708000759 | Rubber Stopper |
| 510 | 250000758 | Torx Screw M6 X 25 |
| 590 | 707800343 | Center Bellows |
| 600 | 707800477 | Air Inlet Valve |
| 610 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
