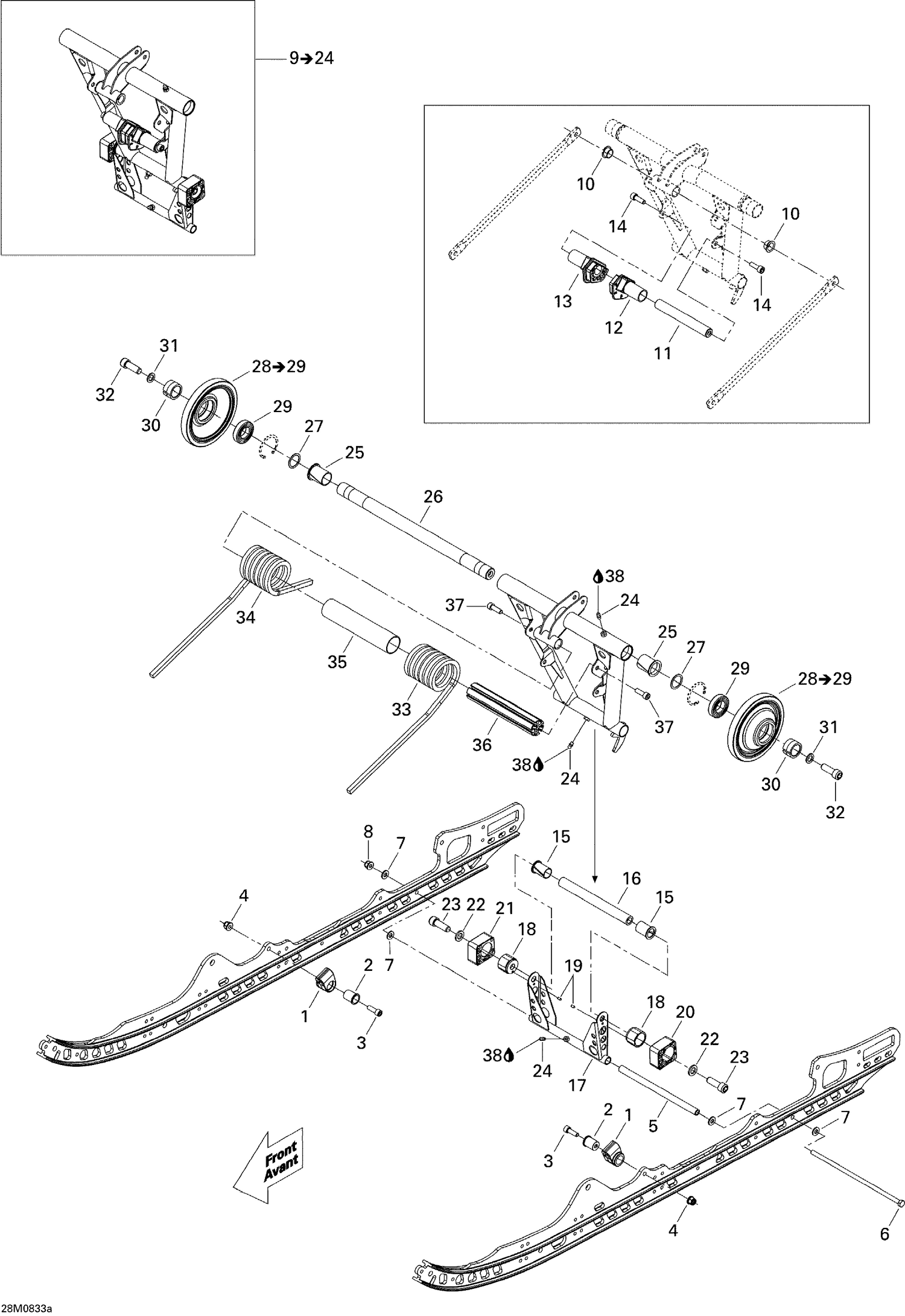

08- Rear Arm Renegade
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 2 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 3 | 205082544 | Socket Head Screw M8 X 25 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503189156 | Pivot Arm Axle |
| 6 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 7 | 503189157 | Washer |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 503191555 | Swivel Bushing |
| 11 | 503191178 | Spring Cam Axe |
| 12 | 503191191 | LH Spring Cam |
| 13 | 503191190 | RH Spring Cam |
| 14 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 15 | 503191640 | Cushion |
| 16 | 503192330 | Lower Shaft This part replaces 503190687. |
| 17 | 503191302 | Pivot Arm |
| 18 | 503189488 | Block Guide |
| 19 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 20 | 503191563 | LH Block, 4 Positions |
| 21 | 503191562 | RH Block, 4 Positions |
| 22 | 503189148 | Washer |
| 23 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 24 | 408200700 | Grease Fitting |
| 25 | 503191451 | Cushion |
| 26 | 503191233 | UPPER SHAFT - Call your local BRP dealership |
| 27 | 503190328 | Washer |
| 29 | 503193548 | Ball Bearing This part replaces 503191149. |
| 30 | 503191099 | Retaining Ring |
| 31 | 503189276 | Washer |
| 32 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 33 | 503191613 | Black LH Spring, Square |
| 34 | 503191612 | Black RH Spring, Square |
| 35 | 503191345 | Plastic Bushing |
| 36 | 503191344 | Spring Axle |
| 37 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 38 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
