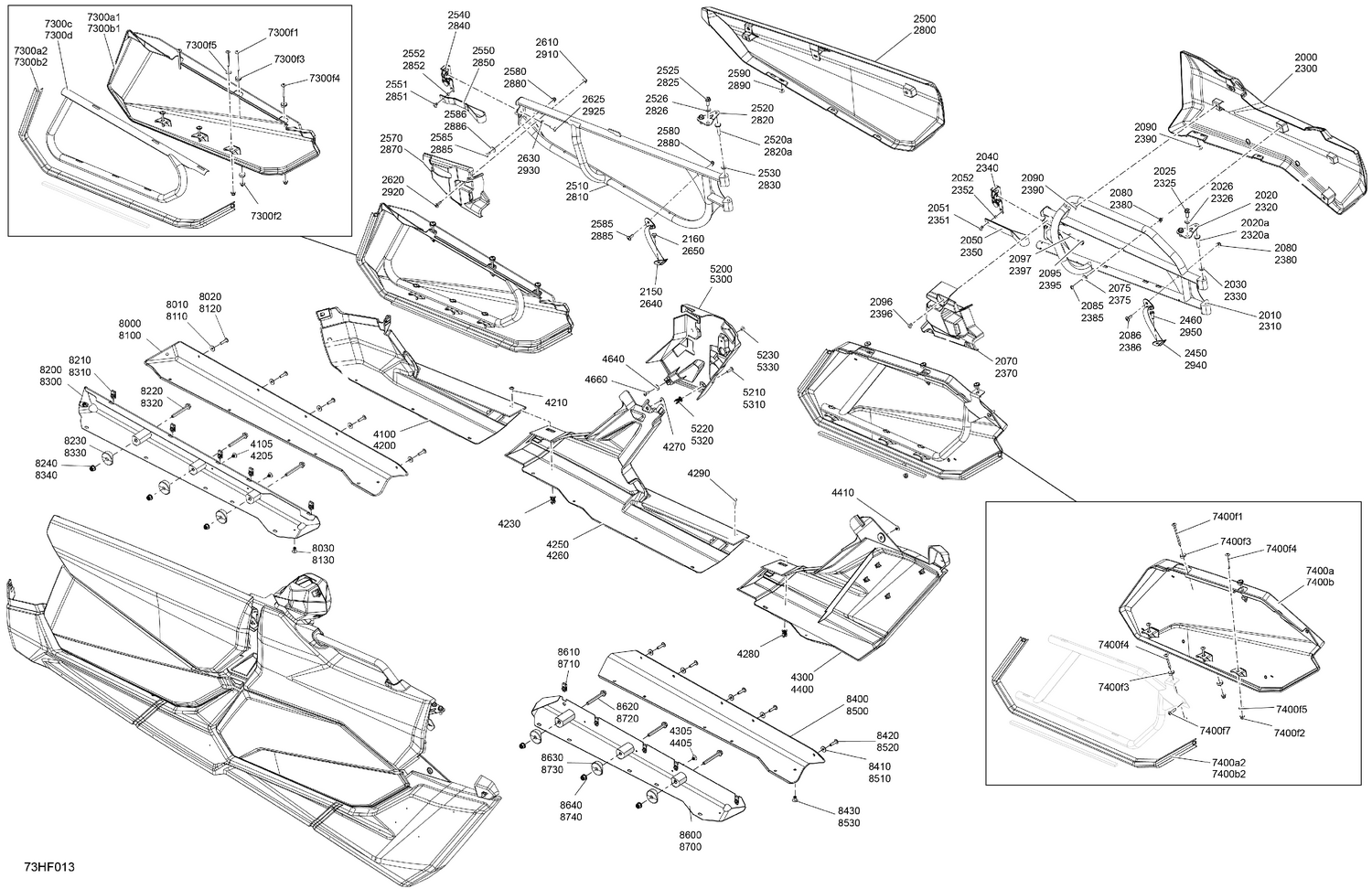

| Ref | Part Number | Description |
|---|
| 2000 |
705019623 |
Loft Green, LH Rear Door Panel |
| 2010 |
705018466 |
Deep Black, LH Rear Door |
| 2020a |
705011187 |
Door Support |
| 2025 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2026 |
234081430 |
Flat Washer M8 |
| 2030 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2040 |
705013095 |
LH Latch |
| 2050 |
293850135 |
Belt |
| 2051 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2052 |
293900104 |
Bushing |
| 2070 |
715009848 |
LH Lateral Panel Cover Ass'y |
| 2075 |
234062670 |
Stainless Steel Flat Washer |
| 2080 |
250100198 |
Panel Nut M6 X 1.0 |
| 2085 |
250000748 |
Torx Screw M6 X 45 |
| 2086 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2090 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2095 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2096 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2097 |
224061121 |
Flat Washer |
| 2150 |
705801727 |
Retaining Strap |
| 2160 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 2300 |
705019624 |
Loft Green, RH Rear Door Panel |
| 2310 |
705018472 |
Deep Black, RH Rear Door |
| 2320a |
705011187 |
Door Support |
| 2325 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2326 |
234081430 |
Flat Washer M8 |
| 2330 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2340 |
705013096 |
RH Latch |
| 2350 |
293850135 |
Belt |
| 2351 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2352 |
293900104 |
Bushing |
| 2370 |
715009849 |
RH Side Trim Ass'y |
| 2375 |
234062670 |
Stainless Steel Flat Washer |
| 2380 |
250100198 |
Panel Nut M6 X 1.0 |
| 2385 |
250000748 |
Torx Screw M6 X 45 |
| 2386 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2390 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2395 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2396 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2397 |
224061121 |
Flat Washer |
| 2450 |
705801727 |
Retaining Strap |
| 2460 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 2500 |
705019621 |
Loft Green, LH Front Door Panel |
| 2510 |
705018468 |
Deep Black, LH Front Door |
| 2520a |
705011187 |
Door Support |
| 2525 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2526 |
234081430 |
Flat Washer M8 |
| 2530 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2540 |
705013095 |
LH Latch |
| 2550 |
293850135 |
Belt |
| 2551 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2552 |
293900104 |
Bushing |
| 2570 |
705013535 |
LH Latch Cover |
| 2580 |
250100198 |
Panel Nut M6 X 1.0 |
| 2585 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2586 |
234062670 |
Stainless Steel Flat Washer |
| 2590 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2610 |
250100198 |
Panel Nut M6 X 1.0 |
| 2620 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2625 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2630 |
224061121 |
Flat Washer |
| 2640 |
705801727 |
Retaining Strap |
| 2650 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 2800 |
705019622 |
Loft Green, LH Front Door Panel |
| 2810 |
705018470 |
Deep Black, RH Front Door |
| 2820a |
705011187 |
Door Support |
| 2825 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2826 |
234081430 |
Flat Washer M8 |
| 2830 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2840 |
705013096 |
RH Latch |
| 2850 |
293850135 |
Belt |
| 2851 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2852 |
293900104 |
Bushing |
| 2870 |
705013536 |
RH Latch Cover |
| 2880 |
250100198 |
Panel Nut M6 X 1.0 |
| 2885 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2886 |
234062670 |
Stainless Steel Flat Washer |
| 2890 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2910 |
250100198 |
Panel Nut M6 X 1.0 |
| 2920 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2925 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2930 |
224061121 |
Flat Washer |
| 2940 |
705801727 |
Retaining Strap |
| 2950 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 4100 |
705012768 |
LH Central Lateral Panel |
| 4105 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 4200 |
705017549 |
Deep Black, RH Lower Body Panel This part replaces 705012769. |
| 4205 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 4210 |
250000722 |
Torx Screw M6 X 20 |
| 4230 |
705016606 |
Insert |
| 4250 |
705018260 |
LH Central Body Panel |
| 4260 |
705018261 |
RH Central Body Panel |
| 4270 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 4280 |
705016606 |
Insert |
| 4290 |
250000722 |
Torx Screw M6 X 20 |
| 4300 |
705012770 |
LH Rear Lateral Panel |
| 4305 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 4400 |
705012771 |
RH Rear Lateral Panel |
| 4405 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 4410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 4640 |
234062670 |
Stainless Steel Flat Washer |
| 4660 |
250000720 |
Torx Screw K50 X 16 |
| 5200 |
705013098 |
Black, LH Central Door Trim |
| 5210 |
250000722 |
Torx Screw M6 X 20 |
| 5220 |
705016606 |
Insert |
| 5230 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 5300 |
705013099 |
Black RH Central Door Trim |
| 5310 |
250000722 |
Torx Screw M6 X 20 |
| 5320 |
705016606 |
Insert |
| 5330 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 7300a1 |
705010271 |
LH Door Panels |
| 7300a2 |
705012018 |
Door Seal |
| 7300b1 |
705010272 |
RH Door Panels |
| 7300b2 |
705012018 |
Door Seal |
| 7300c |
705018161 |
Deep Black, LH Door |
| 7300d |
705018162 |
Deep Black, RH Door |
| 7300f1 |
250000902 |
Torx-Truss M/S M6 X 80 |
| 7300f2 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 7300f3 |
705202223 |
Offset Washer |
| 7300f4 |
250000749 |
Torx Truss Screw M6 X 50 |
| 7300f5 |
234062670 |
Stainless Steel Flat Washer |
| 7400a2 |
705012018 |
Door Seal |
| 7400b2 |
705012018 |
Door Seal |
| 7400f1 |
250000902 |
Torx-Truss M/S M6 X 80 |
| 7400f2 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 7400f3 |
705202223 |
Offset Washer |
| 7400f4 |
250000749 |
Torx Truss Screw M6 X 50 |
| 7400f5 |
234062670 |
Stainless Steel Flat Washer |
| 7400f7 |
250000807 |
Torx Truss Screw M6 X 25 |
| 8000 |
705013015 |
Black, LH Lateral Panel |
| 8010 |
250200164 |
Flat washer M6 |
| 8020 |
250000807 |
Torx Truss Screw M6 X 25 |
| 8030 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 8100 |
705013016 |
Black, RH Lateral Panel |
| 8110 |
250200164 |
Flat washer M6 |
| 8120 |
250000807 |
Torx Truss Screw M6 X 25 |
| 8130 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 8200 |
705018480 |
LH Frame |
| 8210 |
250100198 |
Panel Nut M6 X 1.0 |
| 8220 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 8230 |
705205462 |
Saddle Washer |
| 8240 |
233281464 |
Elastic Flange Nut M8 |
| 8300 |
705018478 |
RH Frame |
| 8310 |
250100198 |
Panel Nut M6 X 1.0 |
| 8320 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 8330 |
705205462 |
Saddle Washer |
| 8340 |
233281464 |
Elastic Flange Nut M8 |
| 8400 |
705018265 |
LH Rear Rocker Panel |
| 8410 |
250200164 |
Flat washer M6 |
| 8420 |
250000807 |
Torx Truss Screw M6 X 25 |
| 8430 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 8500 |
705018266 |
RH Rear Rocker Panel |
| 8510 |
250200164 |
Flat washer M6 |
| 8520 |
250000807 |
Torx Truss Screw M6 X 25 |
| 8530 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 8600 |
705018554 |
LH Rear Support |
| 8610 |
250100198 |
Panel Nut M6 X 1.0 |
| 8620 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 8630 |
705205462 |
Saddle Washer |
| 8640 |
233281464 |
Elastic Flange Nut M8 |
| 8700 |
705018555 |
LH Rear Support |
| 8710 |
250100198 |
Panel Nut M6 X 1.0 |
| 8720 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 8730 |
705205462 |
Saddle Washer |
