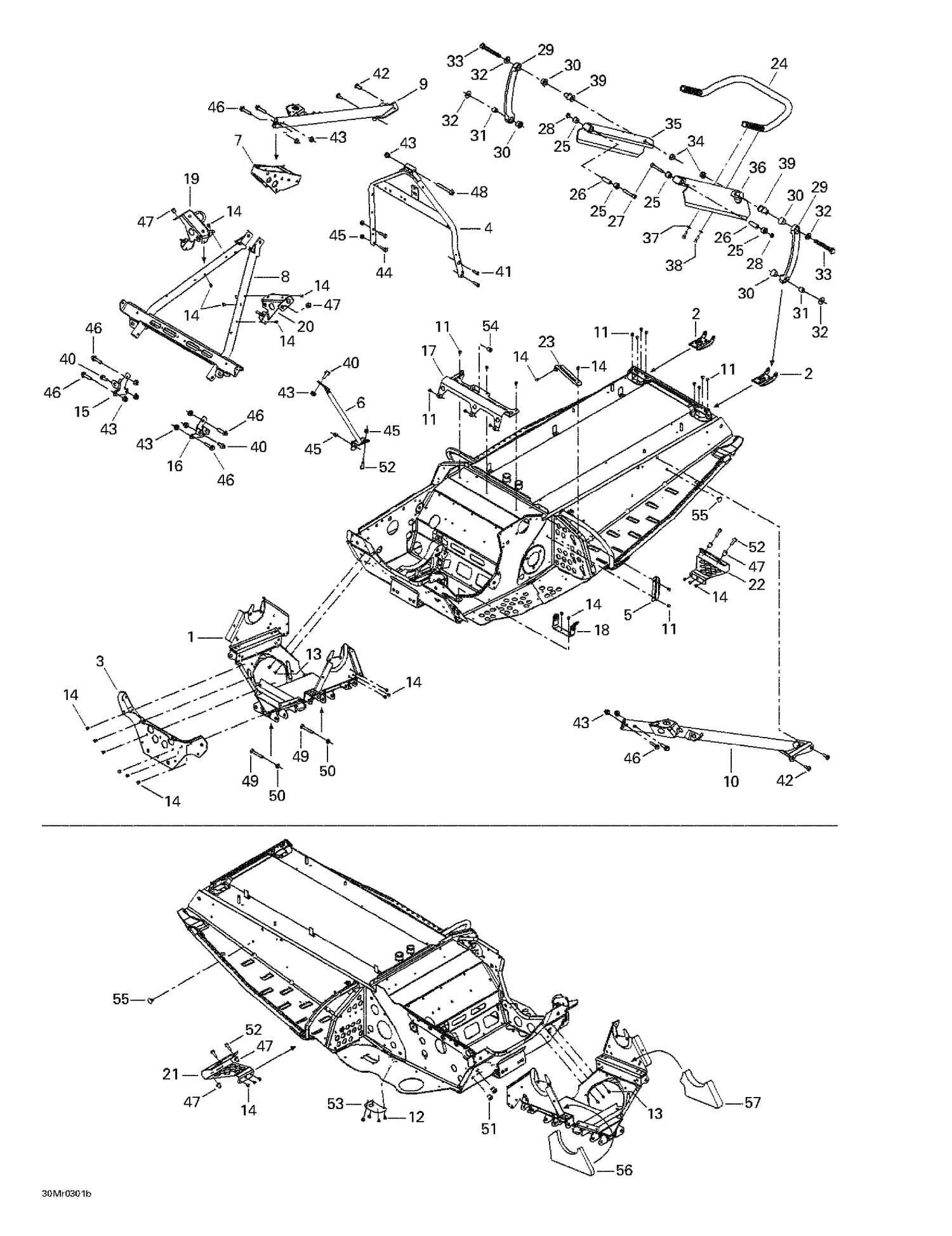

09- Frame - Front And Rear
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518323246 | Front Cross-Member |
| 2 | 518322253 | Rear Pivot |
| 3 | 518322166 | Front Plate |
| 4 | 518323394 | Handle Support |
| 5 | Not | Available As Spare Part - Cable protector |
| 6 | 518323472 | BRACE, BLACK - Call your local BRP dealership |
| 7 | 518322546 | Bracket |
| 8 | 518323251 | Upper Cross-Member |
| 9 | 518323352 | RH Member |
| 10 | 518323354 | LH MEMBER - Call your local BRP dealership |
| 11 | 390402200 | Pop Rivet 3/16" |
| 12 | 390402400 | Pop Rivet 3/16" |
| 13 | 390909100 | Avex Rivet |
| 14 | 390909200 | Avex Rivet |
| 15 | 518322461 | RH SHOCK BRACKET - Call your local BRP dealership |
| 16 | 518322462 | LH SHOCK BRACKET - Call your local BRP dealership |
| 17 | 518323463 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 18 | 518322726 | GUARD BELT BRACKET, BLACK - Call your local BRP dealership |
| 19 | 518322961 | RH Console Support |
| 20 | 518322962 | LH CONSOLE SUPPORT - Call your local BRP dealership |
| 21 | 518323377 | RH Toe Hold |
| 22 | 518323378 | LH Toe Hold |
| 23 | 518323105 | PLATE, BLACK - Call your local BRP dealership |
| 24 | 518322370 | Rear Bumper |
| 25 | 520000234 | CUSHION - Call your local BRP dealership |
| 26 | 518322367 | BUSHING - Call your local BRP dealership |
| 27 | 205085544 | Socket Head Screw M8 X 55 |
| 28 | 232581414 | Hex. Elastic Stop Nut M8 |
| 29 | 518323454 | Rod |
| 30 | 503189117 | Urethane Bushing |
| 31 | 518322368 | Bushing |
| 32 | 732900051 | WASHER - Call your local BRP dealership |
| 33 | 207108044 | HEX. SCREW M10 X 80 - Call your local BRP dealership |
| 34 | 233201414 | Hex. Flange Elastic Nut M10 |
| 35 | 518323396 | RH Support |
| 36 | 518323398 | LH Support |
| 37 | Not | Available As Spare Part - Socket head screw M6 x 20 |
| 38 | 224061121 | Flat Washer |
| 39 | 518322682 | Spacer |
| 40 | 207682044 | Hex. Flange Screw M8 X 20 |
| 41 | 205862044 | Socket Head Screw M6 X 20, Scotch Grip |
| 42 | 250000740 | Torx Screw M8 X 20, Scotch Grip This part replaces 250000117. |
| 43 | 233281414 | Hex. Flange Elastic Nut M8 |
| 44 | 207662544 | Hex. Flange Screw M6 X 25 |
| 45 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 46 | 207683544 | Hex. Flange Screw M8 X 35 |
| 47 | 293450275 | Insert This part replaces 415107300. |
| 48 | 207687044 | Hex. Flange Screw M8 X 70 |
| 49 | 207085044 | Hex. Screw M8 X 50 |
| 50 | 232581414 | Hex. Elastic Stop Nut M8 |
| 51 | 293450166 | Insert |
| 52 | 207662044 | Hex. Flange Screw M6 X 20 |
| 53 | 518323505 | Plate |
| 54 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 55 | 518321954 | Panel Fastener |
| 56 | 518323453 | RH FRONT FOAM - Call your local BRP dealership |
