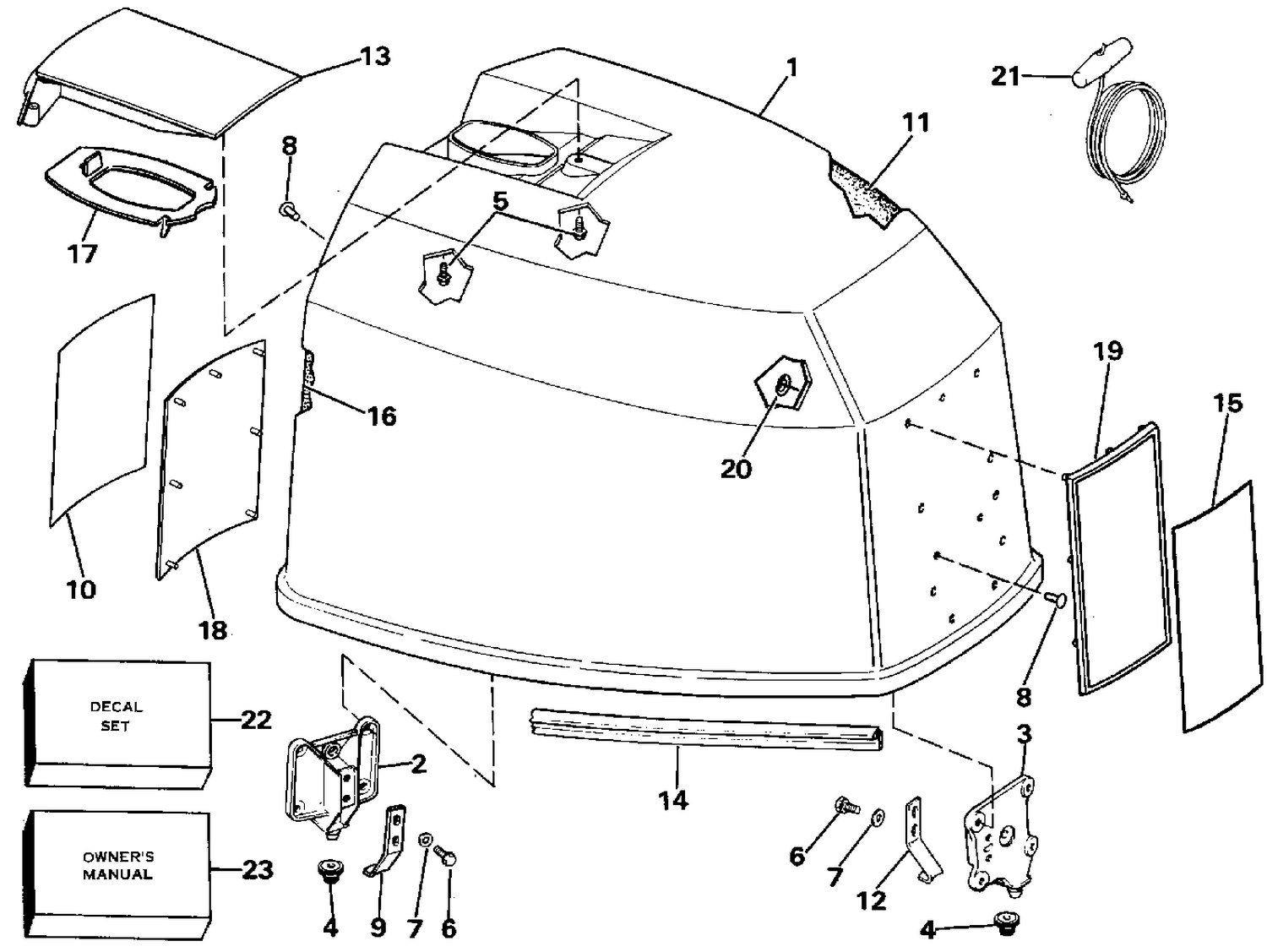

| Ref | Part Number | Description |
|---|
| 1 |
0397779 |
ENGINE COVER ASSY., 150 |
| 1 |
0397780 |
ENGINE COVER ASSY., 175 |
| 1 |
0431751 |
ENGINE COVER ASSY., 150CX |
| 2 |
0394976 |
LOCATING BRACKET, Rear |
| 3 |
0389971 |
LOCATING BARCKET, Front |
| 4 |
0270399 |
SEAL, Engine cover, 175STL only |
| 10 |
0332758 |
PLATE, Applique, rear, 150 |
| 10 |
0332761 |
PLATE, Applique, rear, 175 |
| 10 |
0333981 |
PLATE, Applique, rear, 150CX |
| 11 |
0209445 |
SOUND BLANKET, Top |
| 12 |
0323175 |
HOOK , Motor Cover, Front |
| 14 |
0328686 |
SEAL, Engine cover This part replaces 0326508. |
| 15 |
0332755 |
PLATE, Applique, front |
| 15 |
0333980 |
PLATE, Applique, front 150CX |
| 16 |
0334853 |
SOUND BLANKET, Side This part replaces 0208954. |
| 18 |
0331236 |
APPLIQUE, Engine cover, rear |
| 19 |
0331232 |
APPLIQUE, Front |
| 21 |
0378347 |
CORDE DE LANCEUR |
| 22 |
0397512 |
DECAL SET, 150 |
| 22 |
0397514 |
DECAL SET, 175 |
| 23 |
0398922 |
OWNER'S MANUAL |
| 23 |
0431859 |
OWNER'S MANUAL |
