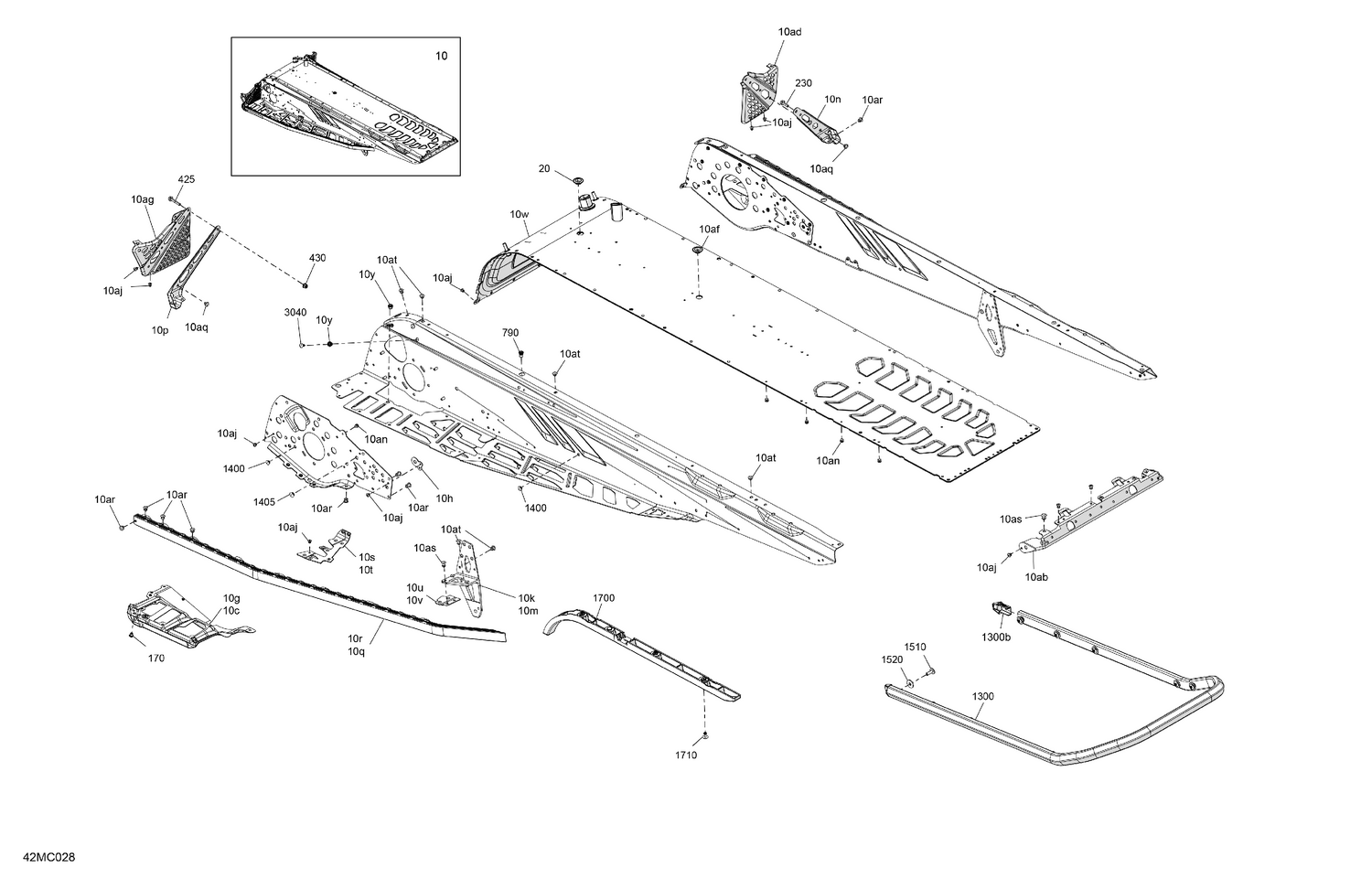

| Ref | Part Number | Description |
|---|
| 10ab |
518328990 |
Rear Cap |
| 10ad |
518333006 |
RH Footrest |
| 10af |
293730052 |
Black, Plug |
| 10ag |
518333007 |
LH Footrest |
| 10aj |
293150203 |
Rivet Avibulb 3/16 |
| 10an |
293150245 |
Henrob Rivet |
| 10aq |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10ar |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10as |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10at |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10c |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10g |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10h |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10k |
518334406 |
LH Rear Suspension Support |
| 10m |
518334407 |
RH Rear Suspension Support This part replaces 518334407. |
| 10n |
518334507 |
Stirrup Reinforcement |
| 10p |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10q |
518328451 |
RH Roller |
| 10r |
518328452 |
LH Roller |
| 10s |
518332296 |
LH Footrest Reinforcement |
| 10t |
518332297 |
RH Footrest Reinforcement |
| 10u |
518329088 |
LH Reinforcement Plate |
| 10v |
518329089 |
RH Reinforcement Plate |
| 10w |
518334489 |
Radiator Tunnel 146 |
| 10y |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 20 |
293730052 |
Black, Plug |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 790 |
293450278 |
Insert |
| 1300b |
520001612 |
Cap |
| 1400 |
293730041 |
Full Moon Dart 8 mm |
| 1405 |
293730059 |
Full Moon Dart 10 mm |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
