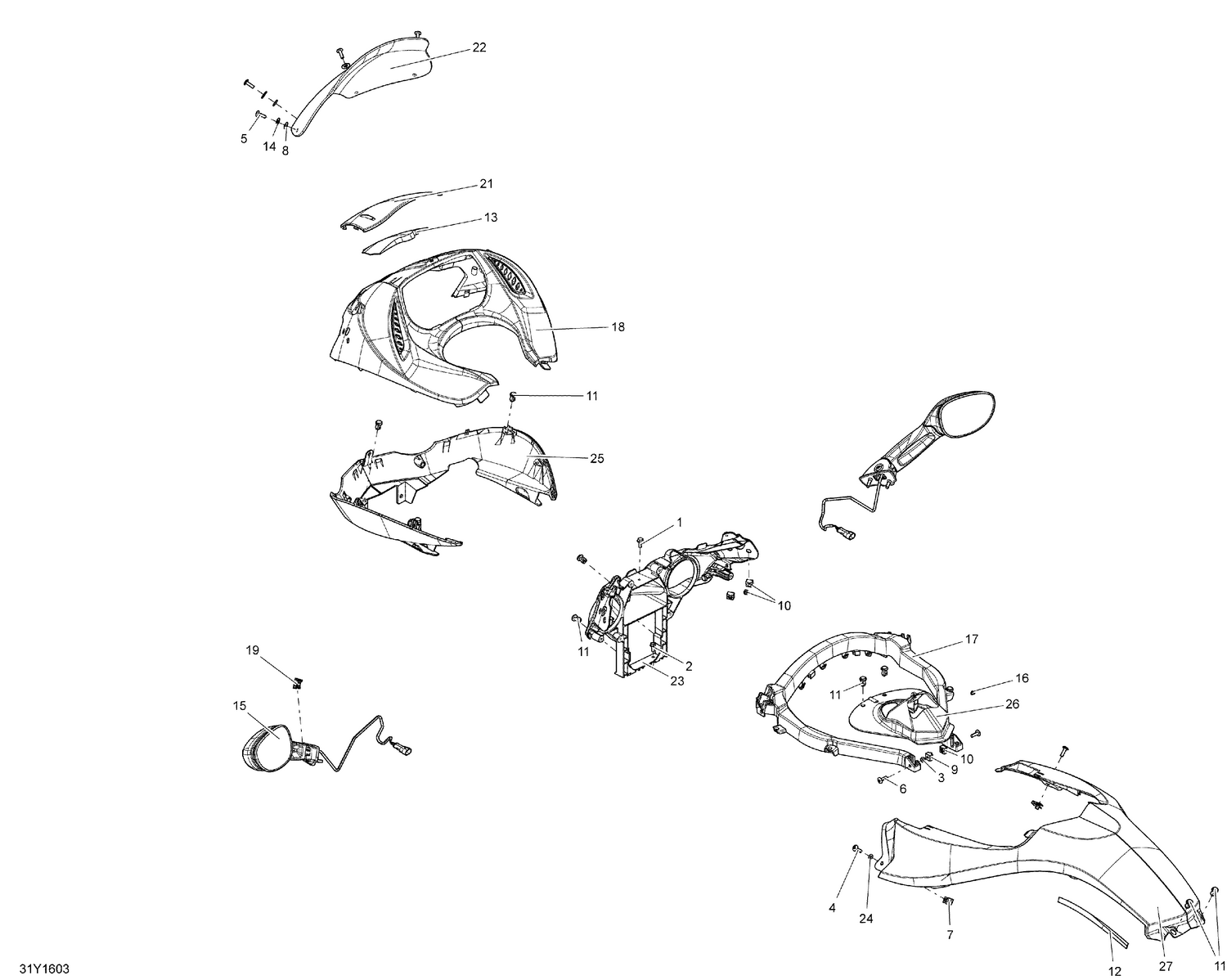

09- Body And Accessories - Console
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 210261650 | Hex. Flange Screw M6 X 16 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 |
| 4 | 250000350 | Torx Truss Screw M6 X 20 |
| 5 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 6 | 250000488 | Torx Truss Screw M6 X 20 |
| 7 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8 | 250200024 | Rubber Washer 5 mm |
| 9 | 269500252 | M6 Nut Housing Ass'y |
| 10 | 269500725 | M6 Nut Housing Ass'y |
| 11 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 12 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 13 | 705009360 | Guide Chart |
| 14 | 234062670 | Stainless Steel Flat Washer |
| 15 | 705005574 | LH Mirror Ass'y |
| 15 | 705005575 | RH Mirror Ass'y |
| 16 | 293750002 | Tie Wrap 142 mm |
| 17 | 705001548 | Console Support |
| 18 | 705002082 | Upper Console |
| 19 | 705002704 | LH MIRROR CAP - Call your local BRP dealership |
| 19 | 705002705 | RH MIRROR CAP - Call your local BRP dealership |
| 21 | 705002712 | UPPER CONSOLE DEFLECTOR - Call your local BRP dealership |
| 22 | 219800077 | WINDSHIELD - Call your local BRP dealership |
| 23 | 705004795 | BLACK UPPER HEADLAMP - Call your local BRP dealership |
| 24 | 705003207 | Plastic Washer |
| 25 | 705005882 | Lower Console |
| 26 | 705007496 | MOULDING - Call your local BRP dealership |
| 27 | 705007642 | Center Panel This part replaces 705007646. |
