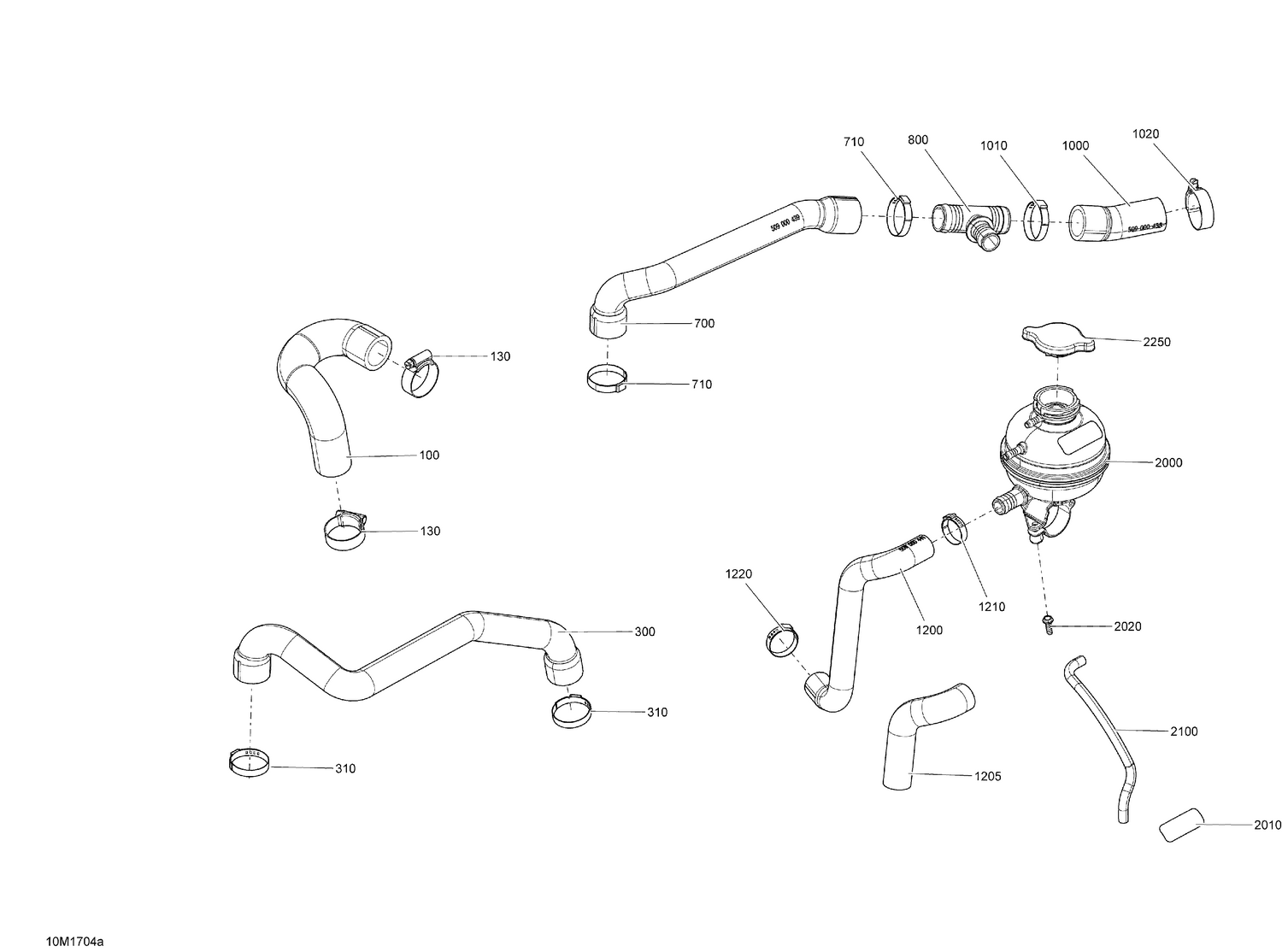

01- Cooling System - 1200 4-TEC Package Adrenaline, X
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 509000440 | Outlet Hose |
| 130 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 300 | 509000370 | RADIATOR HOSE - Call your local BRP dealership |
| 310 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 700 | 509000439 | Radiator Hose |
| 710 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 800 | 509000372 | T-Fitting |
| 1000 | 509000438 | Radiator Hose |
| 1010 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 1020 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509000441 | Hose |
| 1205 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 293650099 | Crimp Clamp |
| 2000 | 509000937 | Réservoir Antigel |
| 2010 | 516005904 | Warning Decal |
| 2020 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
