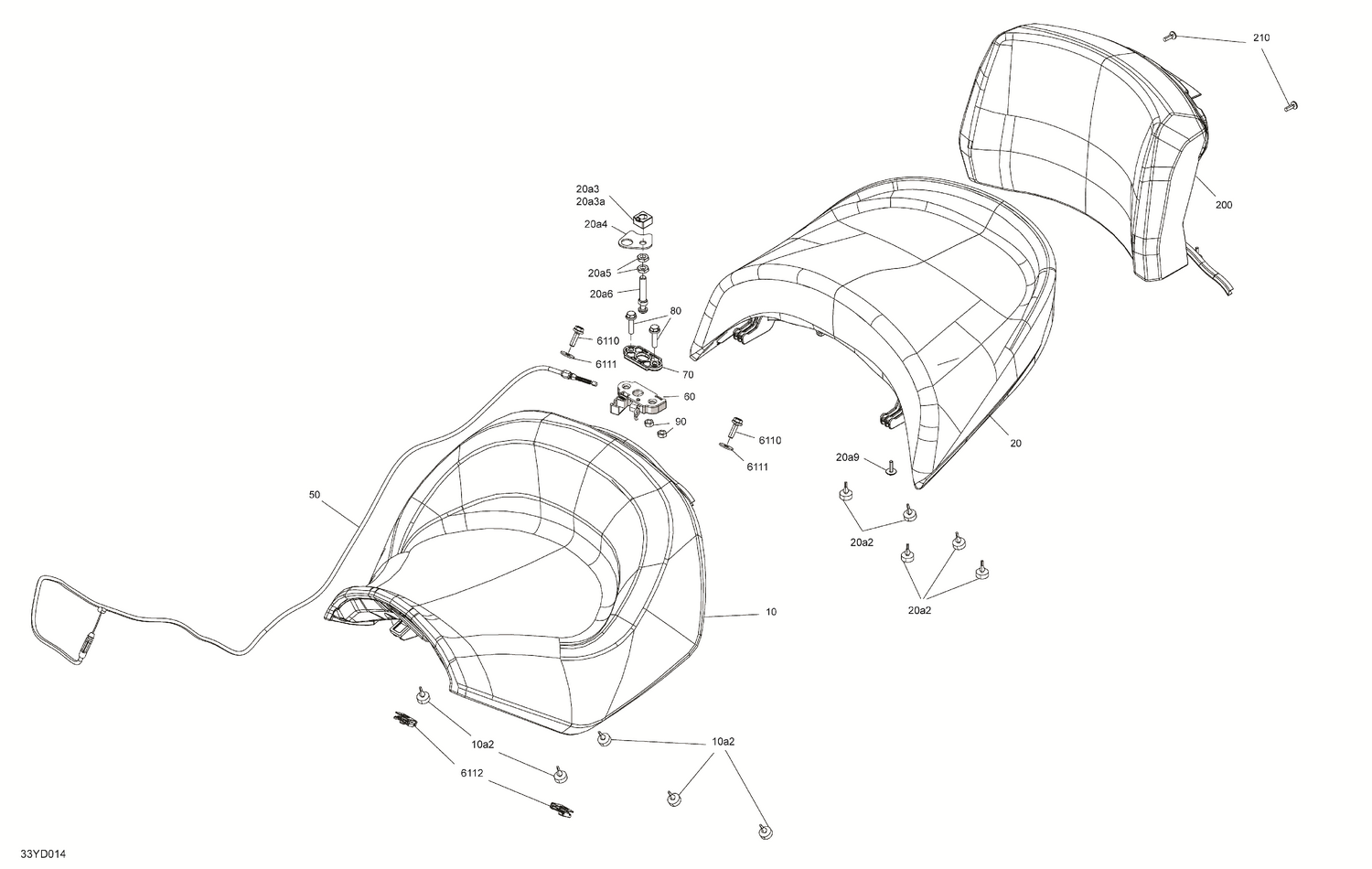

07- Body - Seat
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10a2 | 708000759 | Rubber Stopper |
| 20a2 | 708000759 | Rubber Stopper |
| 20a3a | 232581200 | Hex. Elastic Nut M8 Brass |
| 20a4 | 708001909 | Washer |
| 20a5 | 232180600 | Hex. Jam Nut M8 |
| 20a6 | 708001741 | Lug |
| 20a9 | 250000725 | Screw M4 X 16 |
| 50 | 708001743 | Seat Cable |
| 60 | 705018738 | Latch |
| 70 | 708001771 | Brace |
| 80 | 207562556 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 90 | 232061414 | Hex. Nut M6 |
| 200 | 708304167 | Passenger Backrest Ass'y |
| 210 | 250000720 | Torx Screw K50 X 16 |
| 6110 | 207662044 | Hex. Flange Screw M6 X 20 |
| 6111 | 250200082 | Flat Washer |
