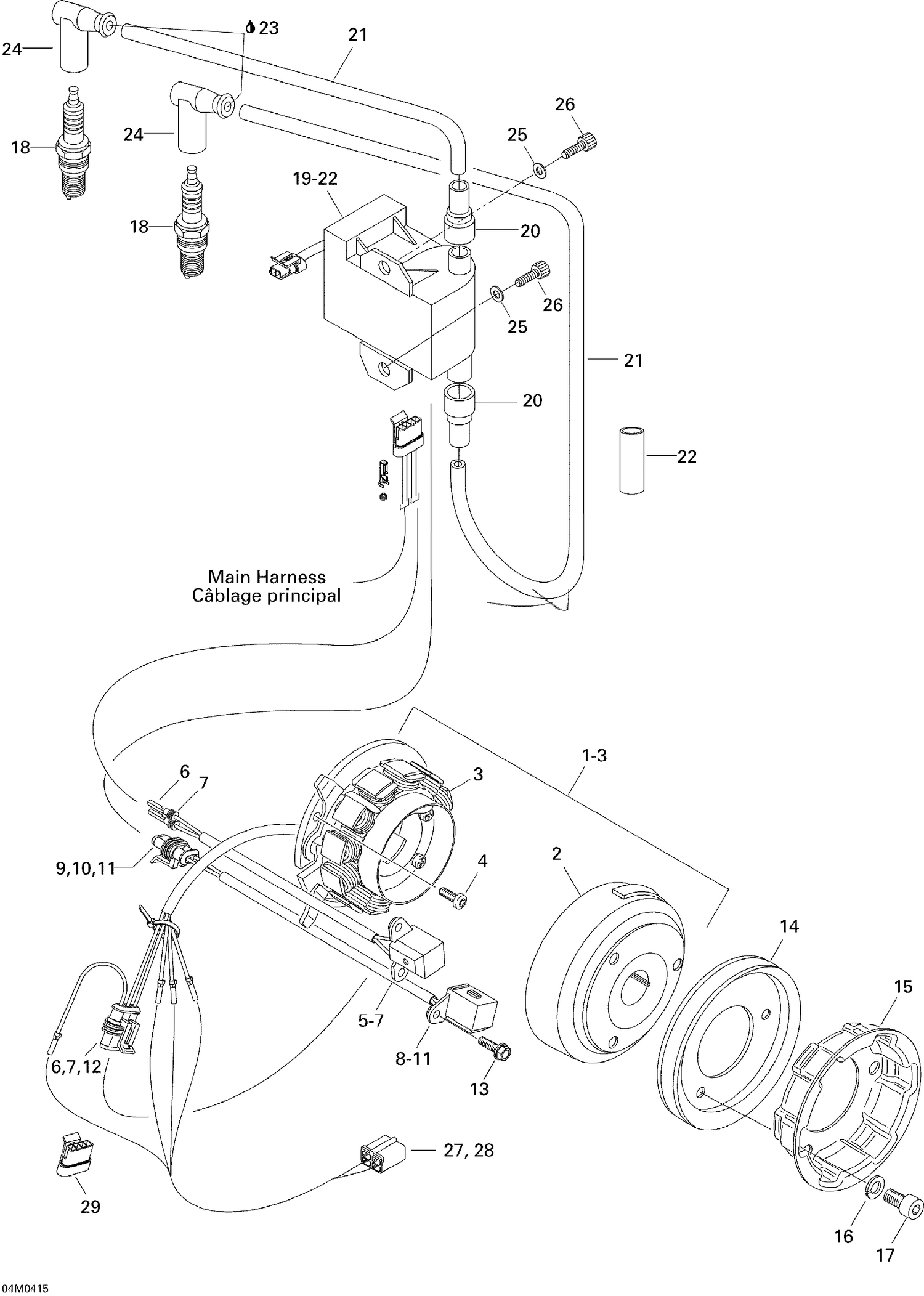

03- Magneto (552)
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420889376 | Flywheel This part replaces 420889375. |
| 3 | 420889369 | Stator Plate A This part replaces 420889365. |
| 4 | 420641521 | Screw |
| 6 | 278001014 | Female Terminal |
| 7 | 278001013 | Wire Seal |
| 9 | 409209500 | Female Housing, 2 Circuits |
| 10 | 278001014 | Female Terminal |
| 11 | 278001013 | Wire Seal |
| 12 | 409209600 | Female Housing, 3 Circuits |
| 13 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 14 | 420980486 | V-Belt Pulley |
| 15 | 420852414 | Rope Sheave |
| 16 | 420845311 | Lock Washer |
| 17 | 420440852 | Torx Flange Screw M8 X 16 |
| 18 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 20 | 515174900 | PROTECTION CAP - Call your local BRP dealership |
| 21 | 278002198 | SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 22 | 540806051 | Protection Hose |
| 23 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 24 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 25 | 234061410 | Flat Washer 6 mm |
| 26 | M40377 | Screw |
| 27 | 278001473 | Female Terminal Housing, 4 Circuits |
| 28 | 278001474 | Female Lock, 4 Circuits |
