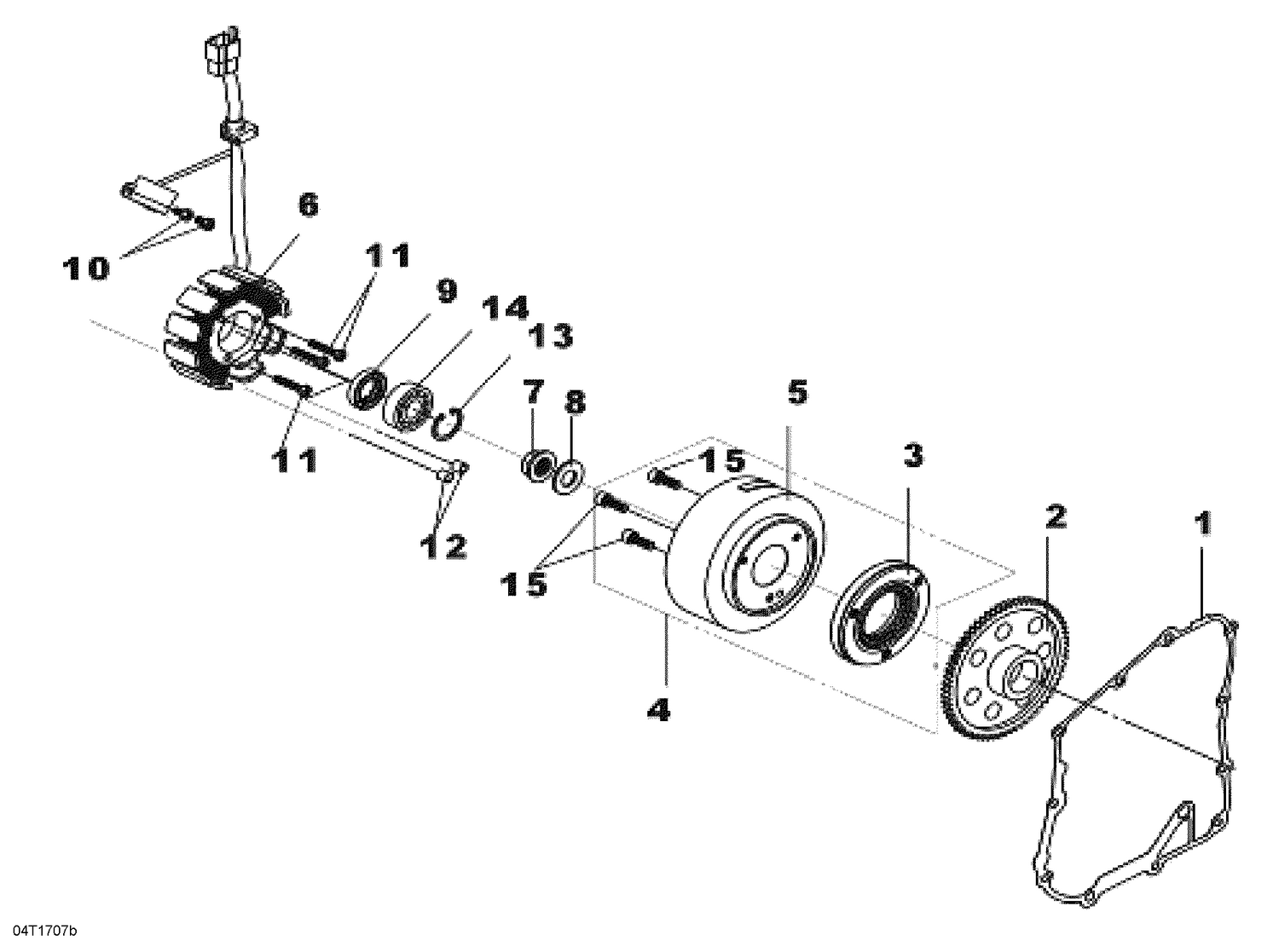

03- Magneto
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S11394RB1003 | Cover Gasket This part replaces S11394RB1000. |
| 2 | S28110HMA000 | Starter Wheel |
| 3 | S2812AHMA000 | One Way Clutch |
| 4 | S3110ARB1010 | Generator Flywheel This part replaces S3110ARB1000. |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | S31120RCA000 | Stator Ass'y |
| 7 | S90201RFS000 | Flanged Nut 14 mm |
| 8 | S90401KJ9000 | Thrust Washer |
| 9 | S91202HMA000 | Oil Seal |
| 10 | S9210105012 | Hex. Screw M5 X 12 |
| 11 | 207644044 | Hex. Flange Screw M6 X 40 |
| 12 | S9430108140 | Dowel Pin |
| 13 | S9452032000 | Circlip |
| 14 | S961406201310 | Ball Bearing |
