Home / BRP / EVINRUDE / 1993 / 250 / 01- 3D Rave

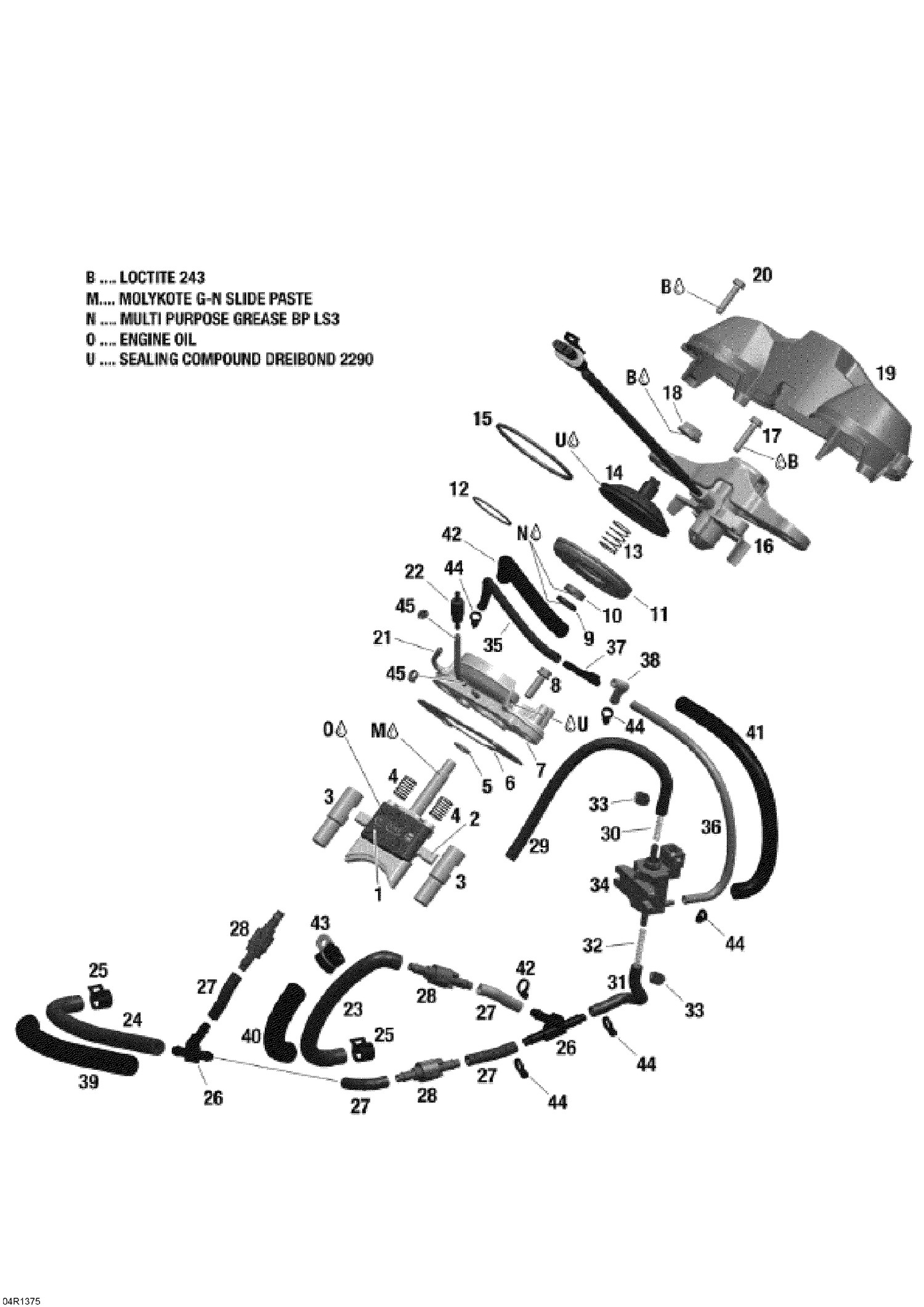

01- 3D Rave

01- 3D Rave

Parts (45)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
M Not Available As Spare Part - Molykote G-N, 50g
N Not Available As Spare Part - Multipurpose Grease BP LS3
O Not Available As Spare Part - Engine Oil
1 420854980 Exhaust Valve, Upper
2 420854974 Exhaust Valve, Lower
3 420854990 Exhaust Valve
4 420238558 Spring This part replaces 420238556.
7 420854888 Valve Housing
8 420440207 Torx Flange Screw M6 X 20
11 420260725 Bellows
12 420838255 Hose Spring
13 420238557 Spring
14 420854442 Valve Cover
15 420939286 Hose Spring This part replaces 420939285.
16 420854089 Position Sensor This part replaces 420854088.
17 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
18 420942190 Nut M12 X 1.5
19 420910821 Cover This part replaces 420910820.
20 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
21 219704404 Oil Hose 1500Mm Long
22 420956515 Check Valve Ass’y
23 420460782 MOLDED HOSE - Call your local BRP dealership
24 420460782 MOLDED HOSE - Call your local BRP dealership
25 420853511 Clamp
26 293710059 Y-Fitting
27 420460851 HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership
28 420660543 Check Valve
29 219704410 Polyurethane Hose 10000Mm Long
30 420939974 RAVE SPRING - Call your local BRP dealership
31 420460852 HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership
32 420939974 RAVE SPRING - Call your local BRP dealership
33 420853658 Gear Clamp
34 270600005 Solenoid Valve
35 420660571 High Pressure Air Hose, 180 mm
36 420660575 HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership
37 293710068 T-Fitting
38 420660572 HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership
39 219704400 Was 409901800 Tubing (13 mm)
40 219704400 Was 409901800 Tubing (13 mm)
41 219704407 Tubing 10 MM 1000MM Long
42 219704407 Tubing 10 MM 1000MM Long
43 420851250 Clamp
44 293750001 Tie Wrap 94 mm
45 420851508 Clamp
