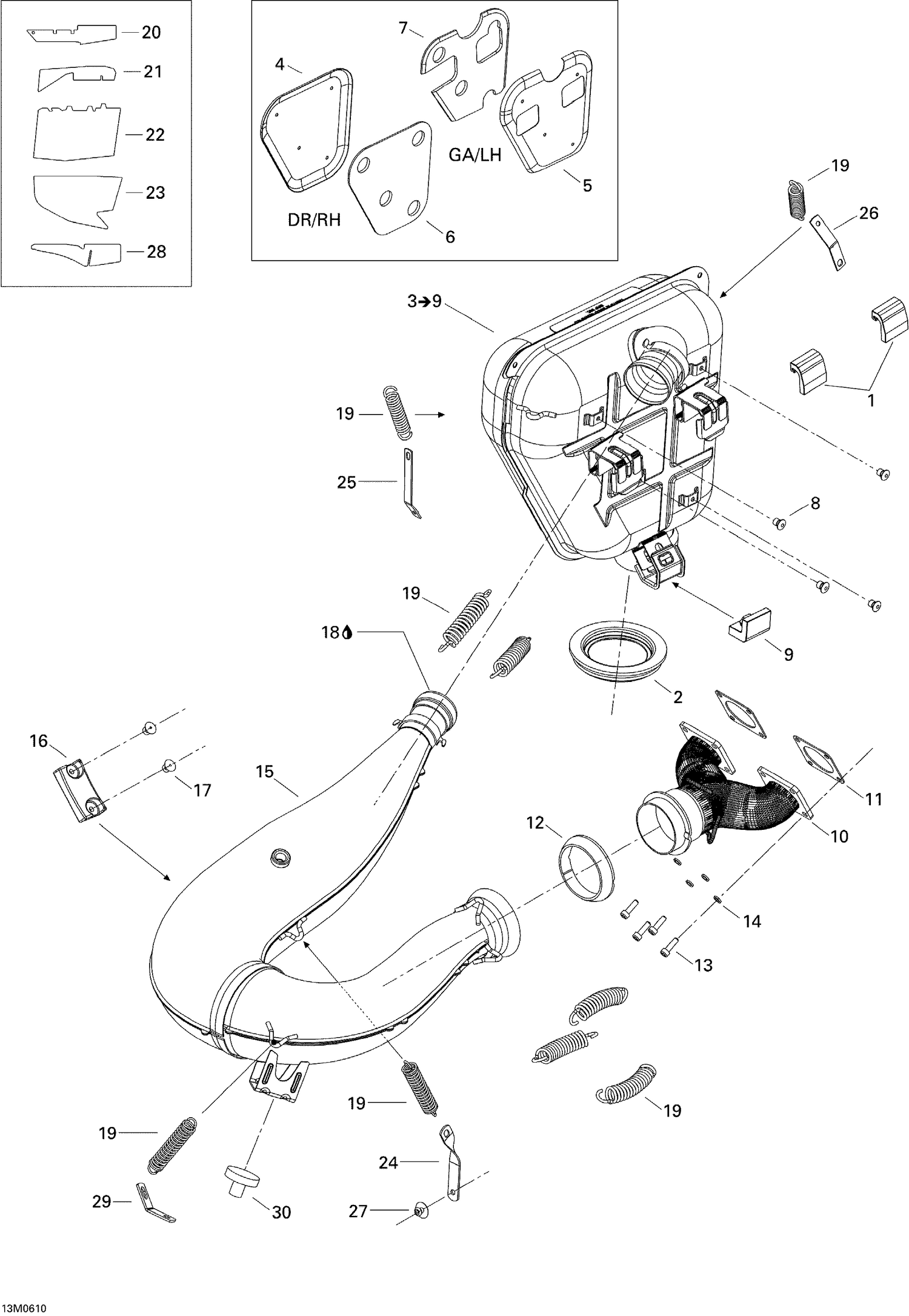

| Ref | Part Number | Description |
|---|
| 1 |
514053372 |
UPPER STOPPER - Call your local BRP dealership |
| 2 |
514053394 |
Exhaust Grommet |
| 4 |
514053139 |
RH HEAT SHIELD - Call your local BRP dealership |
| 5 |
514053883 |
LH Heat Shield |
| 6 |
514053141 |
RH INSULATING WOOL - Call your local BRP dealership |
| 7 |
514053884 |
LH INSULATING WOOL - Call your local BRP dealership |
| 8 |
390910000 |
Pop Rivet 3/16” |
| 9 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 10 |
420973557 |
MANIFOLD - Call your local BRP dealership |
| 11 |
420850552 |
Gasket |
| 12 |
514053487 |
Exhaust Gasket |
| 13 |
250001077 |
Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047. |
| 14 |
514053953 |
Washer |
| 15 |
514054193 |
Calibrated Tube |
| 16 |
514053352 |
BUMPER - Call your local BRP dealership |
| 17 |
293150103 |
Pop Rivet 3/16" |
| 18 |
293800090 |
Sealant, Loctite, 80 ml |
| 19 |
415107100 |
Spring |
| 20 |
514053702 |
REFLECTION SHEET - Call your local BRP dealership |
| 21 |
514053622 |
Reflective Sheet |
| 22 |
514053954 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 23 |
514053562 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 24 |
514053955 |
SPRING BRACKET - Call your local BRP dealership |
| 25 |
514053393 |
Spring Bracket |
| 26 |
514053436 |
Spring Bracket |
| 27 |
293150103 |
Pop Rivet 3/16" |
| 28 |
514053673 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 29 |
514054522 |
Spring Bracket This part replaces 514034000. |
