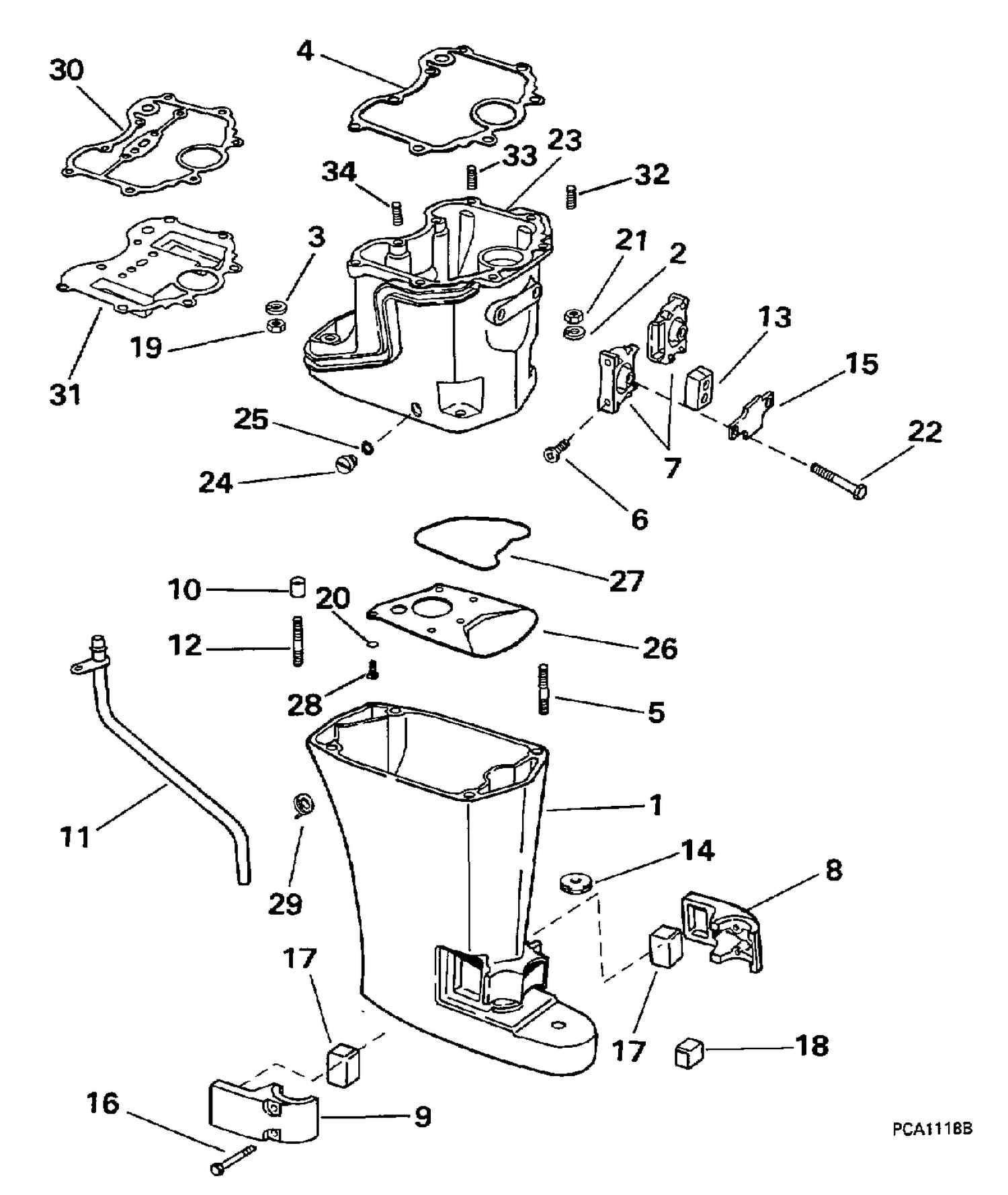

| Ref | Part Number | Description |
|---|
| 1 |
0446140 |
EXHAUST HOUSING ASSY. |
| 2 |
0446078 |
WASHER, Exhaust tube |
| 3 |
0446129 |
RONDELLE, écrou, carter d'huile vers bloc-cylindres |
| 4 |
0446132 |
GASKET, Oil sump to oil pan |
| 5 |
0446282 |
STUD, Oil sump to exhaust housing |
| 6 |
0319545 |
VIS, supports de montage supérieurs vers support de direction |
| 7 |
0436906 |
MOUNT ASSY., Upper |
| 8 |
0329021 |
MOUNT BRACKET, Lower port |
| 9 |
0329020 |
MOUNT BRACKET, Lower, stbd |
| 11 |
0445026 |
WATER TUBE, 15 in. |
| 11 |
0445080 |
WATER TUBE, 20 in. |
| 11 |
0445081 |
WATER TUBE |
| 12 |
0446143 |
STUD, Oil sump to exhaust housing |
| 13 |
0446317 |
THRUST MOUNT, Upper |
| 14 |
0319229 |
GROMMET, Exh, hsg, to shift rod |
| 15 |
0446381 |
PLATE, Upper mounts |
| 16 |
0319042 |
SCREW BRACKET AND CLAMPSCREW ASSY., Port |
| 17 |
0318997 |
LATERAL MOUNT, Lower |
| 18 |
0329046 |
THRUST MOUNT |
| 19 |
0446115 |
NUT, Carburetor mounting |
| 20 |
0446137 |
RONDELLE, vis, déflecteur |
| 21 |
0446077 |
NUT, Oil sump to exhaust housing |
| 22 |
0305652 |
VIS, manette des gaz |
| 23 |
0446126 |
OIL SUMP |
| 26 |
0446134 |
DEFLECTOR, Oil sump |
| 27 |
0446135 |
SEAL, Deflector |
| 28 |
0446136 |
SCREW, Deflector to oil sump |
| 29 |
0446315 |
GROMMET, Exhaust |
| 30 |
0446133 |
GASKET, Pan to block |
| 31 |
0446130 |
OIL PAN |
| 32 |
0446116 |
STUD, Intake manifold |
| 33 |
0446122 |
STUD, Intake manifold |
