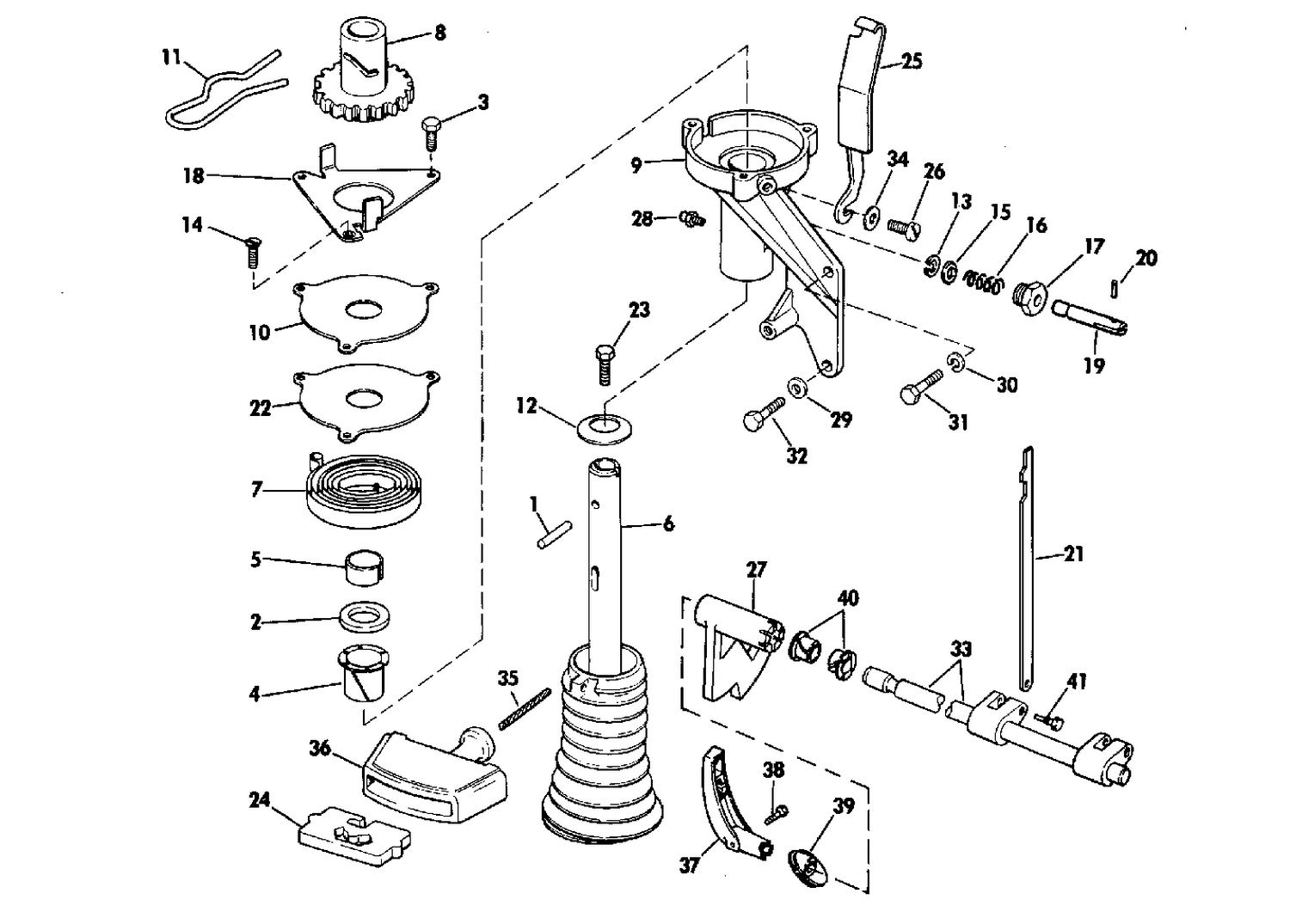

| Ref | Part Number | Description |
|---|
| 1 |
0307949 |
DRIVE PIN, Propeller |
| 2 |
0322834 |
THRUST WASHER, Starter |
| 3 |
0317602 |
SCREW, Cover to bracket |
| 4 |
0317382 |
BUSHING, Starter shaft |
| 5 |
0317391 |
RETAINER, Starter spring |
| 6 |
0389441 |
SPOOL |
| 7 |
0324330 |
SPRING, Starter rewind |
| 8 |
0322835 |
PINION, Starter |
| 9 |
0323931 |
BRACKET, Rewind starter |
| 10 |
0323833 |
COVER, Starting bracket |
| 11 |
0317531 |
SPRING, Pinion drag |
| 12 |
0318617 |
SPRING, Washer |
| 13 |
0319384 |
RETAINING RING, Pin |
| 15 |
0313722 |
WASHER, Lockout pin |
| 16 |
0319380 |
SPRING, Lockout pin |
| 17 |
0319382 |
RETAINER, Starter lockout |
| 18 |
0324329 |
LATCH, Spring pinion |
| 19 |
0319381 |
PIN, Starter lockout |
| 20 |
0306582 |
ROLL PIN |
| 21 |
0319386 |
CAM, Starter lockout |
| 22 |
0324328 |
LINER, Upper starter |
| 23 |
0329894 |
SCREW This part replaces 0302510. |
| 25 |
0318610 |
GUIDE, Starter rope |
| 26 |
0309905 |
SCEW,Cylinder head |
| 27 |
0325890 |
CAM, Shift interlock |
| 29 |
0306453 |
LOCKWASHER, Fuel pump |
| 31 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 33 |
0386373 |
LEVER AND SHIFT SHAFT ASSY |
| 34 |
0316676 |
LOCKWASHER, Ground |
| 36 |
0313154 |
HANDLE |
| 37 |
0317387 |
SHIFT LEER |
| 38 |
0307604 |
SCREW |
| 39 |
0317405 |
GROMMET, Lever to cover |
| 40 |
0312708 |
BUSHING |
| 0389907 |
0389907 |
STARTER ASSEMBLY |
