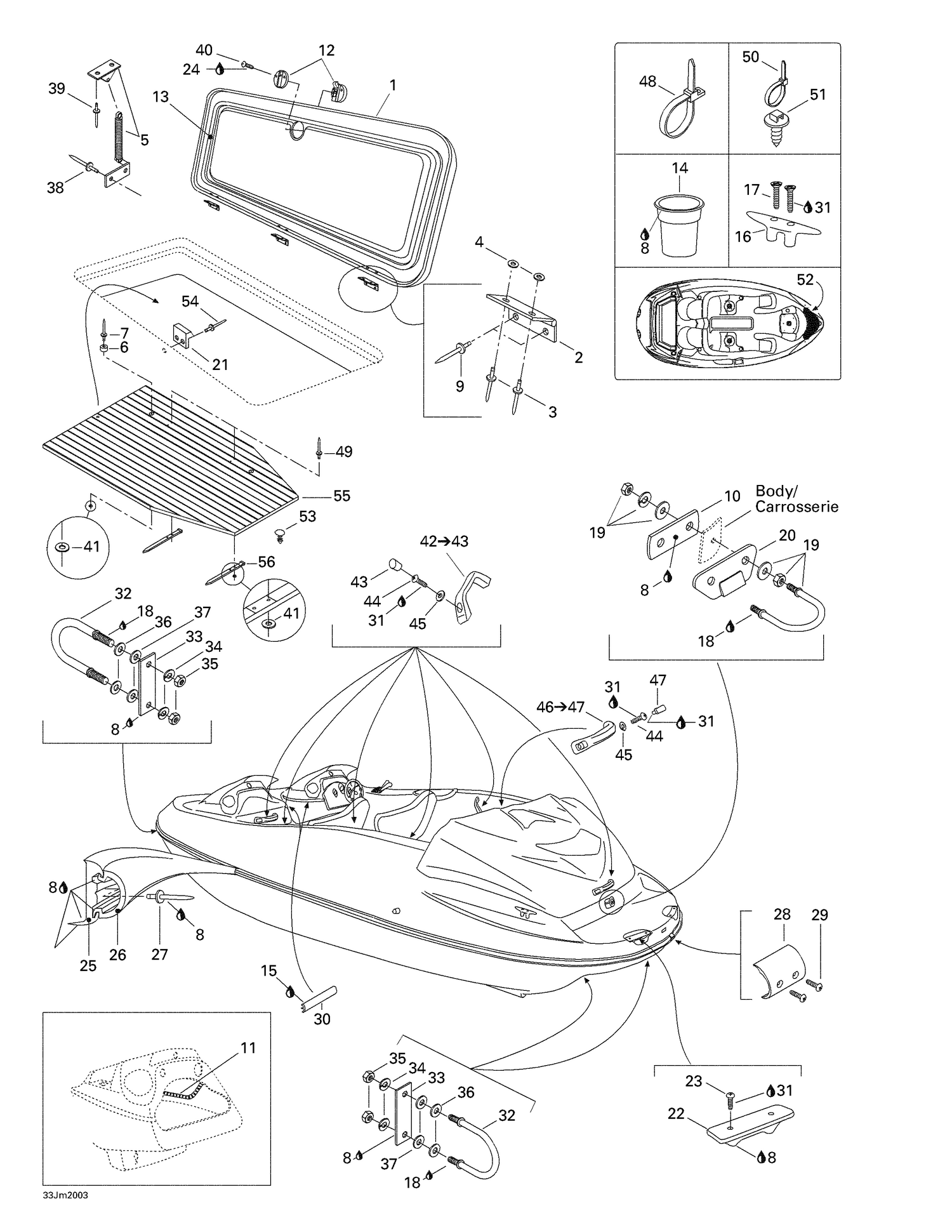

| Ref | Part Number | Description |
|---|
| 1 |
204070718 |
Center Cover |
| 2 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 3 |
293150037 |
Avdel Rivet 3/16" |
| 4 |
234051600 |
Flat Washer M5, Stainless |
| 5 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 6 |
293830043 |
Rubber Stopper |
| 7 |
293150039 |
Pop Rivet 3/16" |
| 8 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 9 |
293150037 |
Avdel Rivet 3/16" |
| 10 |
Not |
Available As Spare Part - Ski Tow Insert |
| 11 |
204550045 |
Slit Conduit, Meter |
| 12 |
204070063 |
VERROU, WHITE - Call your local BRP dealership |
| 13 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 14 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 16 |
204070100 |
CLEAT - Call your local BRP dealership |
| 17 |
205365560 |
Socket Head Screw M6 x 55 |
| 18 |
293800005 |
Loctite 271, 10 ml |
| 19 |
204070418 |
U-Bolt |
| 20 |
204070054 |
Ski Tow Plate, Black |
| 21 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 22 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 23 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 24 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 25 |
204050280 |
Bumper (Palma Blue) |
| 26 |
204050281 |
BUMPER TRIM (PALMA BLUE) - Call your local BRP dealership |
| 27 |
293150013 |
Pop Rivet 3/16" |
| 28 |
204050282 |
Bumper Cover (Palma Blue) |
| 29 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 30 |
291000778 |
Console Trim, White |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
292000063 |
U-CLAMP - Call your local BRP dealership |
| 33 |
291000307 |
RETAINING PLATE - Call your local BRP dealership |
| 34 |
234181601 |
Lock Washer 8 mm, Stainless |
| 35 |
232081600 |
Hex. Nut M8 |
| 36 |
293050001 |
Flat Washer M8.5 x 18 |
| 37 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 38 |
293150043 |
Pop Rivet 3/16" |
| 39 |
204000081 |
Pop Rivet 3/16" |
| 40 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 41 |
234052600 |
Flat Washer 5 mm, Stainless |
| 43 |
204070545 |
Snap Cap (Palma Blue) |
| 44 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 45 |
234061600 |
Stainless Flat Washer M6 |
| 47 |
204070545 |
Snap Cap (Palma Blue) |
| 48 |
293750017 |
Tie-Rap |
| 49 |
204000081 |
Pop Rivet 3/16" |
| 50 |
414115200 |
Tie-Rap 180 mm |
| 51 |
293730040 |
Mount Dart This part replaces 293730018. |
| 52 |
204070189 |
Carpet |
| 53 |
293730006 |
Black, Dart |
| 54 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 55 |
204060436 |
Ski Compartment Carpet |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
