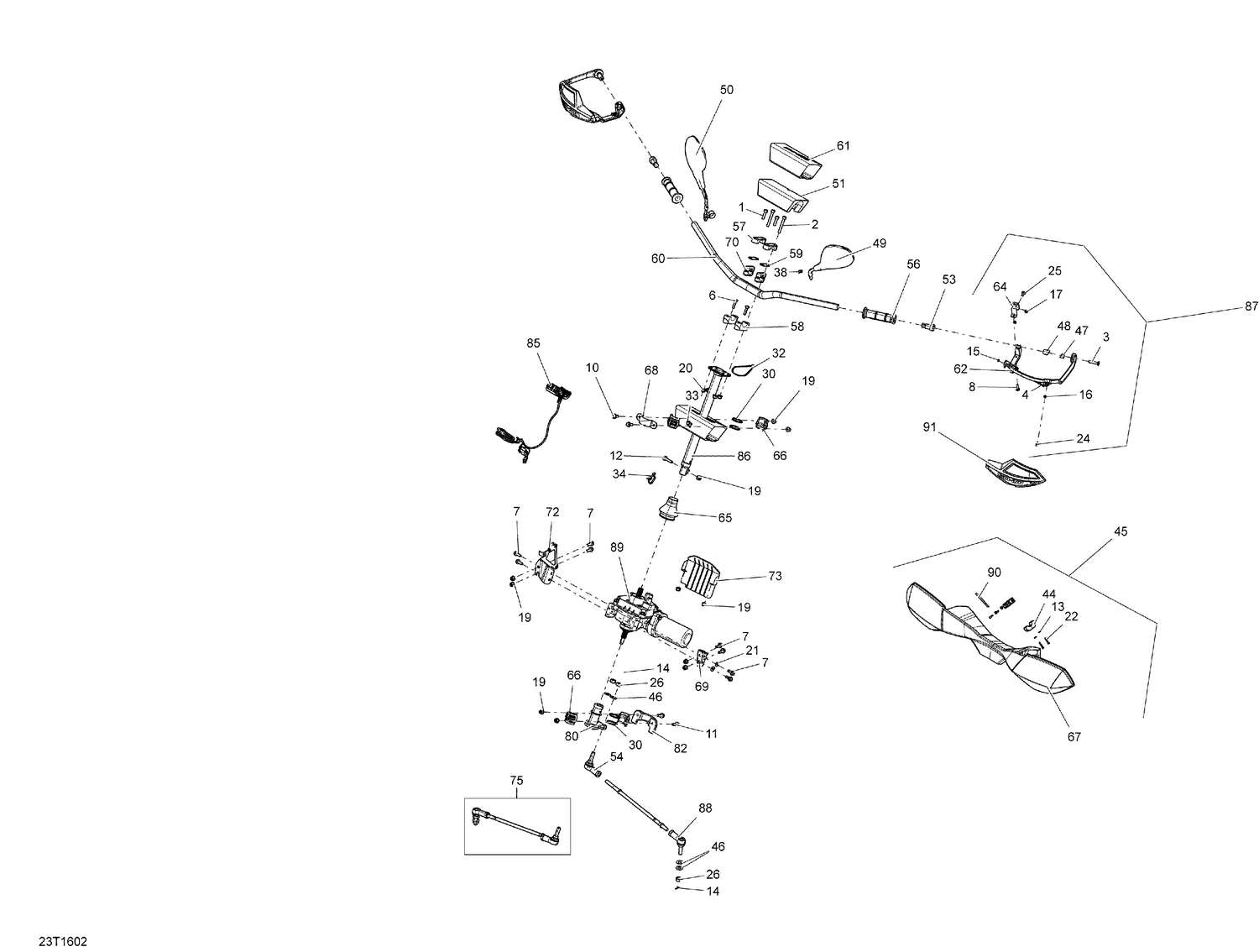

07- Steering - All Models
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 205384034 | Socket Head Screw |
| 4 | 205444086 | Socket Head Screw M4 X 40 |
| 7 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 8 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 207682044 | Hex. Flange Screw M8 X 20 |
| 11 | 207682544 | Hex. Flange Screw M8 X 25 |
| 14 | 211400013 | Cotter Pin |
| 17 | 232561600 | Hex. Elastic Stop Nut M6 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 233281416 | Hex. Elastic Flange Nut M8 |
| 26 | 250100099 | Nut M12 |
| 30 | 293300068 | O-Ring |
| 38 | 414115200 | Tie-Rap 180 mm |
| 46 | 706200281 | Hardened Washer This part replaces 250200086. |
| 54 | 709402302 | RH Ball Joint This part replaces 709400490. |
| 66 | 709400783 | Spherical Half Bushing |
| 68 | 709400827 | Upper Column Attachment |
| 70 | 709400919 | Steering Support |
| 72 | 709400994 | RH STEERING BRACKET - Call your local BRP dealership |
| 82 | 709401428 | Column Attachment |
| 88 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 91 | Not | Available As Spare Part - Black RH Hand Air Deflector |
