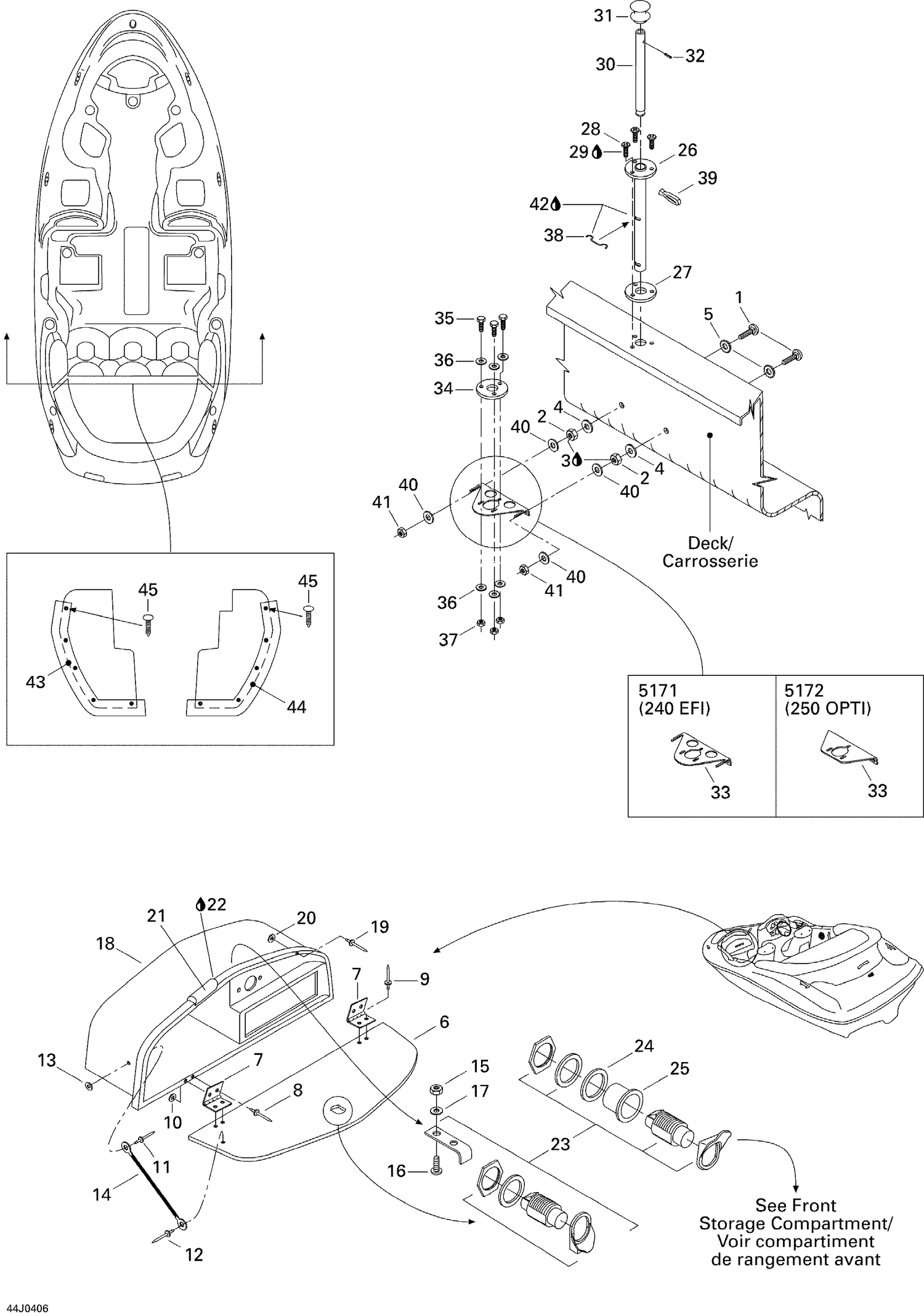

| Ref | Part Number | Description |
|---|
| 1 |
204000130 |
Elevator Bolt |
| 2 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 3 |
293800005 |
Loctite 271, 10 ml |
| 4 |
234062600 |
Flat Washer M6, Stainless |
| 5 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 6 |
204071891 |
Tray Door Ass'y |
| 7 |
204071462 |
HINGE - Call your local BRP dealership |
| 8 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 9 |
293150063 |
Pop Rivet 1/8” |
| 10 |
234032600 |
Flat Washer M3, Stainless |
| 11 |
293150008 |
Pop Rivet 3/16" |
| 12 |
293150043 |
Pop Rivet 3/16" |
| 13 |
234052600 |
Flat Washer 5 mm, Stainless |
| 14 |
204071498 |
RETAINER CABLE - Call your local BRP dealership |
| 15 |
232541600 |
Elastic Stop Nut M4 |
| 16 |
208641260 |
PHILLIPS SCREW M4 X 12 - Call your local BRP dealership |
| 17 |
234040600 |
Flat Washer 4 mm |
| 18 |
204070392 |
Glove Box |
| 19 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 20 |
234032600 |
Flat Washer M3, Stainless |
| 21 |
204070115 |
Neoprene, Meter |
| 23 |
204070122 |
LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership |
| 24 |
204620045 |
COMPENSATION GASKET - Call your local BRP dealership |
| 25 |
204620007 |
LATCH INSERT - Call your local BRP dealership |
| 26 |
291001057 |
FIXED TUBE - Call your local BRP dealership |
| 27 |
293830045 |
RUBBER WASHER - Call your local BRP dealership |
| 28 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 30 |
204072616 |
SKI SHAFT - Call your local BRP dealership This part replaces 291001058. |
| 31 |
293000004 |
SKI SHAFT CAP - Call your local BRP dealership |
| 32 |
211400004 |
ROLLED PIN M3 X 30 - Call your local BRP dealership |
| 34 |
291001060 |
RETAINER WASHER - Call your local BRP dealership |
| 35 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 36 |
234062600 |
Flat Washer M6, Stainless |
| 37 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 38 |
291001205 |
SPRING - Call your local BRP dealership |
| 39 |
570023800 |
Windshield Latch |
| 40 |
234062600 |
Flat Washer M6, Stainless |
| 41 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 42 |
293550010 |
Synthetic Grease, 400 G |
| 43 |
Not |
Available As Spare Part - Neoprene Seal (Port) |
| 44 |
Not |
Available As Spare Part - Neoprene Seal (Starboard) |
