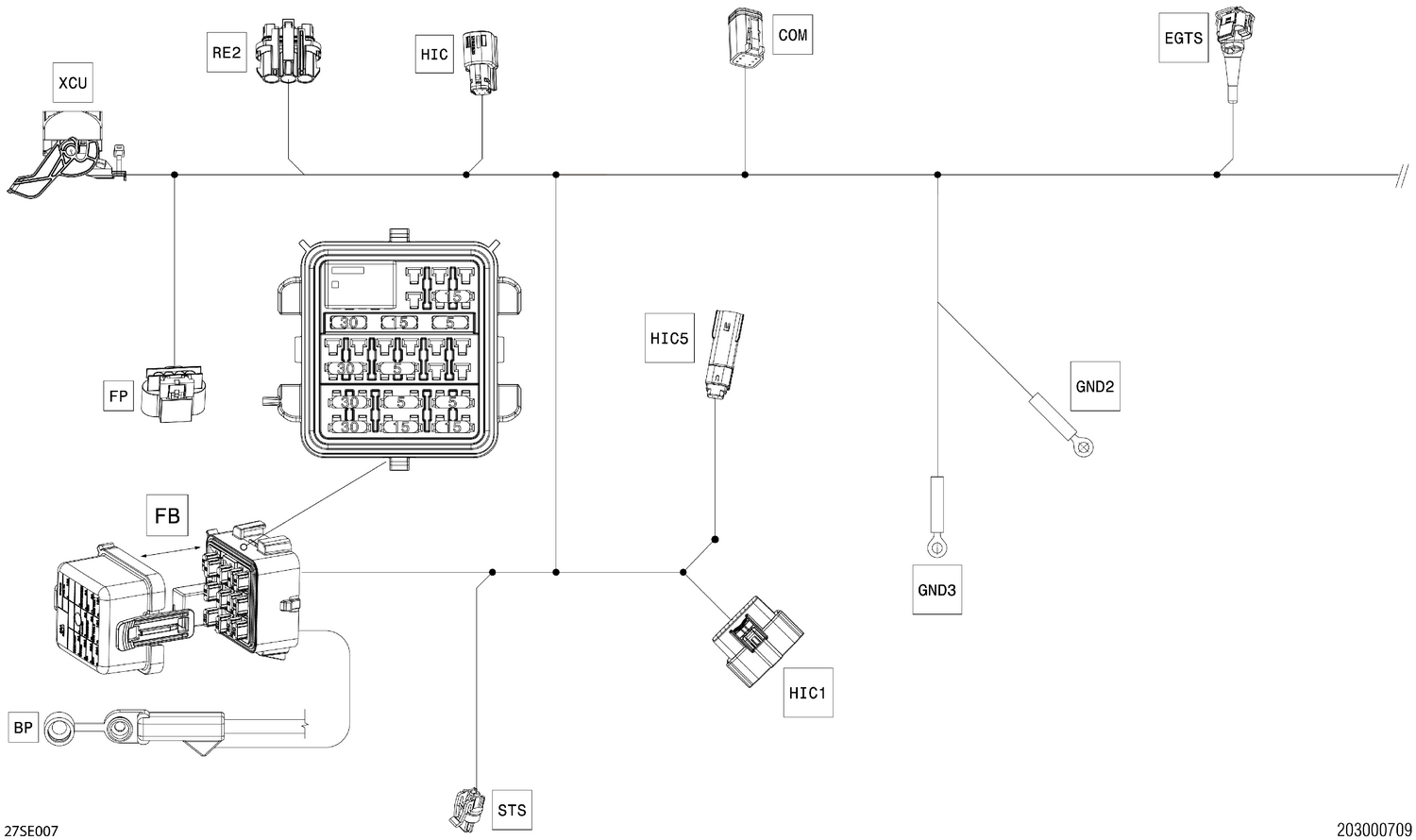

02- Electric - Main Harness - 278004459
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| BP | 278003715 | Battery Cable |
| COM | 710002705 | Lock |
| COM | 710002706 | Female Housing 6 Circuits |
| COM | 710005438 | Female Terminal |
| COM | 710005439 | Female Terminal |
| EGTS | 415128501 | Seal |
| EGTS | 710001136 | Housing |
| EGTS | 710001137 | Female Terminal |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 278002880 | Seal Plug |
| FB | 278003448 | Fuse Base Ass'y |
| FB | 278003828 | Relay 30 Amp |
| FB | 278003879 | Fuse Cover |
| FB | 515177177 | Female Terminal |
| FB | 710000048 | Wire Seal |
| FB | 710000742 | Little Fuse, 5 Amperes |
| FB | 710000745 | Little Fuse, 15 Ampere |
| FB | 710000747 | Little Fuse, 30 Amperes |
| FB | 710000918 | Female Terminal |
| FP | 278002185 | Male Housing, 4 Circuits |
| FP | 278002186 | Wire Seal |
| FP | 278002187 | Female Terminal |
| FP | 710001222 | Lock |
| GND2 | 278001392 | Open Barrel Terminal |
| GND3 | 278001392 | Open Barrel Terminal |
| HIC | 278003535 | Female Housing, 4 circuits |
| HIC | 515178018 | Female Terminal |
| HIC1 | 278002858 | Female Housing 20 Circuits |
| HIC1 | 278002860 | Sealing Cap |
| HIC1 | 515178014 | Female Terminal |
| HIC1 | 515178018 | Female Terminal |
| HIC5 | 515178013 | Male Terminal |
| RE2 | 278003685 | Seal |
| RE2 | 710000877 | Female Terminal |
| RE2 | 710000879 | Female Housing, 3 Circuits This part replaces 278003517. |
| RE2 | 710000881 | Seal |
| STS | 515177192 | Female Housing, 2 Circuits |
| STS | 710000925 | Terminal |
| STS | 710001152 | Lock |
| STS | 710001153 | Seal Wire |
| 1000 | 278004459 | Main Wiring Harness |
