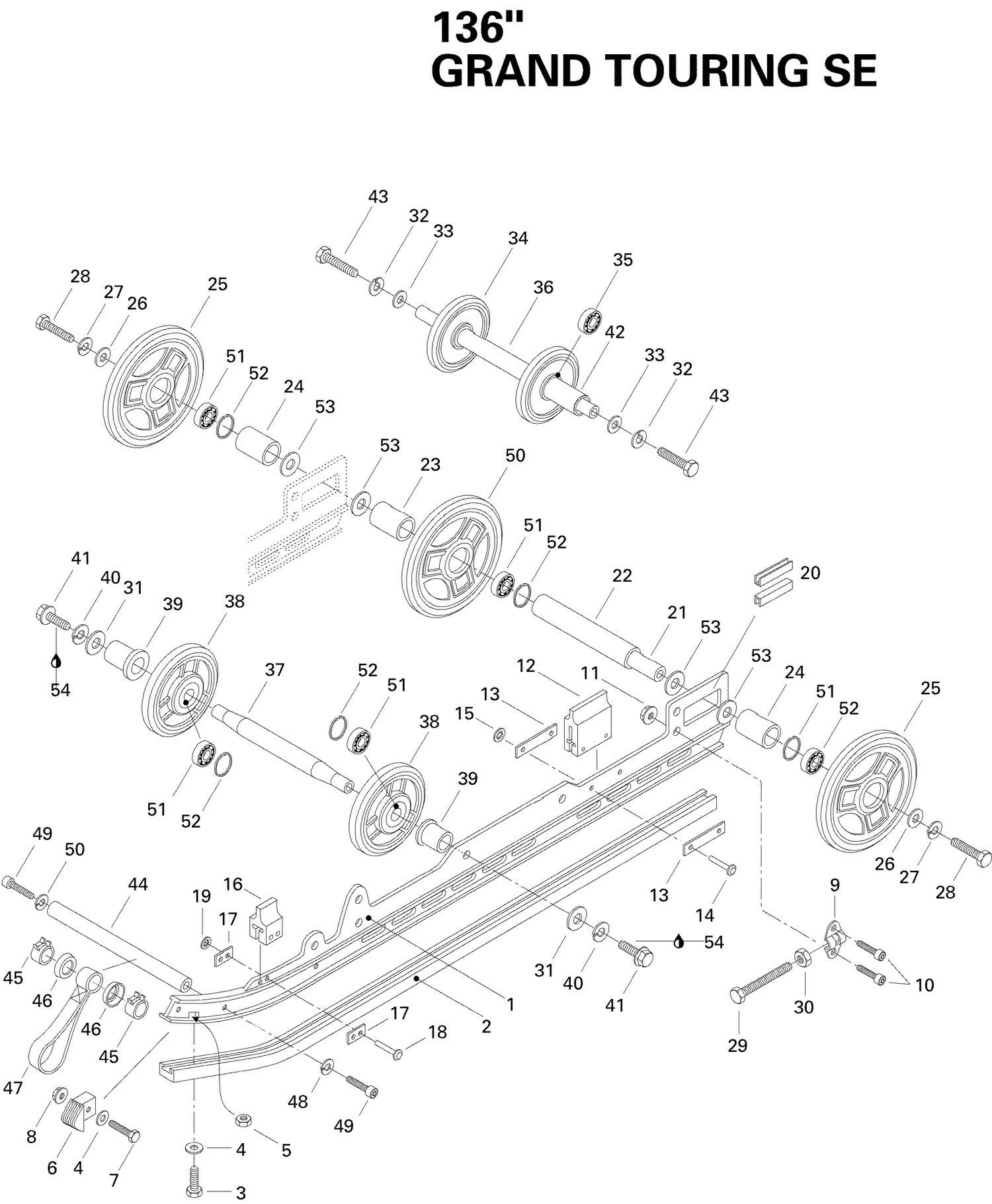

| Ref | Part Number | Description |
|---|
| 1 |
503164800 |
Runner |
| 2 |
560102000 |
Slider Shoe |
| 3 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 4 |
224061121 |
Flat Washer |
| 5 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 6 |
572028900 |
Runner Protector |
| 7 |
207063044 |
Hex. Screw M6 X 30 This part replaces 222063065. |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 9 |
503140100 |
Tensionner |
| 10 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 12 |
570047800 |
Rear Rubber Stopper |
| 13 |
503141300 |
Rear Rubber Stopper Protector |
| 14 |
390004800 |
RIVET-STEEL SOLID - Call your local BRP dealership |
| 15 |
389804300 |
Push Nut |
| 16 |
570047900 |
FRONT RUBBER STOPPER - Call your local BRP dealership |
| 17 |
503143000 |
Front Rubber Stopper Protector |
| 18 |
390907000 |
Steel Rivet |
| 19 |
389804300 |
Push Nut |
| 20 |
503125800 |
Protector |
| 21 |
503167900 |
Rear Axle This part replaces 503159600. |
| 22 |
503139500 |
Interior Spacer Long |
| 23 |
503139600 |
Interior Spacer Short |
| 24 |
503189809 |
Outer Spacer This part replaces 503139700. |
| 25 |
570045325 |
Bond Wheel (Ocean Green) |
| 26 |
503032900 |
Washer |
| 27 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 28 |
250000019 |
Hex. Screw With Nylon This part replaces 732601002. |
| 29 |
732601017 |
Hex. Screw M10 x 110 |
| 30 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 31 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 32 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 33 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 35 |
405404600 |
Ball Bearing |
| 36 |
503152000 |
Axle |
| 37 |
503140300 |
Center Axle |
| 38 |
503190797 |
Wheel 135 This part replaces 570045222. |
| 39 |
503140400 |
Spacer |
| 40 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 41 |
207103544 |
Hex. Screw M10 X 35 This part replaces 222003565. |
| 42 |
503152300 |
Spacer |
| 43 |
207083544 |
Hex. Screw M8 X 35 This part replaces 222083565. |
| 44 |
503140700 |
Axle |
| 45 |
414808200 |
Spring Clamp |
| 46 |
503146800 |
Washer |
| 47 |
503145500 |
Stopper Strap |
| 48 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 49 |
205003544 |
Socket Screw M10 X 35 This part replaces 222903565. |
| 50 |
570045322 |
Bond Wheel |
| 51 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 52 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 53 |
504108200 |
SHIM - Call your local BRP dealership |
