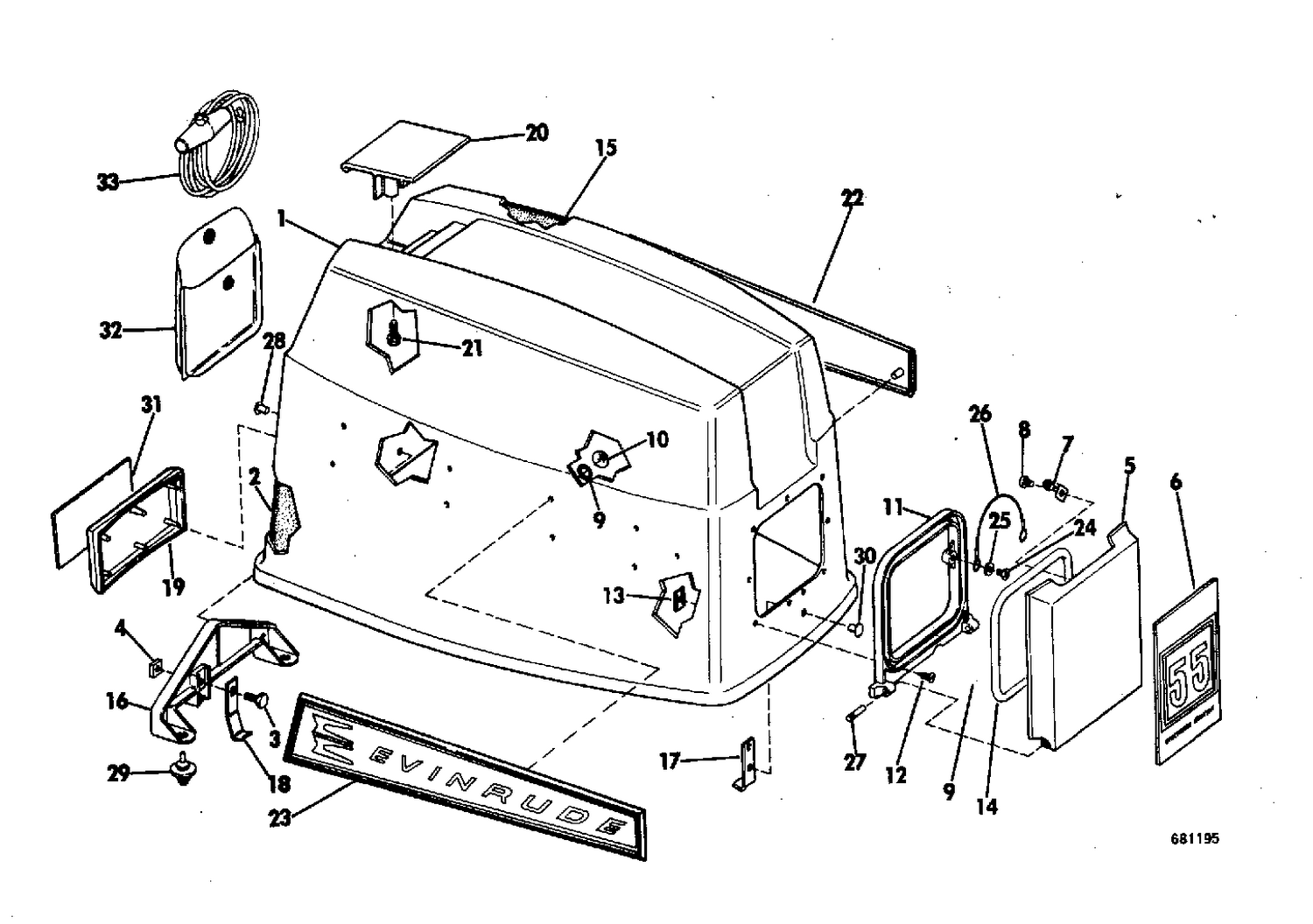

| Ref | Part Number | Description |
|---|
| 1 |
0279083 |
MOTOR COVER ASSEMBLY |
| 2 |
0206178 |
SOUND BLANKET, Side |
| 4 |
0303189 |
NUT |
| 5 |
0279115 |
FRONT DOOR ASSEMBLY |
| 6 |
0206297 |
PLATE, Front door |
| 7 |
0377318 |
ROLLER LATCH ASSY |
| 9 |
0314303 |
O RING |
| 11 |
0279032 |
DOOR FRAME ASSEMBLY |
| 14 |
0206143 |
SEAL, Frame to door |
| 15 |
0206179 |
SOUND BLANKET, Top |
| 17 |
0206127 |
HOOK, Cover, front |
| 19 |
0206296 |
APPLIQUE, Cover, rear |
| 20 |
0206023 |
TILT HANDLE |
| 21 |
0312299 |
VIS, serre-câble |
| 22 |
0206295 |
APPLIQUE, Cover, starboard |
| 23 |
0206294 |
APPLIQUE, Cover, port |
| 24 |
0307426 |
SCREW |
| 25 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 26 |
0379123 |
STRAP |
| 27 |
0310565 |
HINGE PIN |
| 28 |
0314135 |
RIVER, Locating bracket |
| 30 |
0206146 |
RIVET, Frame to hook |
| 31 |
0206293 |
PLATE, Applique rear |
| 32 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 33 |
0378347 |
CORDE DE LANCEUR |
| 0279121 |
0279121 |
DECAL SET |
