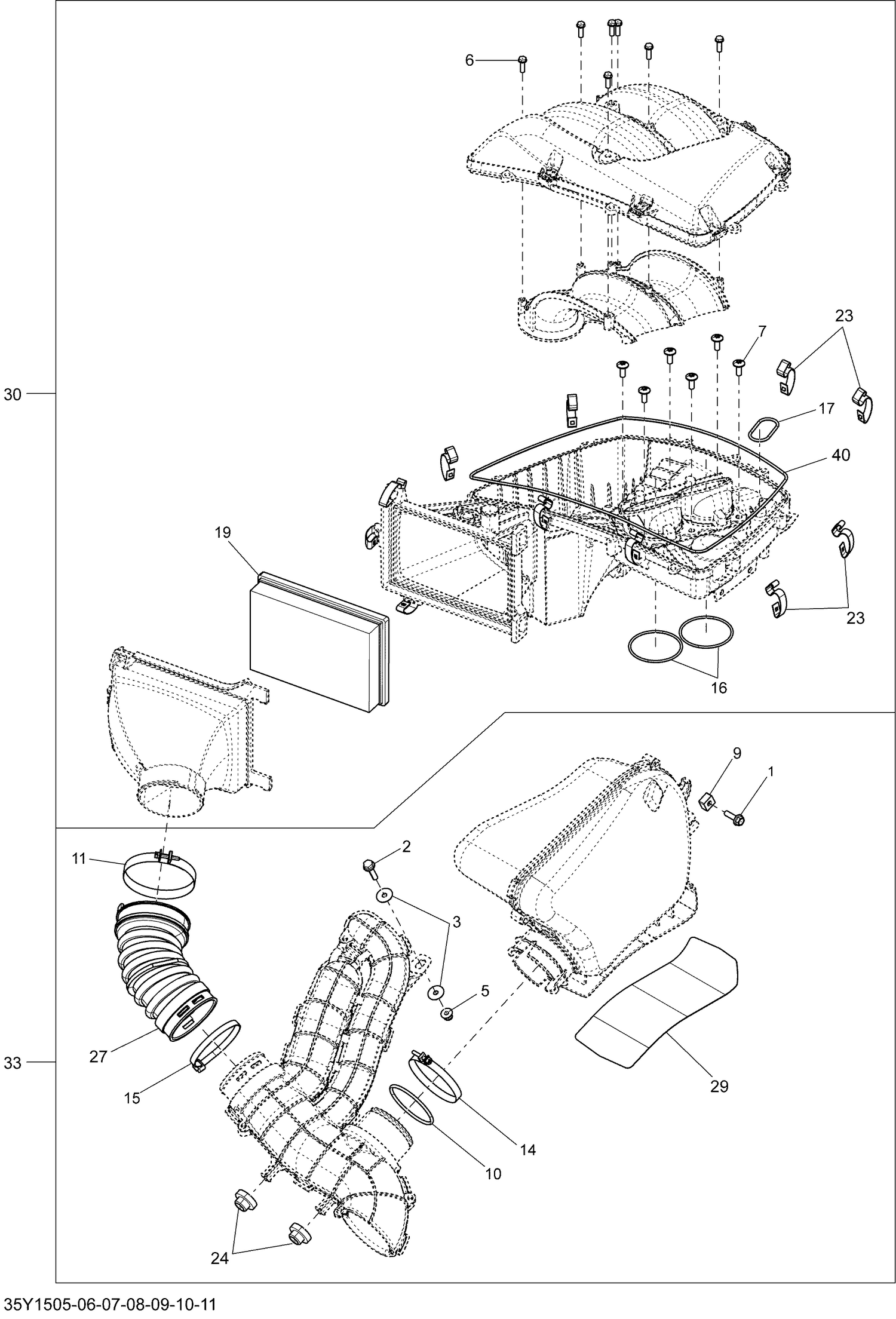

02- Air Intake _35Y1506
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 |
| 3 | 224060201 | Flat Washer |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 243141680 | Hex. Screw M4.8 X 1.8 |
| 7 | 250000717 | Torx Head Screw M6 X 16 |
| 9 | 269500725 | M6 Nut Housing Ass'y |
| 10 | 293300124 | O-Ring |
| 11 | 293650152 | Gemi Clamp |
| 14 | 508000346 | Gemi Clamp |
| 15 | 509000165 | Tie Rap |
| 16 | 707800198 | O RING - Call your local BRP dealership |
| 17 | 707800491 | GASKET - Call your local BRP dealership |
| 19 | 707800306 | Air Filter |
| 23 | 707800342 | Cover Retainer |
| 24 | 707800347 | Grommet |
| 27 | Not | Available As Spare Part - Adaptor |
| 29 | 707800464 | HEAT SHIELD FOIL - Call your local BRP dealership |
| 30 | 707800299 | AIR INTAKE ASS'Y - Call your local BRP dealership This part replaces 707800466. |
| 33 | 707800472 | RESONATOR A'SSY - Call your local BRP dealership |
