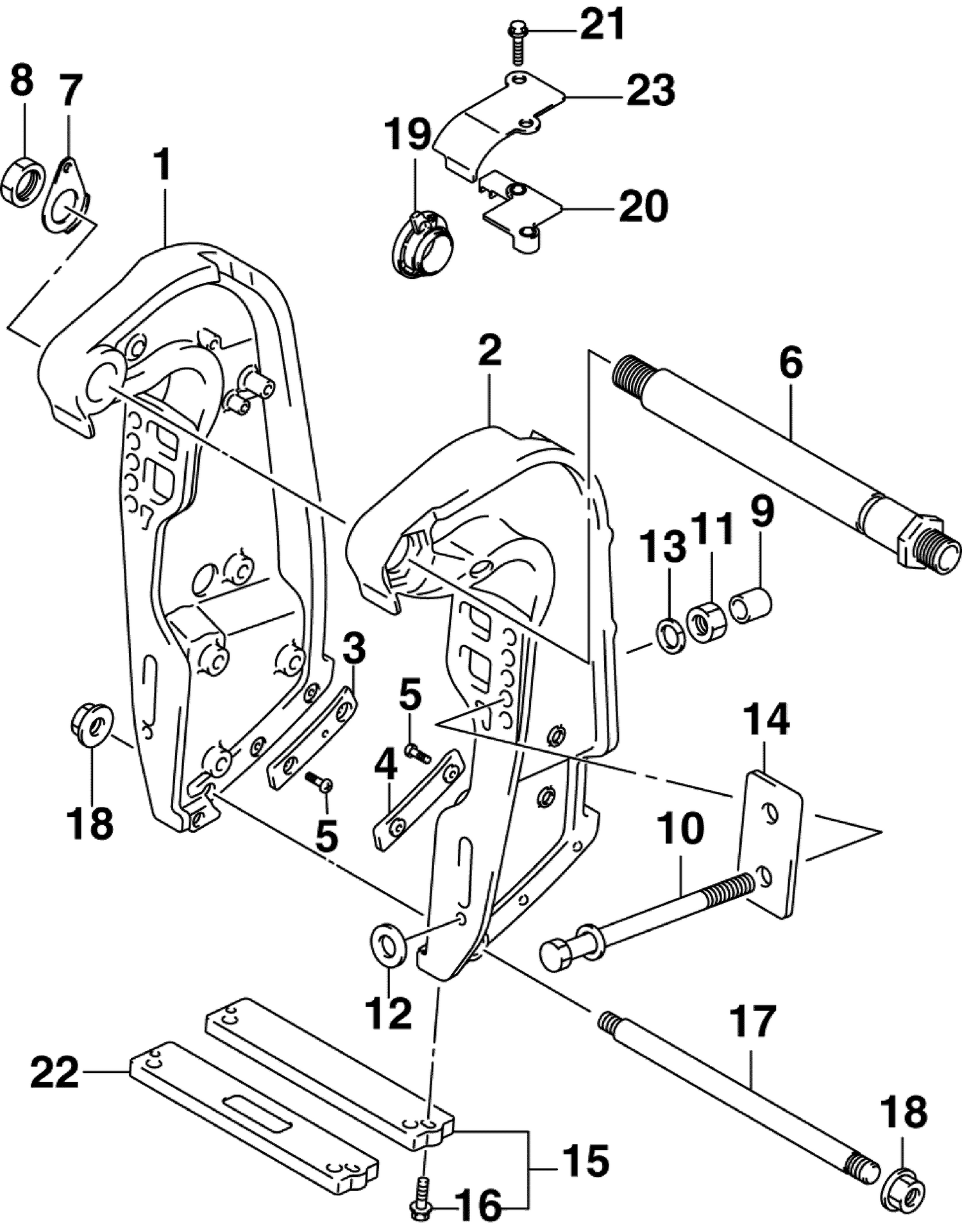

| Ref | Part Number | Description |
|---|
| 1 |
5035116 |
BRACKET, CLAMP STBD (BLACK) This part replaces 5036639. |
| 2 |
5035117 |
BRACKET, CLAMP PORT (BLACK) This part replaces 5036640. |
| 3 |
5035709 |
PLATE, CLAMP BRKT LOWER STBD |
| 4 |
5035711 |
PLATE, CLAMP BRKT LOWER PORT |
| 5 |
5030409 |
SCREW |
| 6 |
5036641 |
SHAFT, CLAMP BRKT |
| 7 |
5035119 |
WASHER |
| 9 |
5035622 |
CAP, TRANSOM BOLT |
| 10 |
5034777 |
BOLT, TRANSOM |
| 11 |
5034791 |
NUT, TRANSOM BOLT |
| 12 |
5035624 |
WASHER, TRANSOM (13.2X26X3) |
| 13 |
5035623 |
WASHER, TRANSOM (13.2X26X3) |
| 14 |
5035120 |
PLATE, TRANSOM |
| 15 |
5030907 |
ANODE |
| 17 |
5030855 |
PIN, Tilt lock |
| 18 |
5030426 |
NUT |
| 19 |
5034523 |
CAM, TILT LIMIT |
| 20 |
5034524 |
HOLDER |
| 21 |
5036600 |
BOLT This part replaces 5036628. |
| 22 |
5034522 |
ANODE |
