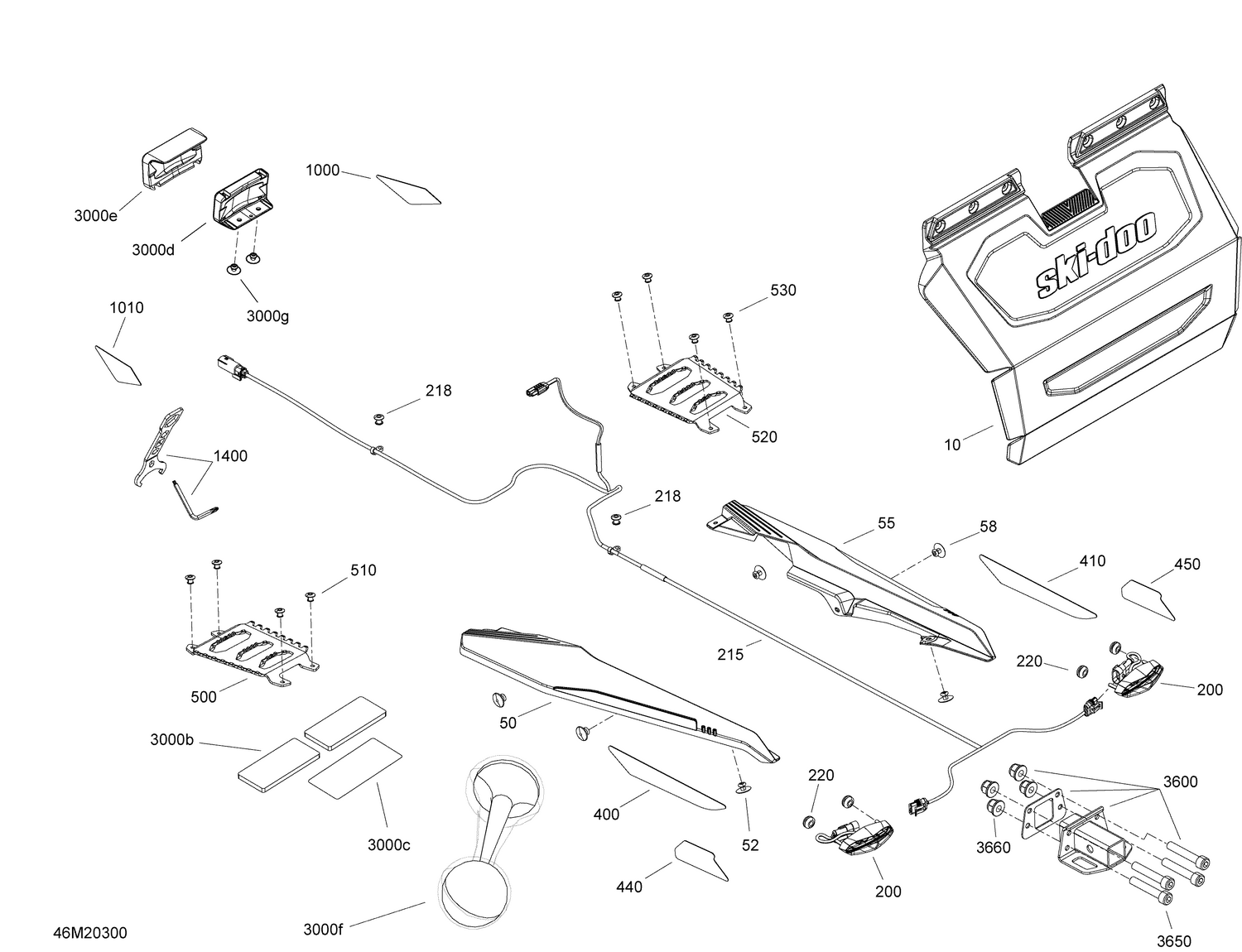

10- Utilities
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520003648 | Short Snow Guard This part replaces 520001712. |
| 200 | 520002636 | Tail Light This part replaces 520001738. |
| 215 | 515178633 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 220 | 293720101 | Grommet |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 500 | 520002896 | Deep Black, Passenger Footrest This part replaces 520001782. |
| 510 | 293150102 | Rivet 3/16" |
| 520 | 520002896 | Deep Black, Passenger Footrest This part replaces 520001782. |
| 530 | 293150102 | Rivet 3/16" |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1400 | 520001767 | Tool Kit |
| 3000b | 520000271 | Amber, Reflector |
| 3000c | 415037900 | White, Reflector |
| 3000e | 520000871 | Deep Black, Reflector Support |
| 3000f | 549011291 | Horn |
| 3000g | 293150103 | Pop Rivet 3/16" |
| 3650 | 250001086 | Socket Head Screw M8 x 45 |
