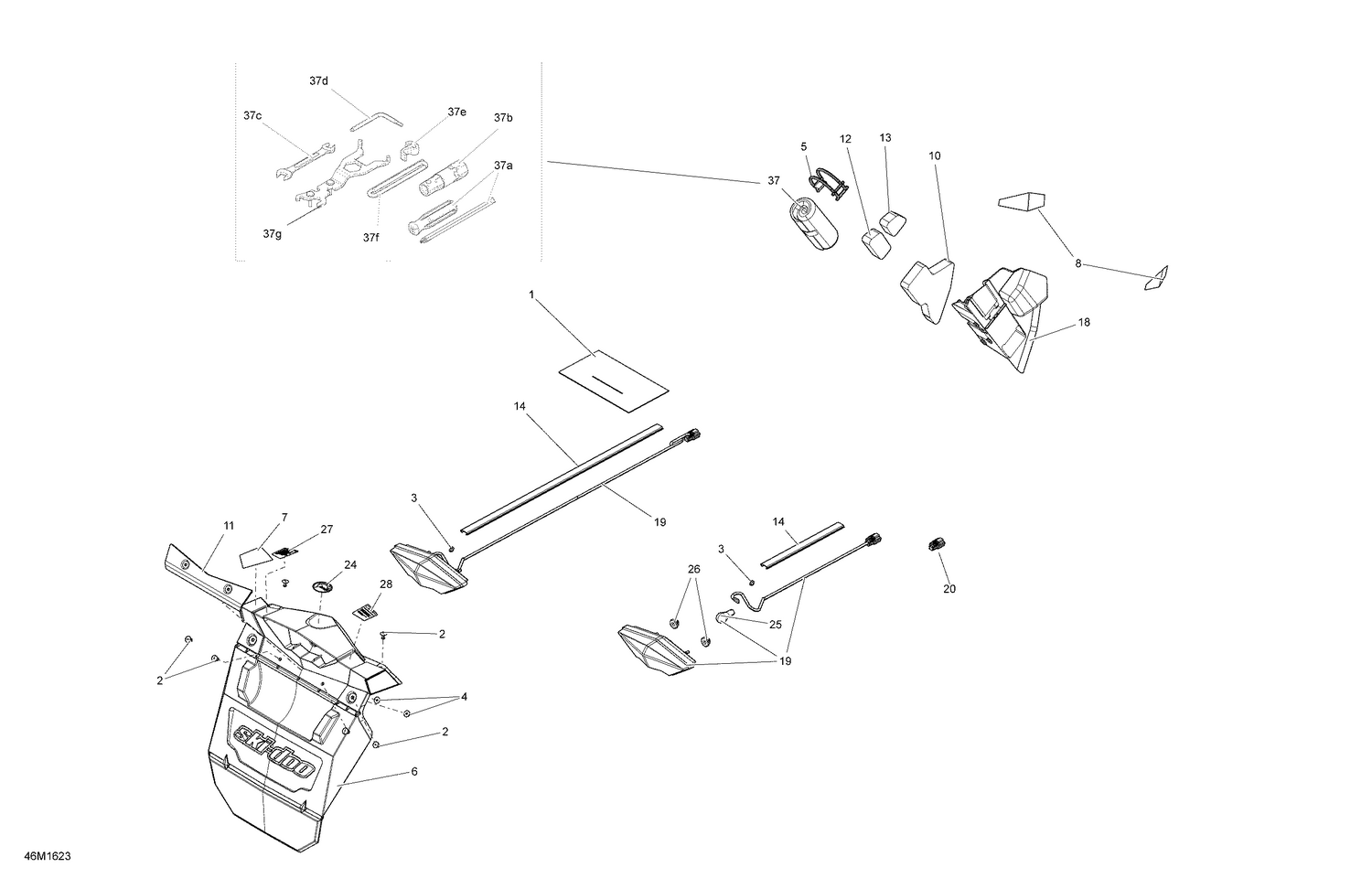

09- Utilities - 600 HO ETEC
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219400038 | Waranty Registration Form |
| 2 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3 | 293750002 | Tie Wrap 142 mm |
| 4 | 517124300 | Washer |
| 5 | 520000528 | Latch |
| 6 | 520000784 | Snow Guard |
| 7 | 520001161 | Red, LH Rear Reflector |
| 7 | 520001162 | Red, RH Rear Reflector |
| 8 | 520000718 | Yellow, RH Front Reflector |
| 8 | 520000719 | Yellow, LH Front Reflector |
| 10 | 520001059 | Foam |
| 11 | 520000751 | Reinforcement |
| 12 | 520001061 | Foam |
| 13 | 520001062 | Foam |
| 14 | 520000829 | Radiator Trim |
| 18 | 520000842 | Tool Kit Rack |
| 19 | 520001559 | Rear Light |
| 20 | 515178024 | Housing |
| 23 | 520000991 | DVD OWNER - Call your local BRP dealership |
| 24 | 516008738 | BRP Logo 48mm This part replaces 516006887. |
| 25 | 520000758 | Bulb |
| 26 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 27 | 516006910 | Safety Label |
| 28 | 516005591 | Warning Decal, Cargo |
| 37 | 520001670 | Tools Kit This part replaces 529000077. |
| 37a | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 37b | 529000046 | Set Key, 16/21 mm |
| 37c | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 37d | 520001142 | Spacing Tool |
| 37e | 529000060 | Starter Grip |
| 37f | 219704403 | Was 412500100 Rope-Starter |
