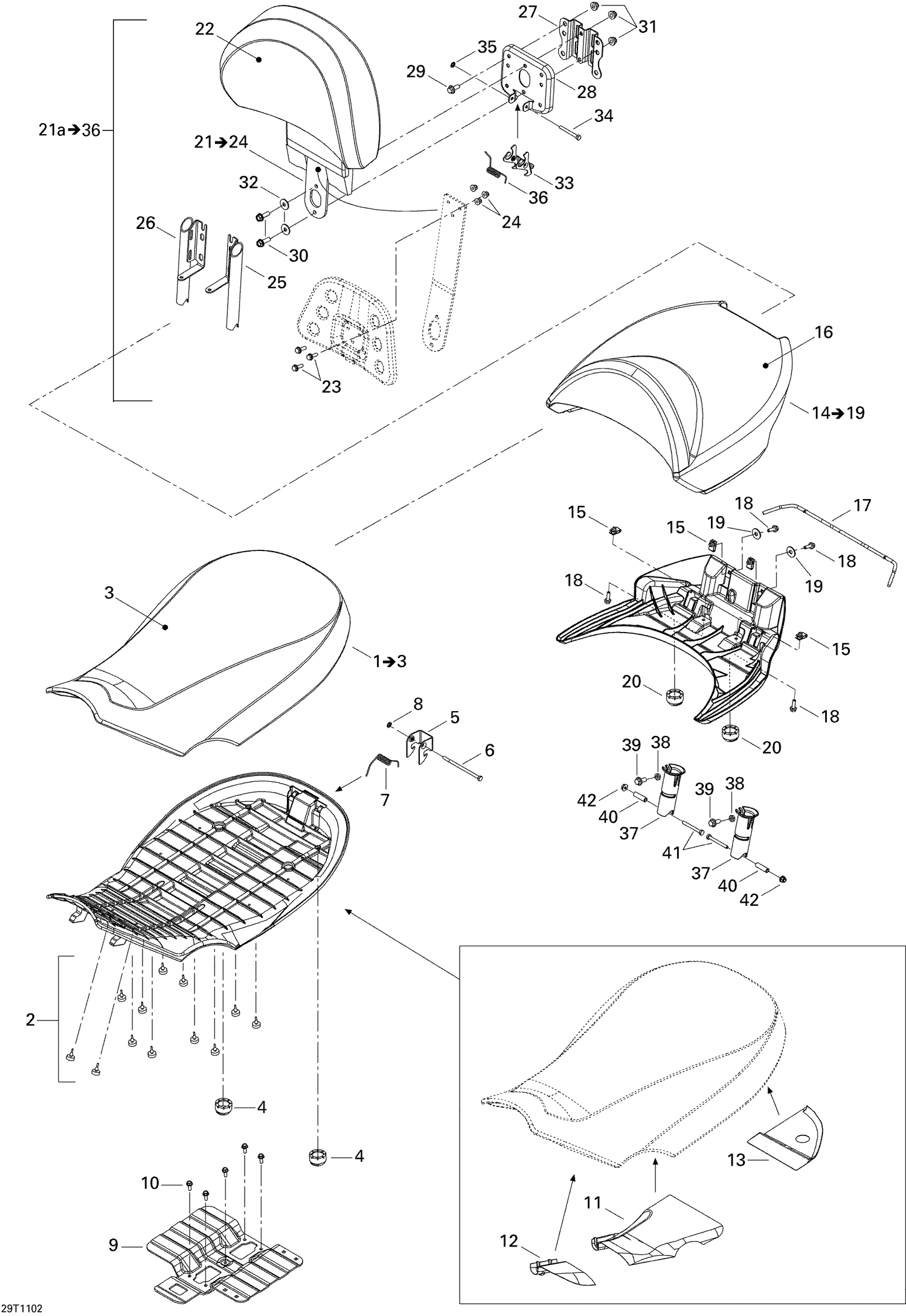

09- Seat
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 708001506 | Seat Ass'y This part replaces 715500322. |
| 2 | 708000759 | Rubber Stopper |
| 3 | 708000556 | Seat Cover This part replaces 708000474. |
| 4 | 708000760 | Bumper Rubber |
| 5 | 708000144 | Latch, Black |
| 6 | 230061044 | Hex. Screw M6 X 110 |
| 7 | 708000369 | Spring |
| 8 | 732610072 | Push Nut |
| 9 | 708000817 | REINFORCEMENT SEAT - Call your local BRP dealership |
| 10 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 11 | 708000650 | REFLECTING SHEET - Call your local BRP dealership |
| 12 | 708000649 | REFLECTING SHEET - Call your local BRP dealership |
| 13 | 708000514 | REFLECTING SHEET - Call your local BRP dealership |
| 14 | 708000805 | Rear Seat Ass'y |
| 15 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 16 | 708000457 | Seat Cover |
| 17 | 708000822 | LATCH HANDLE - Call your local BRP dealership |
| 18 | 207662044 | Hex. Flange Screw M6 X 20 |
| 19 | 234161471 | Lock Washer M6, Black |
| 20 | 708000760 | Bumper Rubber |
| 22 | 708000465 | Backrest Cover |
| 23 | 207662044 | Hex. Flange Screw M6 X 20 |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 708000439 | LH BACKREST STEM - Call your local BRP dealership |
| 26 | 708000443 | RH BACKREST STEM - Call your local BRP dealership |
| 27 | 708000855 | REAR PLATE - Call your local BRP dealership |
| 28 | 708000446 | FRONT PLATE - Call your local BRP dealership |
| 29 | 207682044 | Hex. Flange Screw M8 X 20 |
| 30 | 207682544 | Hex. Flange Screw M8 X 25 |
| 31 | 233281414 | Hex. Flange Elastic Nut M8 |
| 32 | 234082410 | Flat Washer 8 mm |
| 33 | 708000448 | LATCH - Call your local BRP dealership |
| 34 | 207065544 | Hex. Screw M6 X 55 |
| 35 | 732610072 | Push Nut |
| 36 | 708000369 | Spring |
| 37 | 708000461 | ROD GUIDE - Call your local BRP dealership |
| 38 | 232180600 | Hex. Jam Nut M8 |
| 39 | 207182034 | HEX. CAP SCREW M8 X 20 - Call your local BRP dealership |
| 40 | 708000530 | INNER BUSHING - Call your local BRP dealership |
| 41 | 207065034 | HEX. CAP SCREW M6 X 50 - Call your local BRP dealership |
