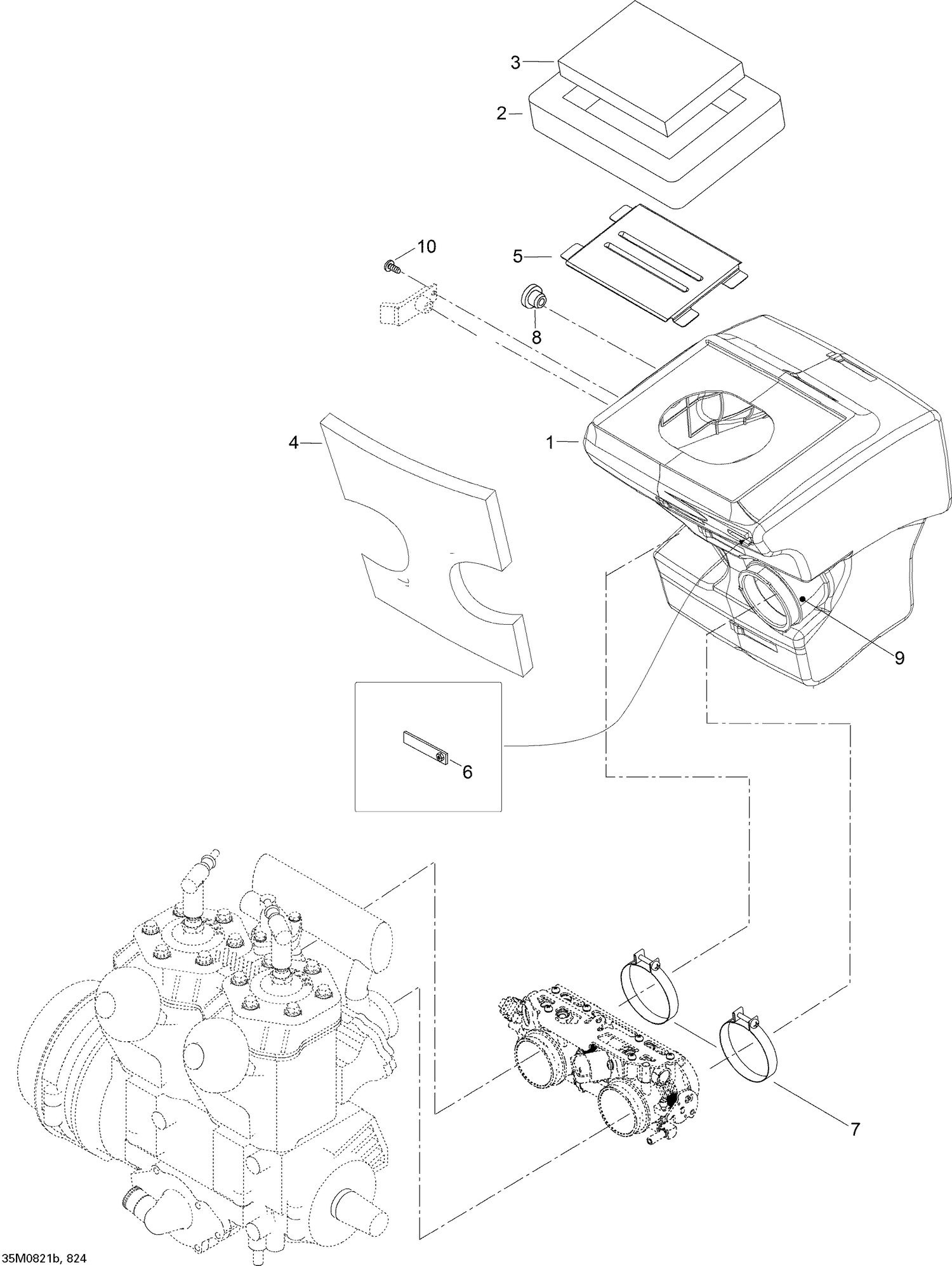

| Ref | Part Number | Description |
|---|---|---|
| 2 | 605352046 | SEAL - Call your local BRP dealership |
| 3 | 605352047 | FILTER - Call your local BRP dealership |
| 4 | 605352048 | Foam |
| 5 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 6 | 605452851 | BRACKET, IGNITION COIL - Call your local BRP dealership |
| 7 | 508000382 | GEMI CLAMP - Call your local BRP dealership |
| 8 | 570065500 | GROMMET - Call your local BRP dealership |
| 9 | 605351756 | INTAKE ADAPTOR - Call your local BRP dealership |
