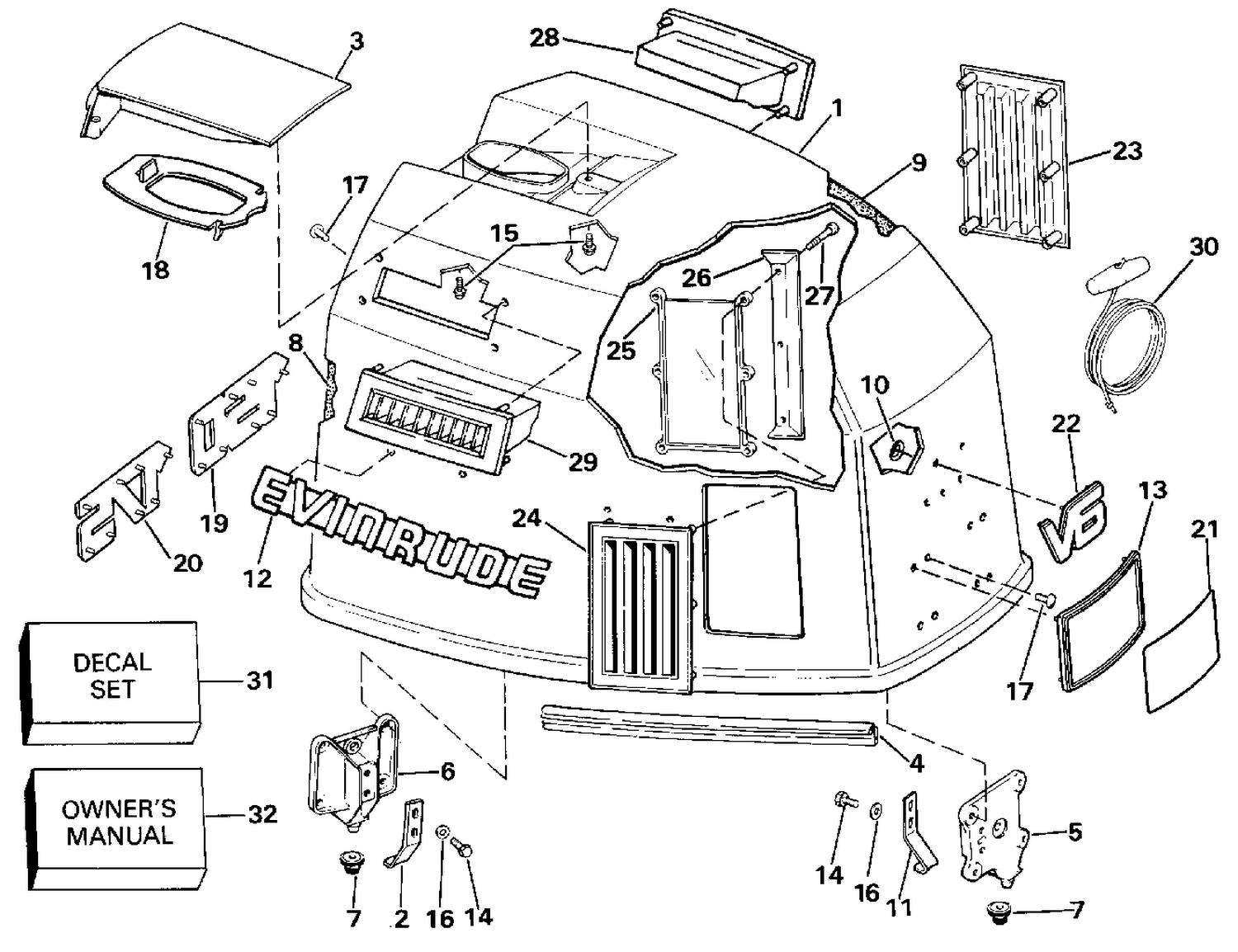

| Ref | Part Number | Description |
|---|
| 1 |
0283567 |
ENGINE COVER ASSY., 175STL |
| 1 |
0283638 |
ENGINE COVER ASSY., 150 TL |
| 1 |
0283639 |
ENGINE COVER ASSY., 150CX |
| 1 |
0283681 |
ENGINE COVER ASSY., 175 |
| 1 |
0283682 |
ENGINE COVER ASSY., 150 TX |
| 4 |
0328686 |
SEAL, Engine cover |
| 5 |
0389971 |
LOCATING BARCKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear |
| 8 |
0334853 |
SOUND BLANKET, Side |
| 9 |
0209445 |
SOUND BLANKET, Top |
| 9 |
0321256 |
SOUND BLANKET, Top |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 12 |
0210305 |
APPLIQUE |
| 13 |
0210312 |
APPLIQUE, Engine cover, front |
| 19 |
0210388 |
APPLIQUE, Rear 150 |
| 20 |
0210499 |
APPLIQUE, Front |
| 20 |
0210539 |
APPLIQUE, Rear, 175 |
| 21 |
0211218 |
PLATE, Applique, front |
| 21 |
0211263 |
PLATE, Applique, front |
| 22 |
0210356 |
APPLIQUE, Front |
| 23 |
0211262 |
LOUVER, Port |
| 24 |
0211261 |
LOUVER, Starboard |
| 25 |
0329737 |
BAFFLE, 175STL |
| 26 |
0329866 |
BRACKET, Louver mtg |
| 28 |
0398446 |
AIR INLET, Port |
| 29 |
0398447 |
AIR INLET, Star |
| 30 |
0378347 |
CORDE DE LANCEUR |
| 31 |
0283779 |
DECAL SET |
| 31 |
0283781 |
DECAL SET, 175STL |
| 32 |
0211455 |
OWNER'S MANUAL |
| 32 |
0211456 |
OWNER'S MANUAL |
