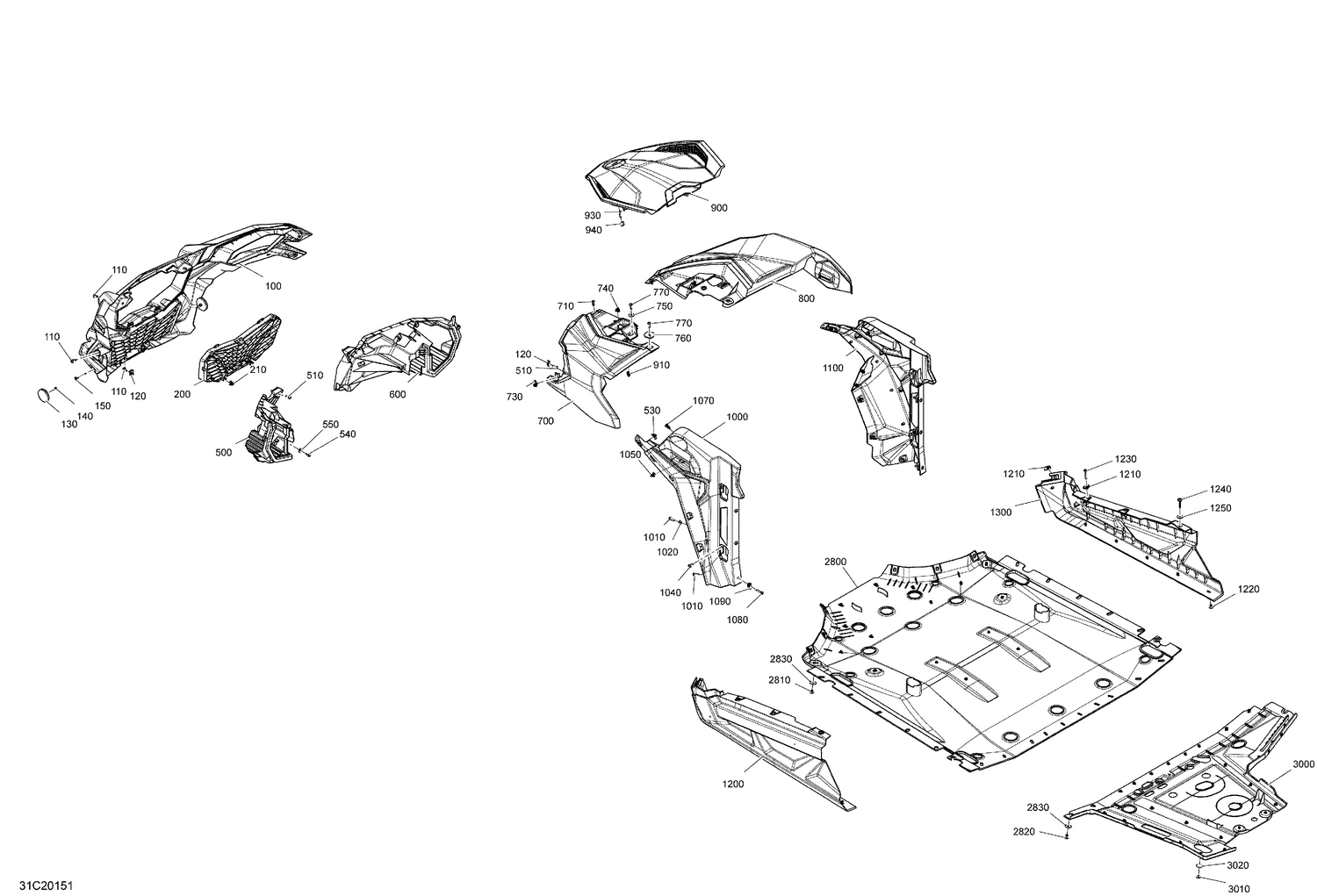

09- Body - Front Section - Camo
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705011317 | Front Fascia |
| 110 | 250000721 | Torx Truss Screw M6 X 16 |
| 120 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 130 | 705011222 | Amber Reflector |
| 140 | 233251494 | Elastic Flange Nut M5 |
| 150 | 250000748 | Torx Screw M6 X 45 |
| 200 | 705011318 | Fascia Removable Grid |
| 210 | 517306478 | Clip |
| 500 | 705011319 | LH Headlamp Structure |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 530 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 540 | 250000720 | Torx Screw K50 X 16 |
| 550 | 234062670 | Stainless Steel Flat Washer |
| 600 | 705011320 | RH Headlamp Structure |
| 700 | 705015579 | Break Up Country, LF Front Fender This part replaces 705012415. |
| 710 | 250000721 | Torx Truss Screw M6 X 16 |
| 730 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 740 | 517306478 | Clip |
| 750 | 250200162 | Flat Washer M6.6 X 22 |
| 760 | 705003841 | Support Plate |
| 770 | 250000722 | Torx Screw M6 X 20 |
| 800 | 705015582 | Break Up Country, RH Front Fender This part replaces 705012416. |
| 900 | 705011322 | Removable Hood |
| 910 | 517306478 | Clip |
| 930 | 250000807 | Torx Truss Screw M6 X 25 |
| 940 | 705502616 | Bushing |
| 1000 | 705011323 | LH Front Mudguard |
| 1010 | 250000712 | Torx Screw M6 X 20 |
| 1020 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1040 | 250000721 | Torx Truss Screw M6 X 16 |
| 1050 | 517306478 | Clip |
| 1070 | 293150230 | Tuflok Plastic Rivet |
| 1080 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1090 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1100 | 705011324 | RH Front Mudguard |
| 1200 | 705011331 | LH Rocker Panel |
| 1210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1220 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 1230 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
| 1300 | 705016939 | RH Front Rocker Panel This part replaces 705011332. |
| 2800 | 705014696 | Front Skid Plate |
| 2810 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 2820 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 2830 | 250200191 | Washer |
| 3000 | 705014697 | Rear Skid Plate |
| 3010 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
