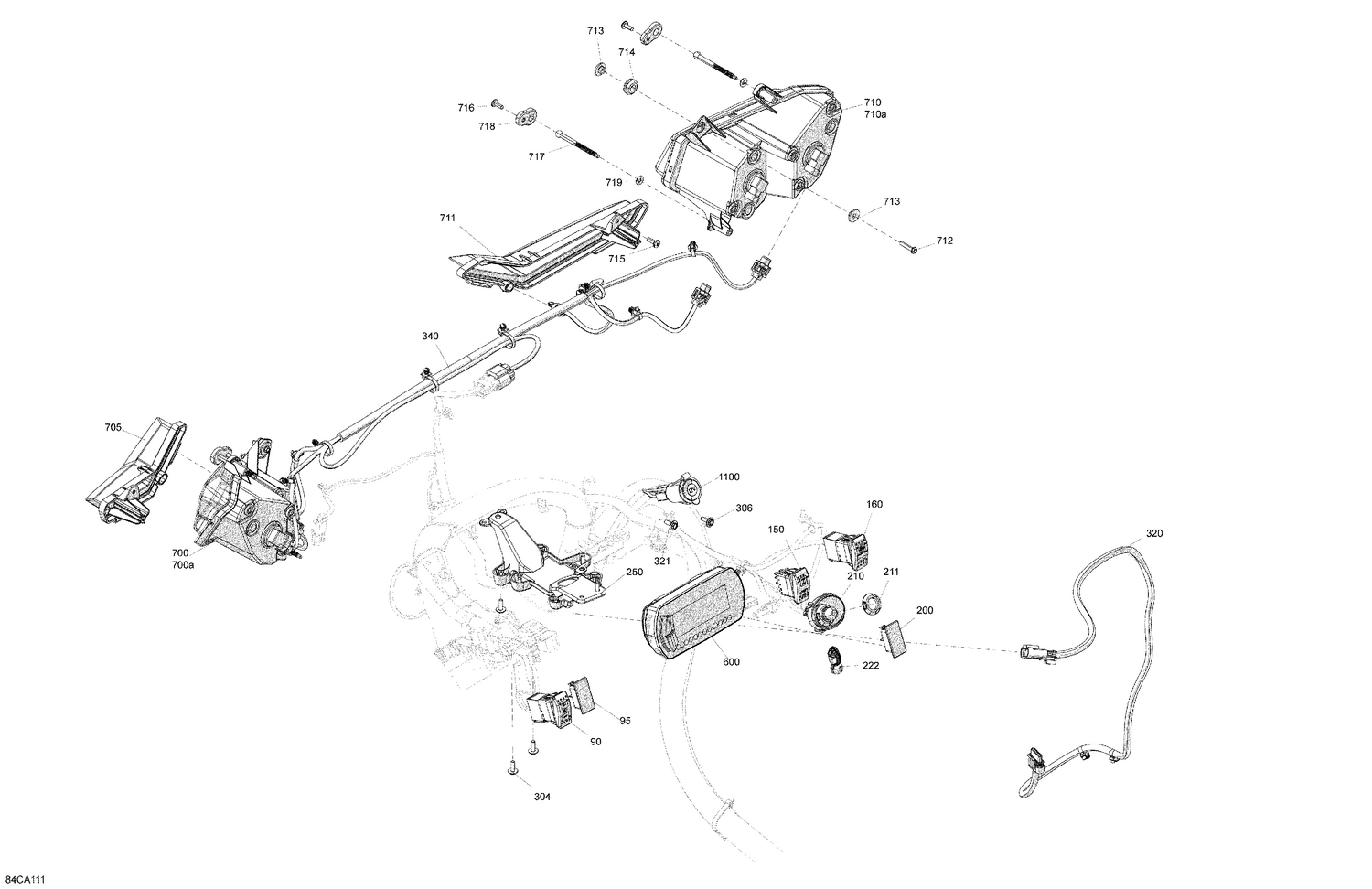

08- Electric - Front System DPS
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 90 | 710004492 | Light Switch |
| 150 | 710005489 | Switch 2X4 |
| 160 | 710005470 | Differential Lock Switch |
| 210 | 515178840 | Terminal Dess One-Wire |
| 211 | 278002963 | Safety Nut (DESS Switch) |
| 222 | 710004964 | Grey Key RFID |
| 250 | 710005672 | Housing Support |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 306 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710005929 | Trottle Pedal Harness |
| 321 | 250000959 | Screw PT Type K-50 X 16 |
| 340 | 710007250 | Front Wiring Harness |
| 700a | 715900141 | Bulb 12V 55W |
| 710a | 715900141 | Bulb 12V 55W |
| 712 | 250000724 | Torx Screw M5 X 20 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet |
| 715 | 250000720 | Torx Screw K50 X 16 |
| 716 | 250000742 | Torx Screw M5 X 14 |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
