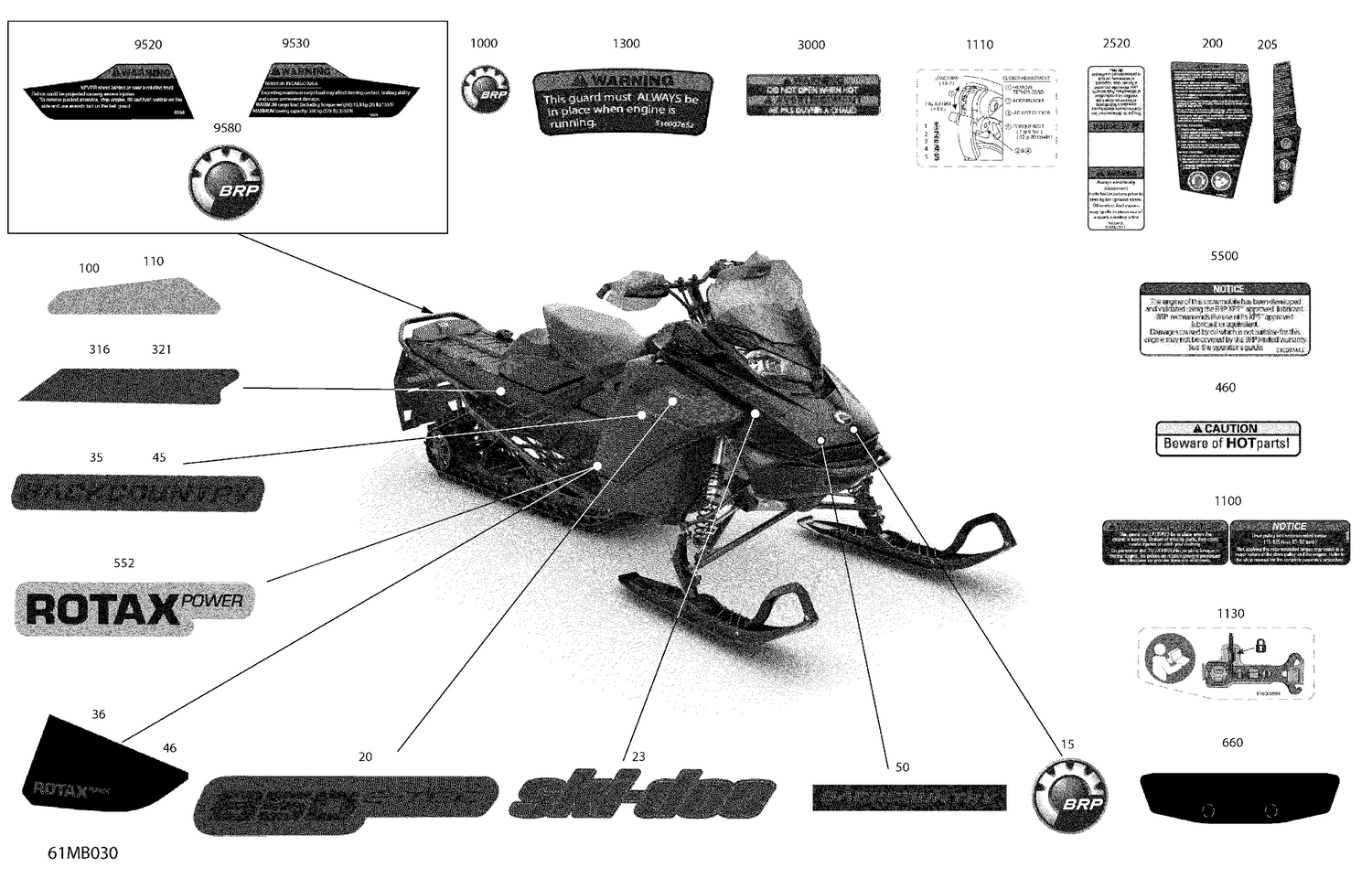

07- Body - Decals
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 704909041 | BRP Logo Emblem 68 MM UV |
| 23 | 516010985 | Decal "Ski-Doo" |
| 100 | 516008948 | Hyper Silver, RH Ski Leg Decal |
| 110 | 516008947 | Hyper Silver, LH Ski Leg Decal |
| 200 | 516010681 | LH General Warning Label |
| 205 | 516010924 | RH General Warning Label |
| 460 | 516005280 | Caution Decal Hot Parts |
| 660 | 516010972 | LINQ Decal |
| 1000 | 704909038 | BRP Logo Emblem 20 MM UV |
| 1100 | 516010898 | Clutch Instruction Label |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9520 | 516008594 | LH Safety Label |
| 9530 | 516010575 | Cargo Load Instruction Label |
