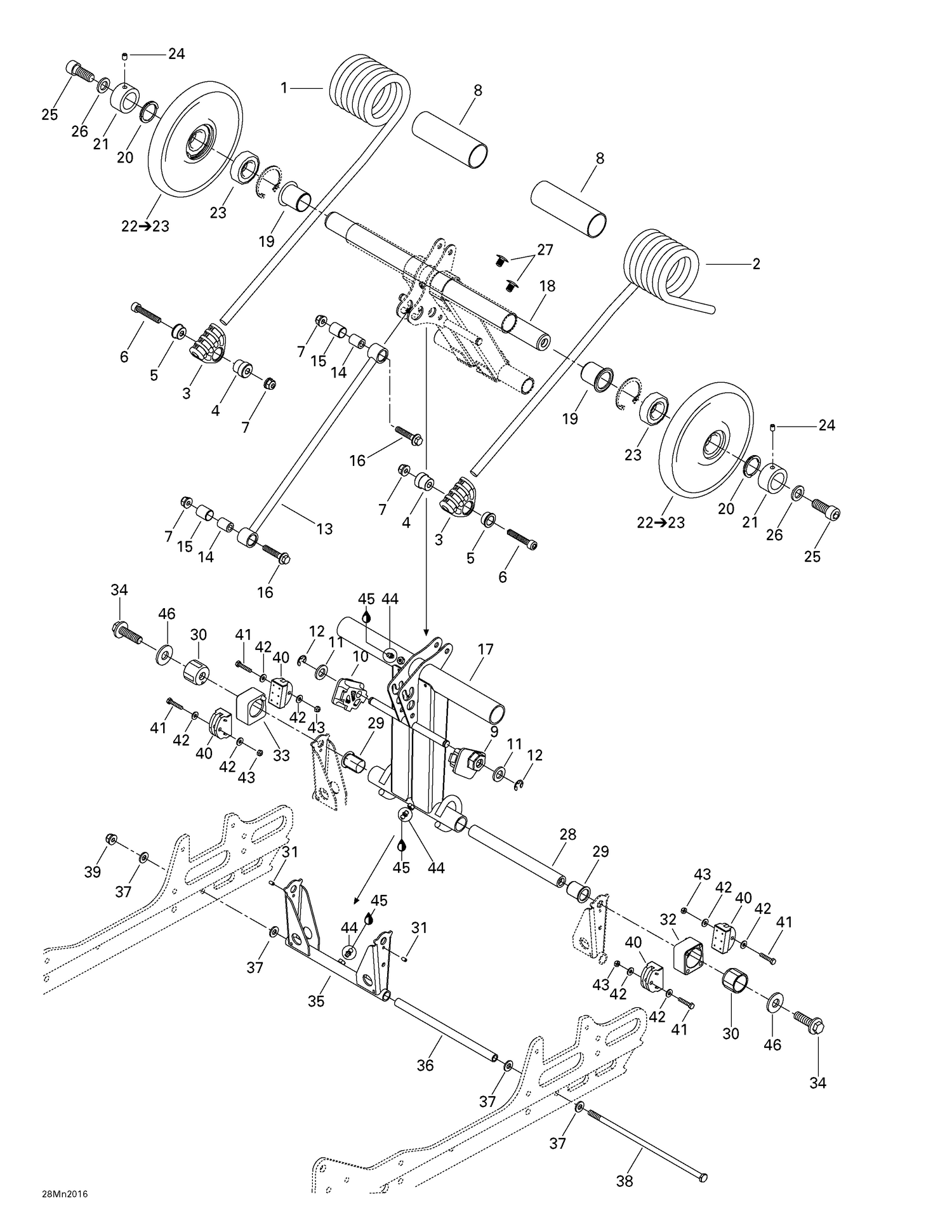

08- Rear Arm
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503189443 | RH Spring (EUROPE) |
| 2 | 503189445 | LH Spring (EUROPE) |
| 3 | 503189657 | Spring Support This part replaces 503188933. |
| 4 | 503188934 | Spring Guide Axle |
| 5 | 503188929 | CUSHION RETAINER - Call your local BRP dealership |
| 6 | 205084544 | Socket Head Screw M8 X 45 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 503189105 | PLASTIC BUSHING - Call your local BRP dealership |
| 9 | 503189284 | LH Cam Adjuster |
| 10 | 503189283 | RH Cam Adjuster |
| 11 | 234021410 | Flat Washer 12 mm |
| 12 | 293370013 | E-Circlip |
| 13 | 503189298 | Throttle Rod (SE, Europe) |
| 14 | 503189133 | BUSHING - Call your local BRP dealership |
| 15 | 503189266 | Cushion |
| 16 | 207684044 | Hex. Flange Screw M8 X 40 |
| 17 | 503189305 | Rear Arm (SE, Europe) |
| 18 | 503189412 | Upper Axle |
| 19 | 503189288 | CUSHION - Call your local BRP dealership |
| 20 | 503189146 | Axle Spring |
| 21 | 503189147 | Retainer Ring |
| 23 | 293350115 | Ball Bearing This part replaces 405404500. |
| 24 | 206260844 | Socket Set Screw M6 X 8 |
| 25 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 26 | 503189276 | Washer |
| 27 | 414644300 | Black, Dart |
| 28 | 503189413 | REAR LOWER AXLE - Call your local BRP dealership |
| 29 | 503191640 | Cushion This part replaces 503189286. |
| 30 | 503189488 | Block Guide |
| 31 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 32 | 503189152 | LH Block |
| 33 | 503189170 | RH Block |
| 34 | 207524086 | Hex. Flange Screw M12 x 40 (Scotch Grip |
| 35 | 503189430 | Pivot Arm |
| 36 | 503189156 | Pivot Arm Axle |
| 37 | 503189157 | Washer |
| 38 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 503189400 | Block Stopper |
| 41 | 207152544 | HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 42 | 224060201 | Flat Washer |
| 43 | 232551414 | Elastic Stop Nut M5 |
| 44 | 408200700 | Grease Fitting |
| 45 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
