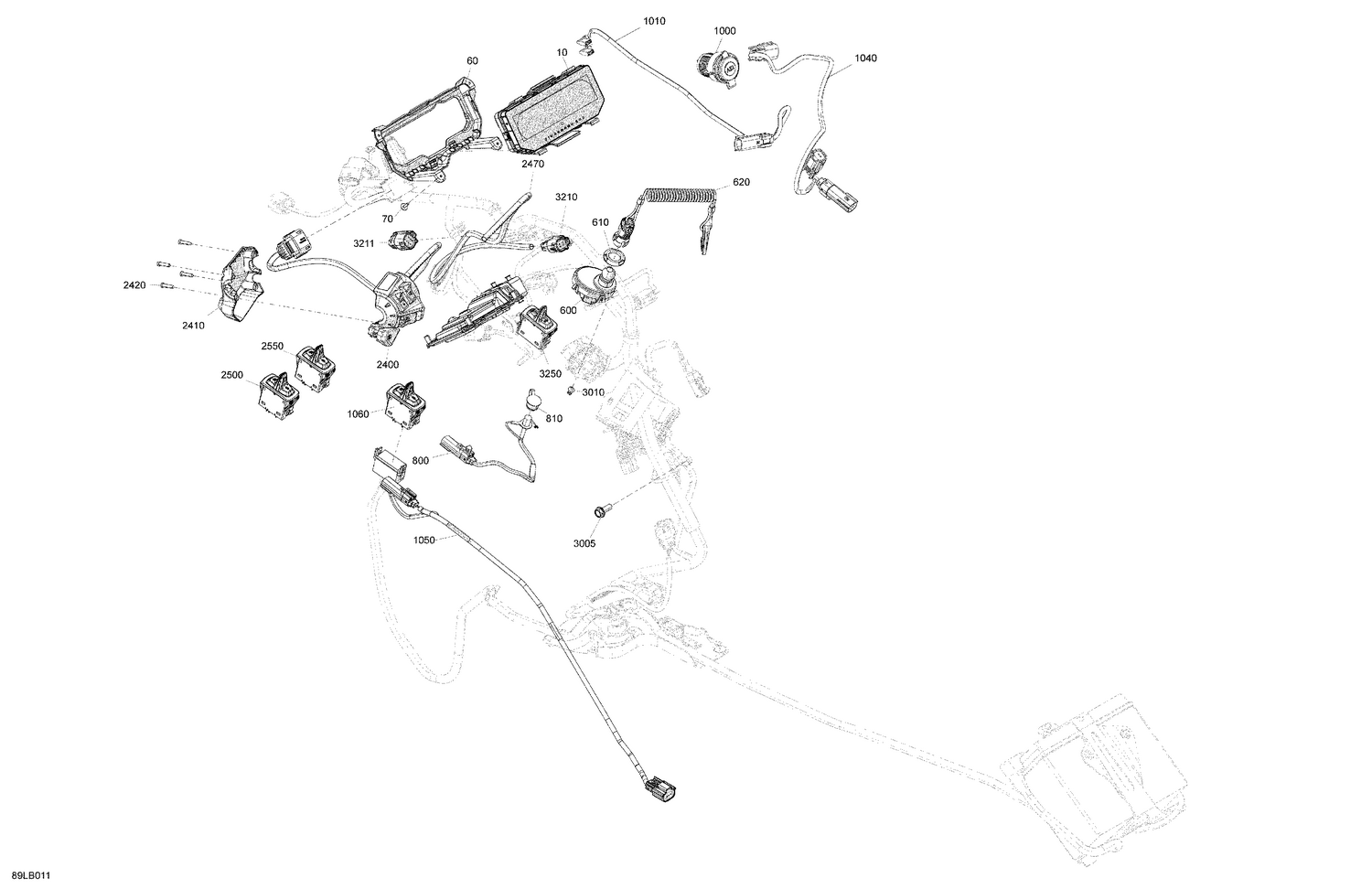

08- Electric - Upper Section
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178227 | Multifunction Gauge Full Size Color |
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 1040 | 515178153 | Extension Harness |
| 1050 | 515178608 | Seat Wiring Harness |
| 1060 | 515179490 | Heated Seat Switch This part replaces 515178502. |
| 2400 | 515178969 | Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2500 | 515178462 | Switch Rocker Hand Warmer |
| 2550 | 515178968 | Rocker Switch |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3010 | 515177929 | Rivet |
| 3211 | 515178202 | Connector Coil |
