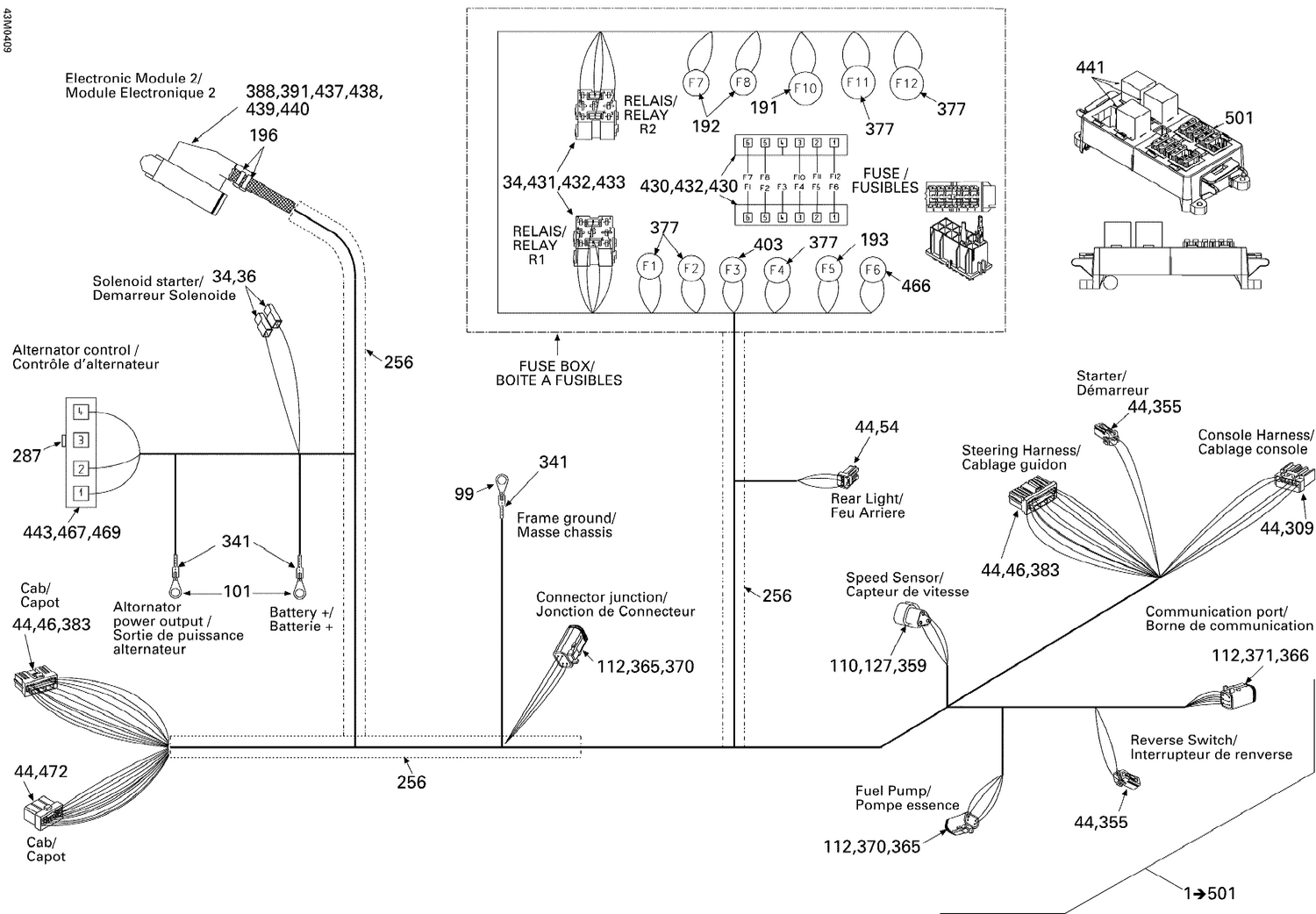

| Ref | Part Number | Description |
|---|
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 99 |
278000992 |
Open Barrel |
| 101 |
278001392 |
Open Barrel Terminal |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 122 |
278000739 |
Male Connector, 4 Circuits |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 191 |
410917200 |
Fuse, 30 Amperes |
| 192 |
409003900 |
Fuse, 20 Amperes |
| 193 |
409012800 |
FUSE, 1 AMPERE - Call your local BRP dealership |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 206 |
409004200 |
Female Terminal |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 287 |
710000080 |
Cap |
| 298 |
293740005 |
Tape |
| 309 |
515175543 |
Female Terminal Housing, 6 Circuits |
| 341 |
Not |
Available As Spare Part - Tubing Shrink |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 359 |
515175666 |
Male Housing |
| 365 |
515175672 |
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership |
| 366 |
515175673 |
Male Housing, 6 Circuits |
| 370 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 371 |
515175678 |
Male Wedge, 6 Circuits |
| 377 |
278000344 |
Fuse, 5 Amperes |
| 383 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 388 |
278001750 |
FEMALE TERMINAL - Call your local BRP dealership |
| 391 |
278001751 |
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership |
| 403 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 430 |
515175857 |
FUSE HOLDER - Call your local BRP dealership |
| 431 |
515175856 |
RELAY HOLDER - Call your local BRP dealership |
| 432 |
515175855 |
FEMALE TERMINAL - Call your local BRP dealership |
| 433 |
515175854 |
FEMALE TERMINAL - Call your local BRP dealership |
| 437 |
515175886 |
SEAL - Call your local BRP dealership |
| 438 |
515175883 |
Latch |
| 439 |
515175884 |
LOCK - Call your local BRP dealership |
| 440 |
515175885 |
COVER - Call your local BRP dealership |
| 441 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 443 |
710000335 |
Female Terminal |
| 466 |
415128525 |
Fuse, 0.5 Ampere |
| 467 |
515175978 |
Female Terminal Housing, 4 Circuits |
| 469 |
515175979 |
SEAL - Call your local BRP dealership |
| 472 |
415128527 |
Female Terminal Housing |
