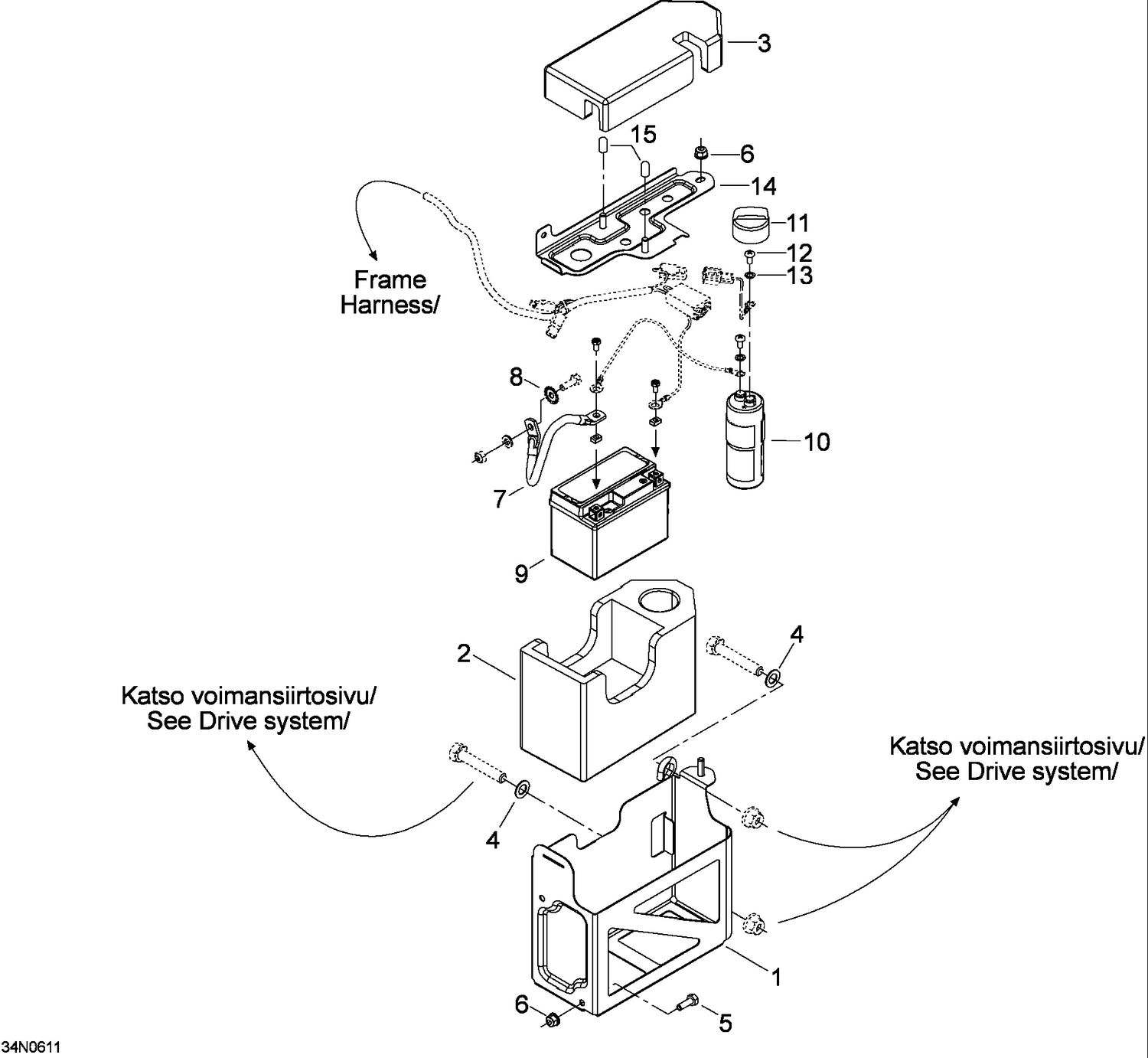

| Ref | Part Number | Description |
|---|
| 1 |
515176230 |
Battery support |
| 2 |
515176190 |
CAPACITOR SUPPORT - Call your local BRP dealership |
| 3 |
515176114 |
COVER - Call your local BRP dealership |
| 4 |
605620000 |
Washer A10,5 |
| 5 |
40030 |
Screw M6 x 20 |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 7 |
515175749 |
Ground wire |
| 8 |
20017 |
Serrated lock washer M6 |
| 9 |
515176095 |
Battery YUASA YTX4L-BS |
| 10 |
515176387 |
CAPACITOR - Call your local BRP dealership |
| 11 |
515176211 |
CAP - Call your local BRP dealership |
| 12 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 13 |
20018 |
Serrated lock washer A5,3 |
| 14 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
