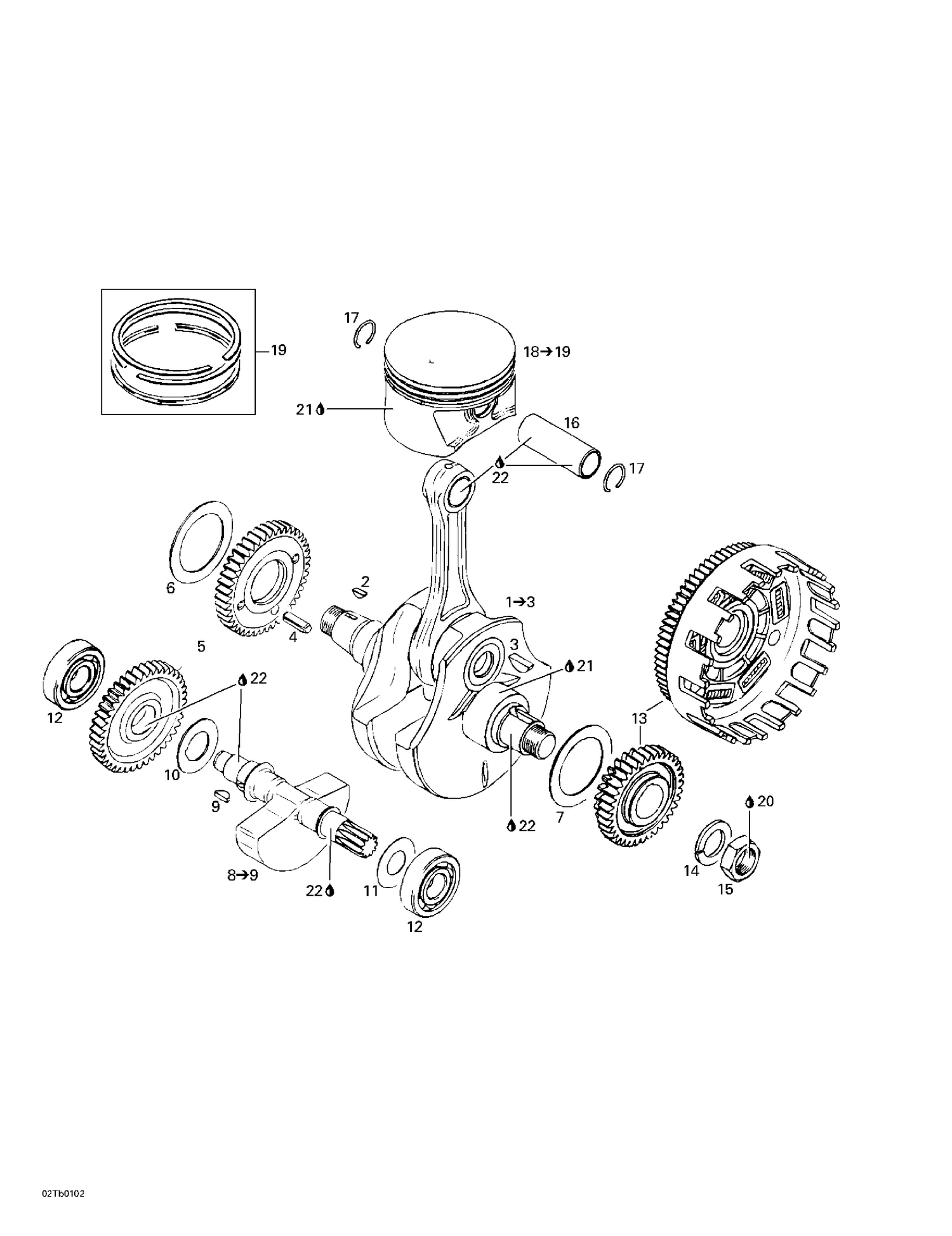

| Ref | Part Number | Description |
|---|
| 2 |
420246570 |
Woodruff Key 4 X 5 This part replaces 711246570. |
| 3 |
420946015 |
WOODRUFF KEY 6 X 9 - Call your local BRP dealership This part replaces 711946015. |
| 4 |
732804009 |
Pin M8 X 24 |
| 5 |
711294478 |
Balance Gear Ass'y |
| 6 |
711627030 |
Shim 48/67/1 |
| 7 |
711627031 |
Shim 48/67/1,25 |
| 9 |
420246570 |
Woodruff Key 4 X 5 This part replaces 711246570. |
| 10 |
711227542 |
Thrust Washer 24,3/41/1,5 |
| 11 |
711627070 |
Thrust Washer 20/41/0,8 |
| 12 |
711932096 |
Ball Bearing 6304 |
| 13 |
711296365 |
Primary Drive Ass'y |
| 14 |
420945759 |
Lock Washer, 22 mm |
| 15 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 16 |
711216201 |
Piston Pin |
| 17 |
711245435 |
Circlip #22 |
| 19 |
420295184 |
Piston Ring Set This part replaces 711295184. |
| 20 |
293800060 |
Loctite 243, 10 ml |
| 21 |
Not |
Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
| 711627071 |
Rondelle |
De Butée 20/41/1 711627071 |
| 711627071 |
Thrust |
Washer 20/41/1 711627071 |
| 711627072 |
Thrust |
Washer 20/41/1,2 711627072 |
| 711627073 |
Thrust |
Washer 20/41/1,4 711627073 |
