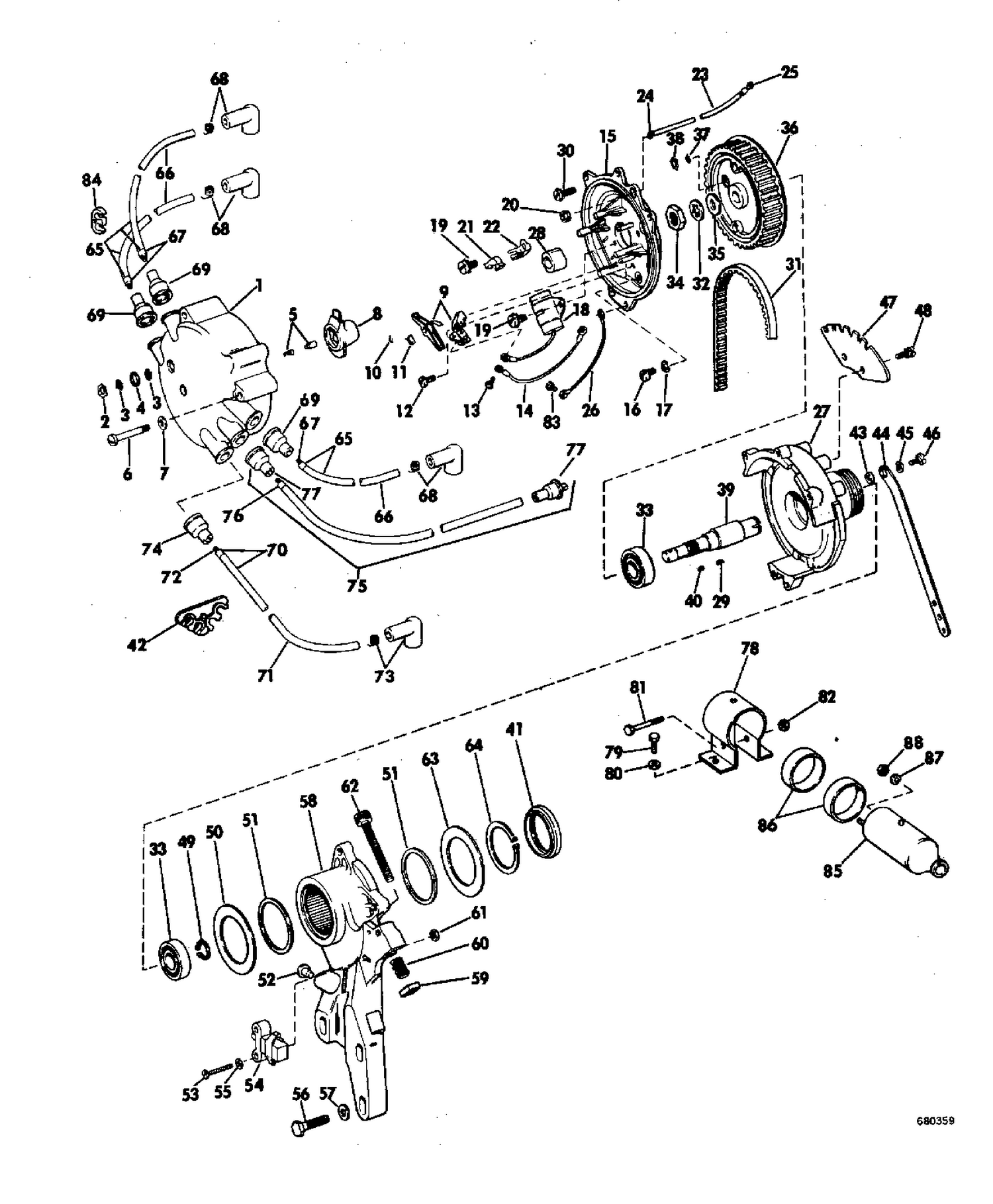

| Ref | Part Number | Description |
|---|
| 1 |
0580327 |
DISTRIBUTOR CAP & SCREEN ASSEMBLY |
| 2 |
0510411 |
RETAINER |
| 3 |
0510355 |
SCREEN |
| 4 |
0510375 |
SPACER |
| 5 |
0580291 |
BRUSH & SPRING ASSEMBLY |
| 6 |
0307993 |
SCREW |
| 8 |
0580338 |
ROTOR |
| 9 |
0580290 |
BREAKER BASE ASSY |
| 12 |
0510278 |
SCREW |
| 13 |
0510194 |
SCREW |
| 14 |
0580279 |
LEAD ASSEMBLY |
| 15 |
0580491 |
PLATE,Breaker |
| 16 |
0510185 |
ECCENTRIC SCREW |
| 17 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 18 |
0580256 |
CONDENSER |
| 19 |
0510328 |
SCREW |
| 20 |
0301571 |
GROMMET |
| 21 |
0510377 |
OILER WICK |
| 22 |
0510376 |
CLIP,Oiler |
| 23 |
0580502 |
LEAD |
| 24 |
0510426 |
RING TERMINAL |
| 26 |
0580501 |
GROUND STRAP |
| 27 |
0580669 |
HOUSING & SLEEVE ASSY |
| 28 |
0307791 |
CAM,Distributor |
| 29 |
0307717 |
KEY,Shaft to cam |
| 30 |
0305230 |
SCREW |
| 31 |
0305446 |
BELT |
| 32 |
0306994 |
LOCKWASHER |
| 33 |
0580258 |
BEARING ASSEMBLY |
| 34 |
0307915 |
NUT,Hex |
| 35 |
0309927 |
WASHER |
| 36 |
0580309 |
PULLEY & SCREEN ASSY |
| 37 |
0510355 |
SCREEN |
| 38 |
0510411 |
RETAINER |
| 39 |
0580619 |
SHAFT & BALL ASSY |
| 40 |
0307717 |
KEY,Shaft to cam |
| 41 |
0510421 |
CAP,Distributor housing |
| 42 |
0310446 |
RETAINER, Ignition leads |
| 43 |
0304352 |
SLEEVE |
| 44 |
0510433 |
LINK |
| 45 |
0510412 |
BOW WASHER |
| 46 |
0303247 |
SCREW |
| 47 |
0312879 |
RETAINER |
| 48 |
0305230 |
SCREW |
| 49 |
0307917 |
RETAINING RING |
| 50 |
0510327 |
WASHER,Upper |
| 51 |
0510403 |
WASHER,Inner |
| 52 |
0203290 |
BUMPBER, Anchor and pin assy. |
| 53 |
0307910 |
SCREW |
| 54 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT This part replaces 0379542. |
| 55 |
0310498 |
WASHER |
| 56 |
0304055 |
SCREW |
| 57 |
0305486 |
WASHER |
| 58 |
0381935 |
BRACKET & BEARING ASSY |
| 62 |
0312374 |
SCREW, Idle adj. |
| 63 |
0307918 |
WASHER,Lower |
| 64 |
0307916 |
RETAINING RING |
| 65 |
0580429 |
TERMINAL & LEAD ASSEMBLY |
| 66 |
0510357 |
LEAD,Only |
| 67 |
0510364 |
TERMINAL,Lead |
| 69 |
0510332 |
NIPPLE |
| 70 |
0580429 |
TERMINAL & LEAD ASSEMBLY |
| 71 |
0510601 |
LEAD,Only |
| 72 |
0510364 |
TERMINAL,Lead |
| 74 |
0510332 |
NIPPLE |
| 75 |
0580658 |
LEAD ASSEMBLY,Dist.to coil |
| 76 |
0510364 |
TERMINAL,Lead |
| 77 |
0510332 |
NIPPLE |
| 78 |
0312616 |
BRACKET,Ignition coil |
| 79 |
0303398 |
VIS, support This part replaces 0302030. |
| 80 |
0308919 |
WASHER,Bracket screw |
| 81 |
0600014 |
SCREW |
| 82 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 83 |
0309072 |
SCREW, Detent spring, up. throt. cable anchr |
| 84 |
0310445 |
RETAINER |
| 85 |
0379569 |
COIL ASSEMBLY |
| 86 |
0307768 |
SLEEVE |
| 87 |
0550757 |
L'WASHER,Coil term |
| 0580425 |
0580425 |
LEAD ASSEMBLY,Plug #1,2,3 |
| 0580475 |
0580475 |
LEAD ASSEMBLY,Plug #4 |
| 0580496 |
0580496 |
BREAKER & PLATE ASSY |
| 0580621 |
0580621 |
DISTRIBUTOR ASSY.,Less bracket and hi-tension leads |
