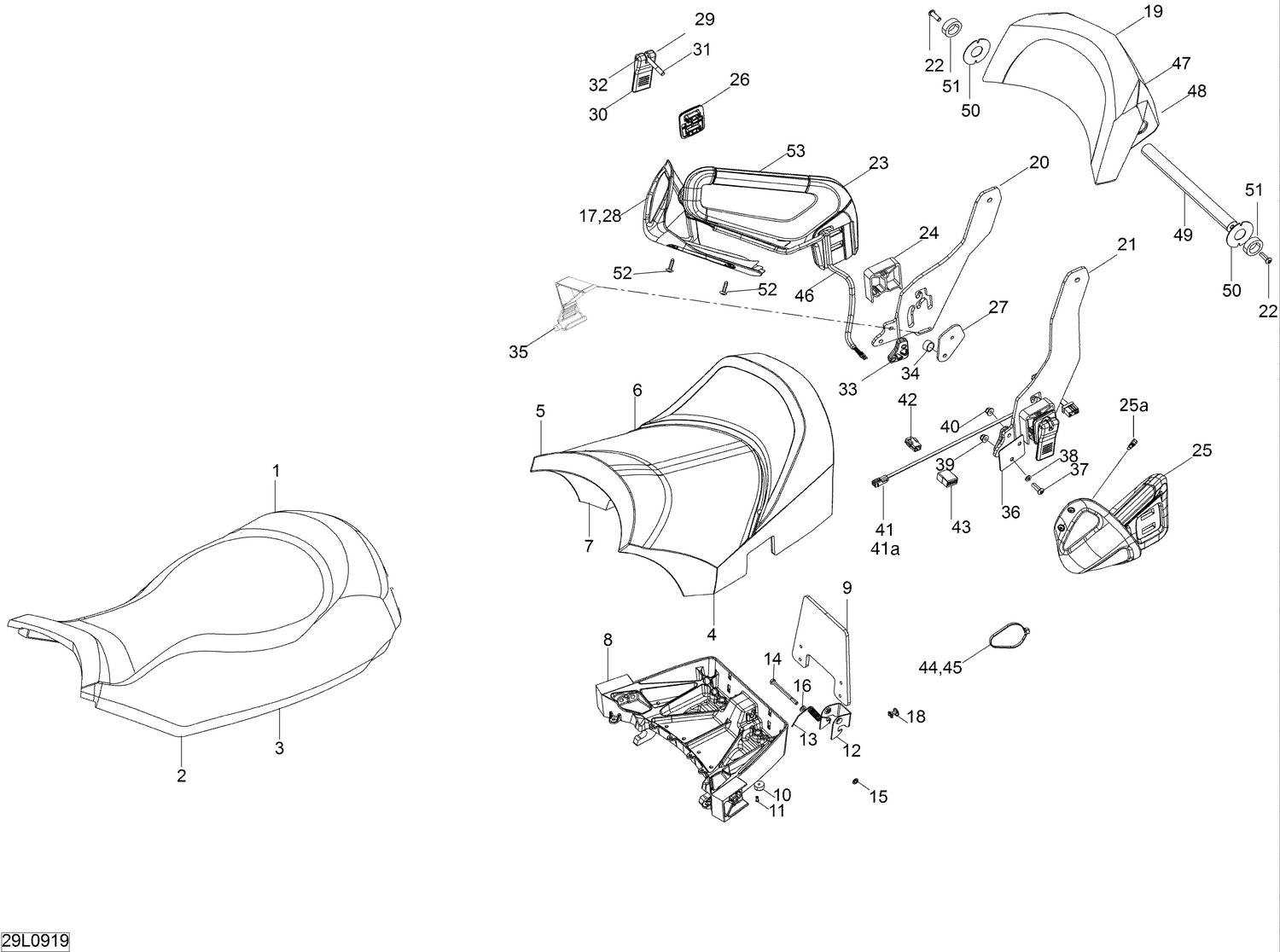

09- Seat
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005135 | Seat Ass'y, Black |
| 2 | 510005807 | Front Seat Foam This part replaces 510004868. |
| 3 | 510004869 | Front Seat Cover, XU |
| 4 | Not | Available As Spare Part - Rear Seat Ass'y XU |
| 5 | 510004816 | Seat Base |
| 6 | 510004872 | Seat Cover |
| 7 | 510005811 | Rear Seat Foam This part replaces 510004871. |
| 8 | 510004816 | Seat Base |
| 9 | 510004817 | Backrest Plate |
| 10 | 414644300 | Black, Dart |
| 11 | 293150067 | Rivet |
| 12 | 708000144 | Latch, Black |
| 13 | 708000369 | Spring |
| 14 | 207068044 | Hex. Screw M6 X 80 |
| 15 | 732610072 | Push Nut |
| 16 | 234061410 | Flat Washer 6 mm |
| 17 | 510004415 | RH Deflector |
| 18 | 36087 | Rivet This part replaces M36087. |
| 19 | 510005149 | Foam Ass'y |
| 20 | 510004988 | RH ARM - Call your local BRP dealership |
| 21 | 510004989 | LH ARM - Call your local BRP dealership |
| 22 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 23 | 510005865 | RH HANDLE - Call your local BRP dealership This part replaces 510004948. |
| 24 | 510004939 | Adapter |
| 25 | 510005862 | LH Handle This part replaces 510004947. |
| 25a | 510004413 | Rocker Switch |
| 26 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 27 | 510004990 | Counter Plate |
| 28 | 250000376 | Hex Forming Screw DIN.7500D |
| 28 | 510004416 | LH Deflector |
| 29 | 510004992 | Lock Ass'y |
| 30 | Not | Available As Spare Part - Lock |
| 31 | Not | Available As Spare Part - Screw |
| 32 | Not | Available As Spare Part - Shaft |
| 33 | 510005151 | ADAPTER - Call your local BRP dealership |
| 34 | 510005042 | SLEEVE - Call your local BRP dealership |
| 35 | 510005139 | Security Lock |
| 36 | 510004995 | COVER PLATE - Call your local BRP dealership |
| 37 | 207086044 | HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 38 | 234081410 | Flat Washer 8 mm |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 28056 | Cover This part replaces M28056. |
| 41 | 515176747 | SEAT HARNESS - Call your local BRP dealership |
| 41a | 515176748 | SEAT PLUG HARNESS - Call your local BRP dealership |
| 42 | 515175494 | Male Housing, 3 Circuits |
| 43 | 515175817 | Male Terminal Housing, 8 Circuits |
| 44 | Not | Available As Spare Part - Tie-Rap |
| 45 | 414115200 | Tie-Rap 180 mm |
| 46 | 219704426 | Was 515175506 Tubing |
| 47 | 510005833 | FOAM BACKREST - Call your local BRP dealership This part replaces 510004985. |
| 48 | 510004987 | Cover Backrest |
| 49 | 510004843 | BACKREST AXLE - Call your local BRP dealership |
| 50 | 605355358 | WASHER - Call your local BRP dealership |
| 51 | 510004378 | Rubber Shim |
| 52 | 250000961 | Screw 25MM This part replaces 250000199. |
