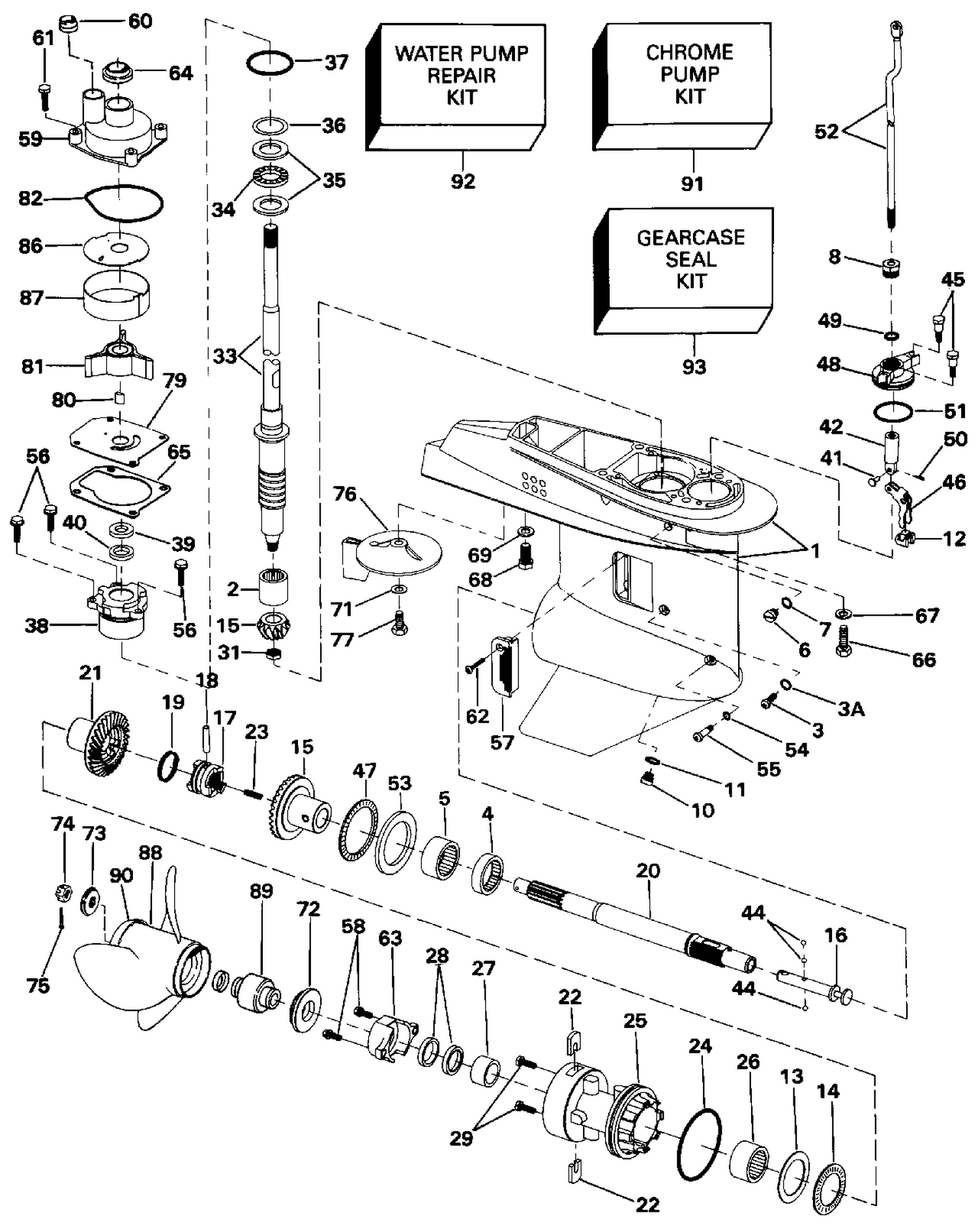

| Ref | Part Number | Description |
|---|
| 1 |
0432280 |
GEARCASE & BEARING ASSY. |
| 25 |
0332493 |
BEARING HOUSING |
| 33 |
0433066 |
DRIVESHAFT 15" |
| 33 |
0433067 |
D-SHAFT AY 20" |
| 51 |
3852928 |
O-RING, Shift actuator housing This part replaces 0913921. |
| 54 |
0317178 |
O RING |
| 57 |
0332494 |
SCREEN |
| 58 |
3852473 |
SCREW, Cap to gimbal This part replaces 0909636. |
| 59 |
0333783 |
HOUSING, Impeller |
| 63 |
0398873 |
ANODE AY |
| 66 |
0305282 |
BOLT, Bowl & suction piece |
| 68 |
0313697 |
SCR,Grc to hsg.long |
| 76 |
0340539 |
TRIM TAB, Gearcase This part replaces 0332475. |
| 81 |
0432941 |
IMPELLER |
| 86 |
0315145 |
PLATE, Chrome |
| 86 |
0321940 |
PLATE |
| 87 |
0319587 |
CUP,IMPELLER HSG |
| 87 |
0324980 |
LINDER, Impeller housing |
| 88 |
0176423 |
PROPELLER, 11 1/4 x 19 - Aluminum This part replaces 0386908. |
| 88 |
0386786 |
PROPELLER, 11-3/4 X 15 |
| 88 |
0386841 |
PROPELLER |
| 88 |
0386907 |
PROPELLER 13 X 11 |
| 88 |
0386909 |
PROPELLER, 12 - 1/2 x 13 |
| 88 |
0390849 |
PROPELLER, 11-1/2 x 13-SST |
| 88 |
0390850 |
PROPELLER, 12 1/4 x 15 - SST |
| 88 |
0390851 |
PROPELLER, 11 3/4 x 17 - SST |
| 88 |
0390852 |
PROPELLER, 11 1/4 x 19 - SST |
| 88 |
0391014 |
PROPELLER 11-1/4 X 21 |
| 88 |
0391015 |
PROPELLER 11-1/4 X 21 - SST |
| 91 |
0389145 |
CHROME CUP & PLATE KIT |
| 92 |
0438592 |
WATER PUMP REPAIR KIT This part replaces 0433548. |
| 0433340 |
0435276 |
GEARCASE ASSY., Stnd. (15") This part replaces 0433340. |
| 0433341 |
0435277 |
GEARCASE ASSY., Long (20") This part replaces 0433341. |
