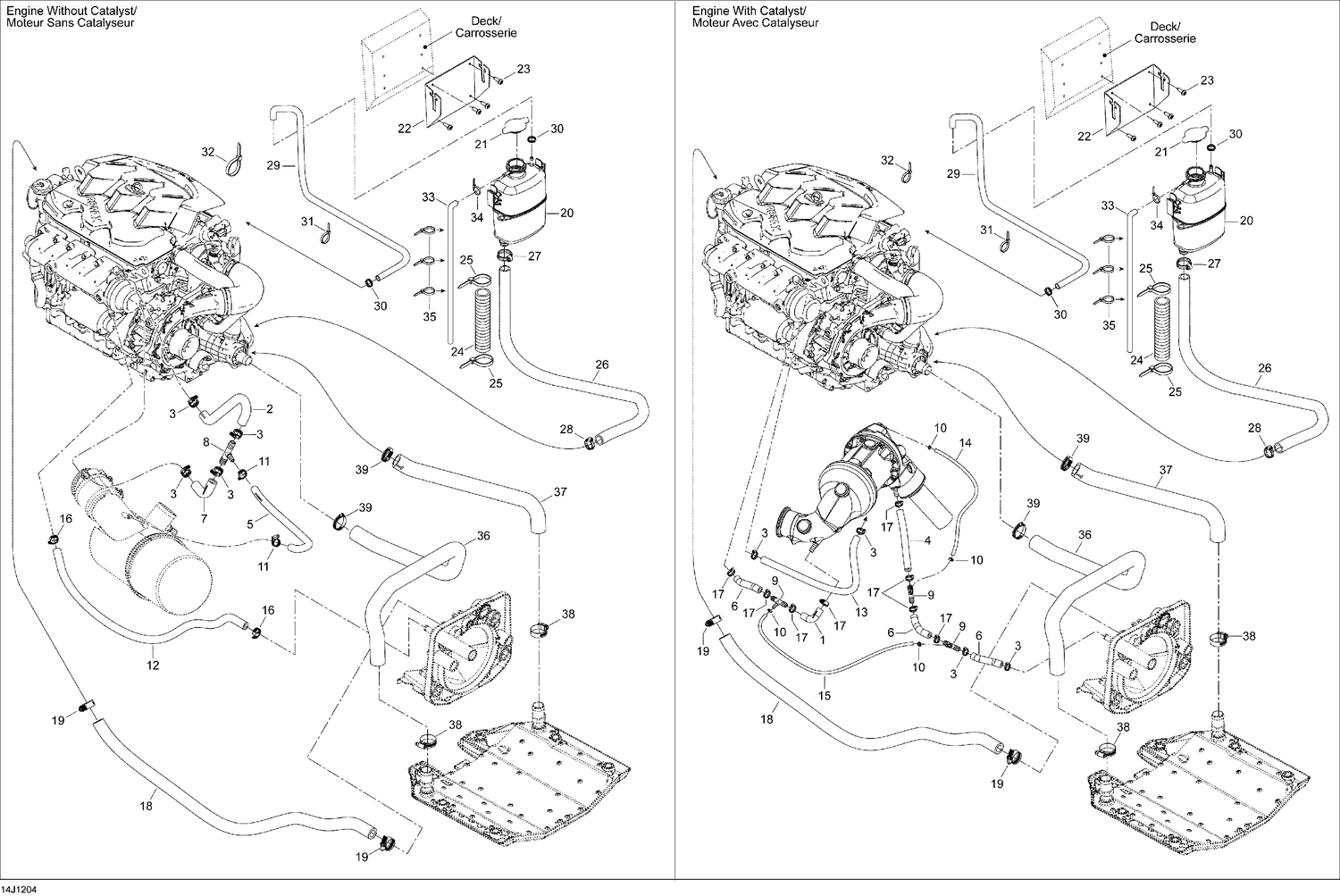

01- Cooling System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 293650172 | Tridon Gear Clamp |
| 18 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 19 | 293650051 | Tridon Gear Clamp |
| 20 | 276000086 | Coolant Tank |
| 21 | 276000100 | Pressure Cap |
| 22 | 276000287 | COOLANT TANK BRACKET - Call your local BRP dealership |
| 23 | 204100073 | SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
| 24 | 204130176 | SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132. |
| 25 | 293750002 | Tie Wrap 142 mm |
| 26 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 27 | 293650051 | Tridon Gear Clamp |
| 28 | 293650019 | Tridon Gear Clamp |
| 29 | 219704357 | Was 275500549 Hose 1/4" |
| 30 | 293650025 | Oetiker Gear Clamp |
| 31 | 293750001 | Tie Wrap 94 mm |
| 32 | 293750047 | Tie Rap, 533 mm |
| 33 | 219704410 | Polyurethane Hose 10000Mm Long |
| 34 | 293750001 | Tie Wrap 94 mm |
| 35 | 293750002 | Tie Wrap 142 mm |
| 36 | 276000490 | LH Radiator Hose This part replaces 276000250. |
| 37 | 276000248 | RH Radiator Hose |
| 38 | 293650045 | Tridon Gear Clamp |
