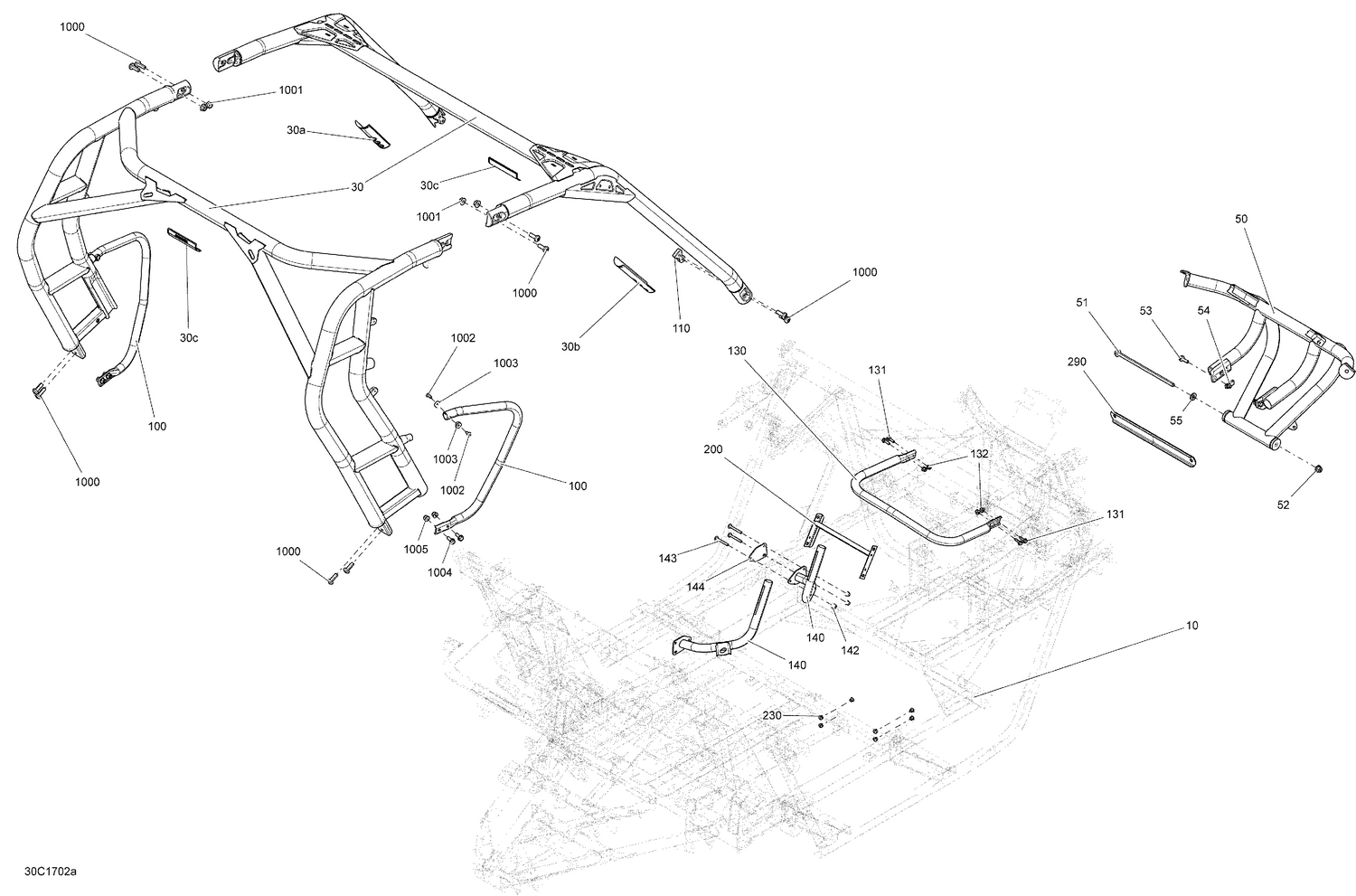

| Ref | Part Number | Description |
|---|
| 30a |
704903679 |
Warning Label |
| 30b |
704903680 |
Warning Label |
| 30c |
704903492 |
Warning Label |
| 50 |
715001645 |
FRONT BUMPER BLACK - Call your local BRP dealership This part replaces 705203685. |
| 51 |
250000597 |
Hex. Flange Screw |
| 52 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 53 |
207382544 |
SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 54 |
250100118 |
Panel Nut M8 X 1.25 |
| 55 |
234201474 |
Conical Spring Washer 10 mm |
| 100 |
705203640 |
TUBE RH B-160 PAINTED - Call your local BRP dealership |
| 100 |
705204410 |
Red RH Front Side Protector Tube |
| 100 |
705204817 |
TUBE RH B-352 PAINTED - Call your local BRP dealership |
| 110 |
705203415 |
Binding Block |
| 120 |
705203637 |
TUBE LH B-160 PAINTED - Call your local BRP dealership |
| 120 |
705204409 |
Red LH Front Side Protector Tube |
| 120 |
705204816 |
TUBE LH B-352 PAINTED - Call your local BRP dealership |
| 130 |
705203332 |
Black Handle |
| 131 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 132 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 142 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 143 |
250000317 |
Torx Screw M6 X 50 |
| 144 |
705204606 |
Steel Plate |
| 200 |
705203330 |
Reinforcement Panel |
| 230 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 290 |
705203454 |
FRONT SUSPENSION LINK - Call your local BRP dealership |
| 1000 |
250000848 |
Screw Pan M10 X 30 |
| 1001 |
233101464 |
Hex. Elastic Flange Nut , M10 X 1.5 |
| 1002 |
250000789 |
Torx Truss M6X14 |
| 1003 |
705202223 |
Offset Washer |
| 1004 |
207682044 |
Hex. Flange Screw M8 X 20 |
