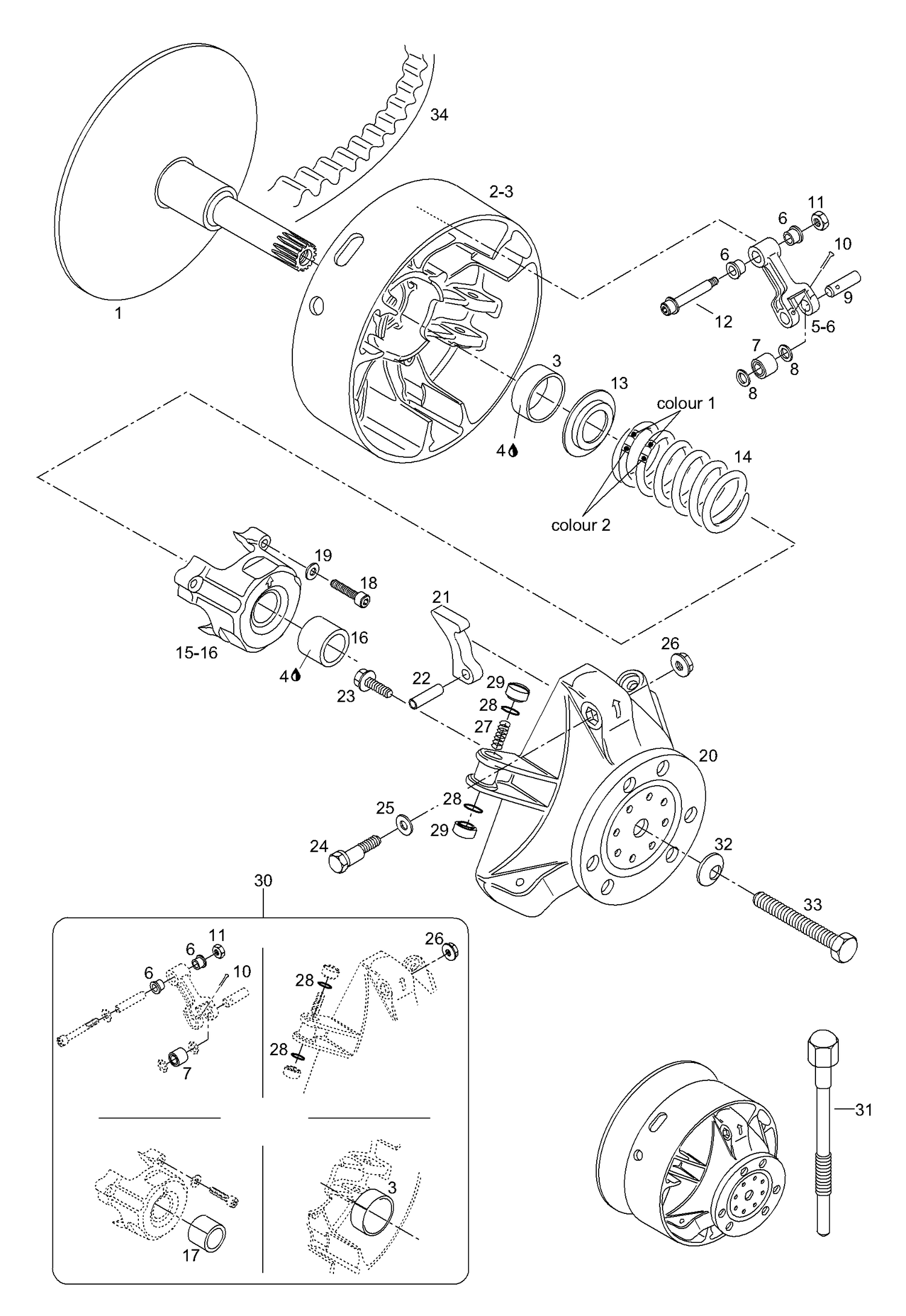

05- Clutch
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417222411 | Inner half assy This part replaces 417222407. |
| 3 | 417004201 | Bushing outer half |
| 4 | 413703100 | Loctite 609 10cc |
| 6 | 417004305 | Flanged bushing |
| 7 | 417222947 | Roller This part replaces 417003900. |
| 8 | 417004302 | Thrust washer |
| 9 | 417004308 | Pin |
| 10 | 250400060 | Cotter Pin This part replaces 732958001. |
| 11 | 232561414 | Elastic Stop Nut M6 |
| 12 | 417004800 | SCREW ASSY - Call your local BRP dealership |
| 13 | 417222044 | Spring seat |
| 14 | 414756900 | Spring, green/pink |
| 16 | Not | Available As Spare Part - Latch - DOES NOT APPLY TO THIS MODEL |
| 17 | 417004501 | Bushing spring cover |
| 18 | 250000038 | Allen screw M6 x 40 |
| 19 | 420245370 | WASHER - Call your local BRP dealership |
| 20 | 417222081 | GOVERNOR CUP ASSY - Call your local BRP dealership |
| 21 | 417222376 | Ramp 283 |
| 22 | 732804009 | Dowel tube 8 x 24 |
| 23 | 210361890 | HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 24 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 25 | 417005600 | Washer |
| 26 | 233061414 | Locking nut M6 |
| 27 | 417005700 | Spring |
| 28 | 732401030 | O-ring |
| 29 | 417223021 | Slider Shoe This part replaces 417005800. |
| 30 | 417006100 | Clutch repair kit |
| 31 | 529000064 | Puller This part replaces 529022400. |
| 32 | 20110 | Washer |
| 33 | 417120000 | Screw |
