| Ref | Part Number | Description |
|---|
| 2 |
0125456 |
HOUSING |
| 3 |
0125457 |
HOUSING |
| 4 |
0125459 |
HOUSING |
| 5 |
0125460 |
HOUSING |
| 6 |
0173598 |
TRAY |
| 7 |
0123261 |
SHAFT, Remote control |
| 8 |
0123496 |
DRIVE GAR, Starboard |
| 9 |
0123497 |
DRIVE GEAR, Port |
| 11 |
0123265 |
SPRING, Drive gear |
| 12 |
0123266 |
BRUSHING, Shaft to housing |
| 13 |
0123267 |
WASHER |
| 14 |
0123268 |
ROLLER Throttle cam |
| 15 |
0123269 |
WASHER |
| 16 |
0123270 |
CAM Neutral switch |
| 17 |
0123271 |
BUSHING, Throttle hub |
| 18 |
0909859 |
SCREW, Control housing |
| 20 |
0123274 |
SCREW, Tray to housing |
| 21 |
0123278 |
HANDLE |
| 22 |
0125198 |
KNOB, Binnacle |
| 23 |
0125199 |
END CAP, Knob |
| 26 |
0123610 |
COVER, Handle |
| 27 |
0125200 |
KNOB, Switch housing |
| 28 |
0123310 |
SCREW, Binnacle assy |
| 29 |
0125151 |
COVER |
| 30 |
0124894 |
SCREW, Control mounting |
| 32 |
0123342 |
SHOE Detent roller |
| 33 |
0123343 |
TRIM INSERT |
| 34 |
0123350 |
BUSHING |
| 35 |
0173571 |
THROTTLE CAM & ARMS ASSY. |
| 36 |
0173478 |
THROTTLE CAM & ARM ASSY. |
| 37 |
0173480 |
NEUTRAL START SWITCH |
| 38 |
0173572 |
LEAD ASSEM BLY |
| 41 |
0303887 |
WASHEER, Pin to swivel bracket |
| 44 |
0173542 |
SHAFT GEAR & ARMS ASSY |
| 47 |
0123439 |
SPACER, Control cable |
| 48 |
0125197 |
HATCH SWITCH KNOB |
| 49 |
0125196 |
RETAINER, Switch leads |
| 50 |
0123340 |
SCREW, Retainer |
| 51 |
0174632 |
TRIM SWITCH & LEAD |
| 0174633 |
0174633 |

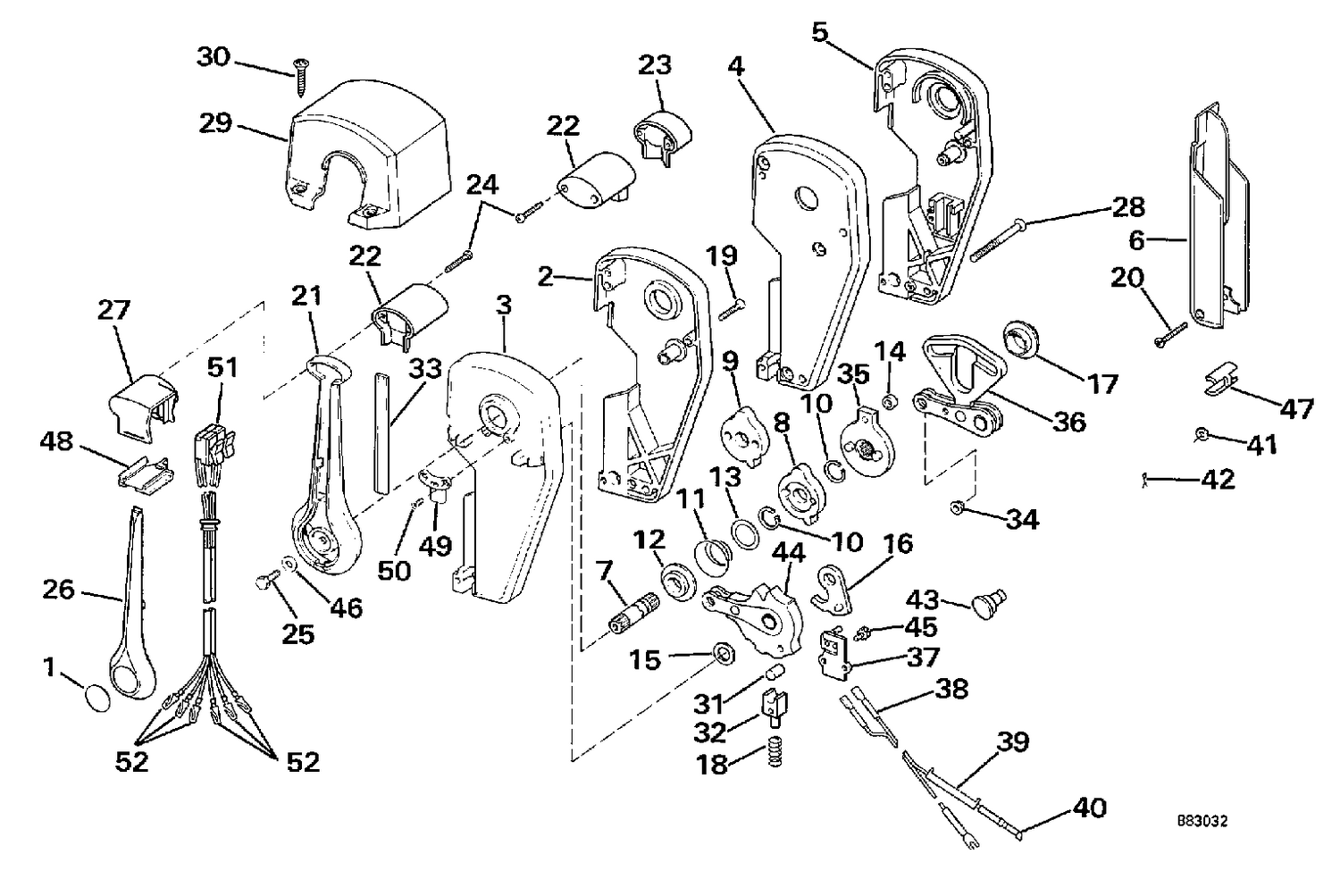

REMOTE CONTROL ASSY - BINNACLE MOUNT, Dual le er |
| 0982048 |
0982048 |
CABLE HARDWARE KIT |
