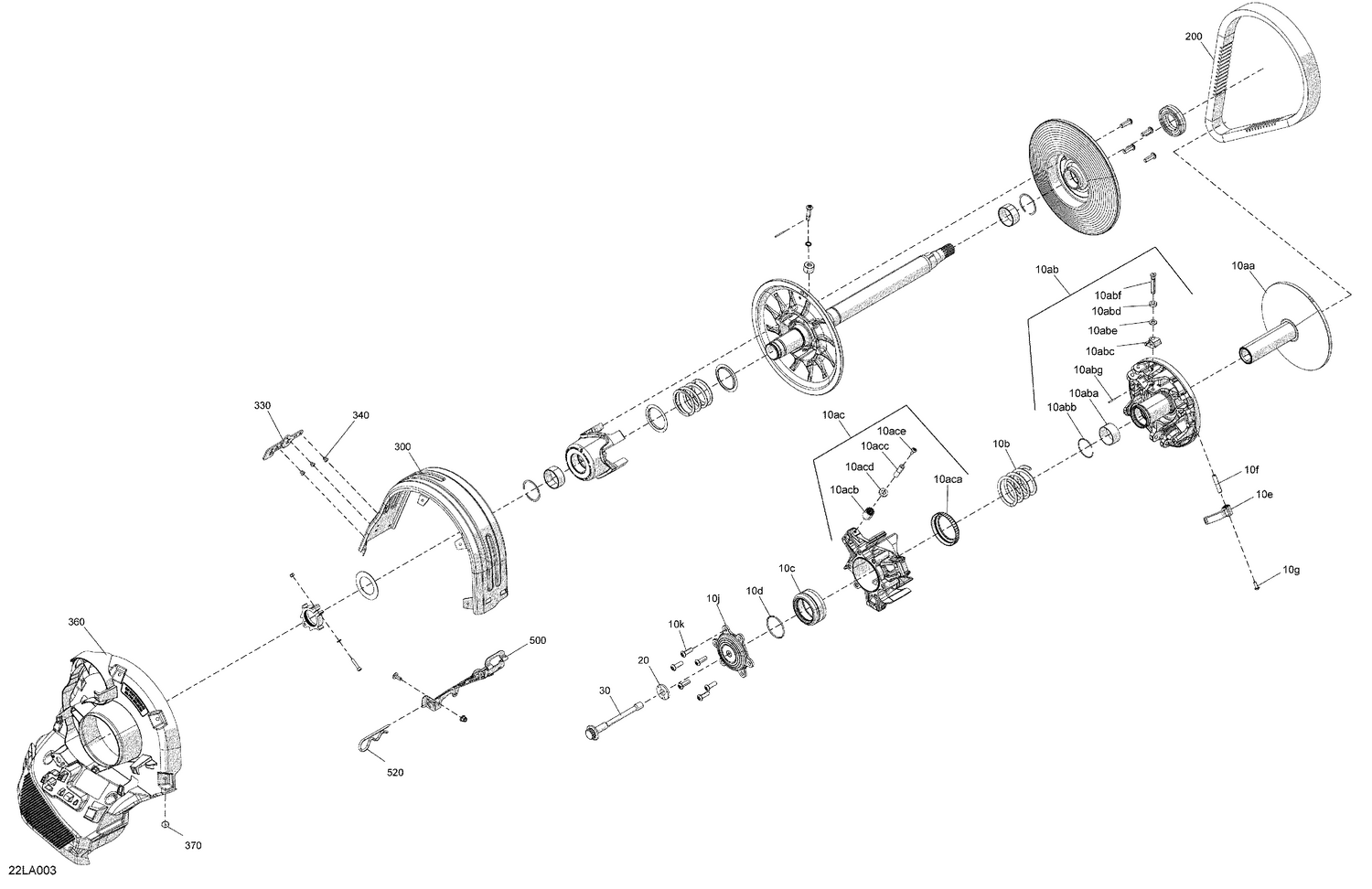

04- Drive - Pulley
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 417224581 | Sheave Drive Pulley Fixed Ass'y |
| 10ab | 417224747 | Sheave Drive Pulley Sliding Ass'y |
| 10aba | 293250389 | Bushing |
| 10abb | 293370137 | Circlip |
| 10abc | 417224478 | Slider |
| 10abd | 417224509 | Stopper |
| 10abe | 417224740 | Stopper |
| 10abf | 417224510 | Pin |
| 10abg | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 10ac | 417224624 | Spider Drive Pulley Ass'y |
| 10aca | 417224614 | Spring Guide |
| 10acb | 417224947 | Roller Pulley Ass'y This part replaces 417224285. |
| 10acc | 417224204 | Axle - 10mm |
| 10acd | 417224868 | Thrust Washer This part replaces 417224009. |
| 10ace | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10b | 417224171 | Clutch Spring |
| 10c | 417224003 | Seat Spring |
| 10d | 293370116 | Circlip |
| 10e | 417224690 | Ramp Pulley Ass'y 887 |
| 10f | 417224694 | Pin Ramp |
| 10g | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10j | 417224680 | Coupling Flange |
| 10k | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 200 | 417300586 | Drive Belt This part replaces 417300197. |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300561 | Front, Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300569 | CVT Duct Cooling |
| 370 | 293150103 | Pop Rivet 3/16 |
| 500 | 417300579 | Rear Guard Support |
