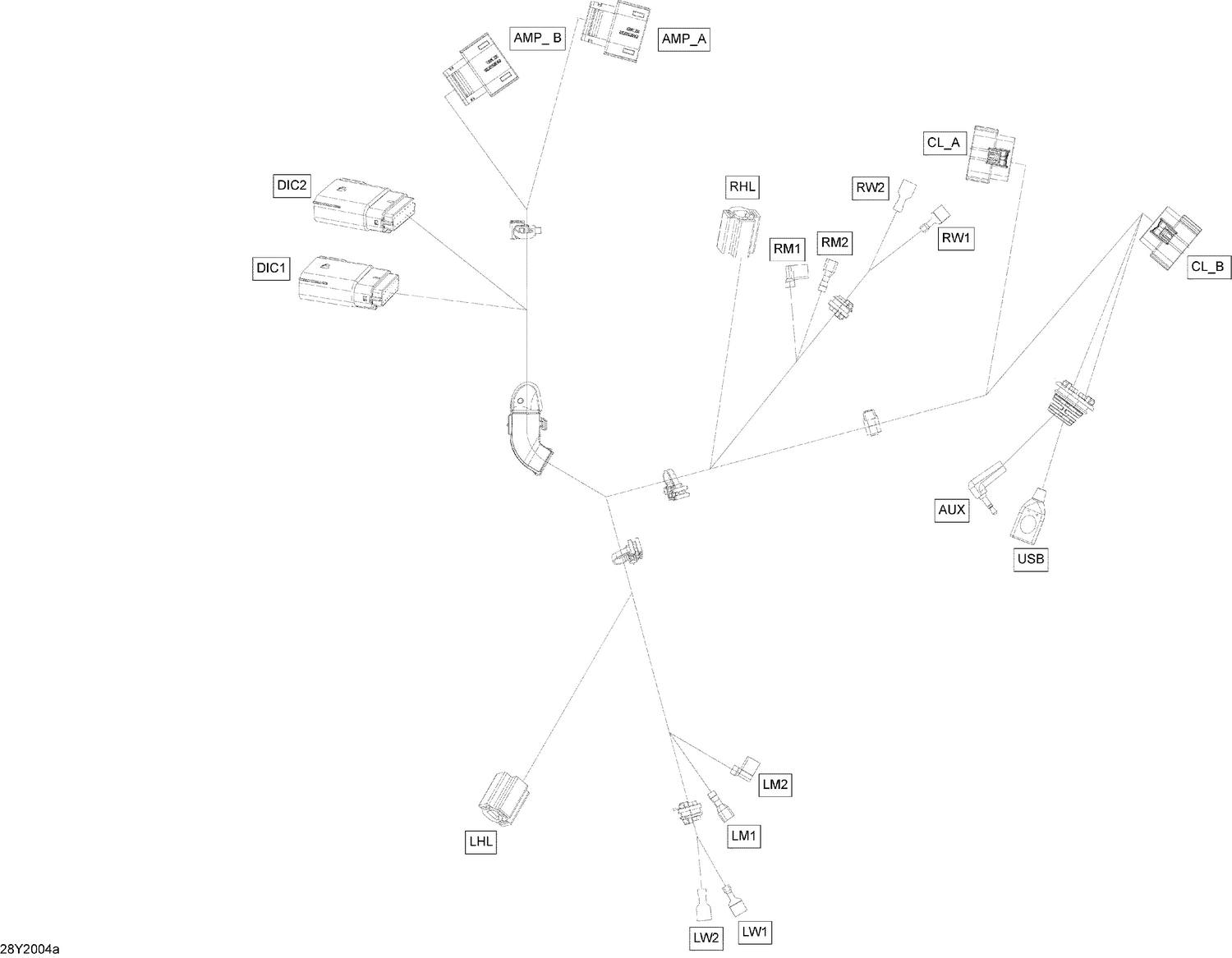

10- Electrical Harness - Console Canada USA
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| AMP_A | 278002860 | Sealing Cap |
| AMP_A | 278002994 | Housing, 12 Circuits |
| AMP_A | 515178014 | Female Terminal |
| AMP_A | 515178018 | Female Terminal |
| AMP_A | 515178349 | Female Terminal 22 AWG |
| AMP_B | 515178018 | Female Terminal |
| AMP_B | 515178349 | Female Terminal 22 AWG |
| AMP_B | 710005905 | Connector Molex Mx150 12pos |
| AUX | 278003492 | Audio Jack |
| AUX | 515178018 | Female Terminal |
| CL_A | 278002858 | Female Housing 20 Circuits |
| CL_A | 278002860 | Sealing Cap |
| CL_A | 515178018 | Female Terminal |
| CL_B | 515178018 | Female Terminal |
| CL_B | 515178303 | Housing, 20 Circuits |
| CL_B | 515178349 | Female Terminal 22 AWG |
| DIC1 | 278002860 | Sealing Cap |
| DIC1 | 515178013 | Male Terminal |
| DIC1 | 710005976 | Connector Molex Mx150 16 Pos |
| DIC2 | 278002860 | Sealing Cap |
| DIC2 | 515178013 | Male Terminal |
| DIC2 | 710005977 | Connector Molex Mx150 16 Pos |
| LHL | 515176908 | Female Housing |
| LHL | 515176909 | Terminal |
| LM1 | 710004857 | Female Terminal |
| LM2 | 710002399 | Female Terminal |
| LM2 | 710004835 | Terminal |
| LW1 | 710004857 | Female Terminal |
| LW2 | 409010100 | Female Terminal |
| LW2 | 409010400 | Female Terminal Housing, 1 Circuit |
| RHL | 515176908 | Female Housing |
| RHL | 515176909 | Terminal |
| RM1 | 710004858 | Female Terminal |
| RM2 | 409010100 | Female Terminal |
| RM2 | 409010400 | Female Terminal Housing, 1 Circuit |
| RW1 | 710004857 | Female Terminal |
| RW2 | 409010100 | Female Terminal |
| RW2 | 409010400 | Female Terminal Housing, 1 Circuit |
| USB | 515178018 | Female Terminal |
