Home / BRP / JOHNSON / 1969 / 55 / 55ES69A 1969 / INTAKE MANIFOLD AND CARBURETOR GROUP

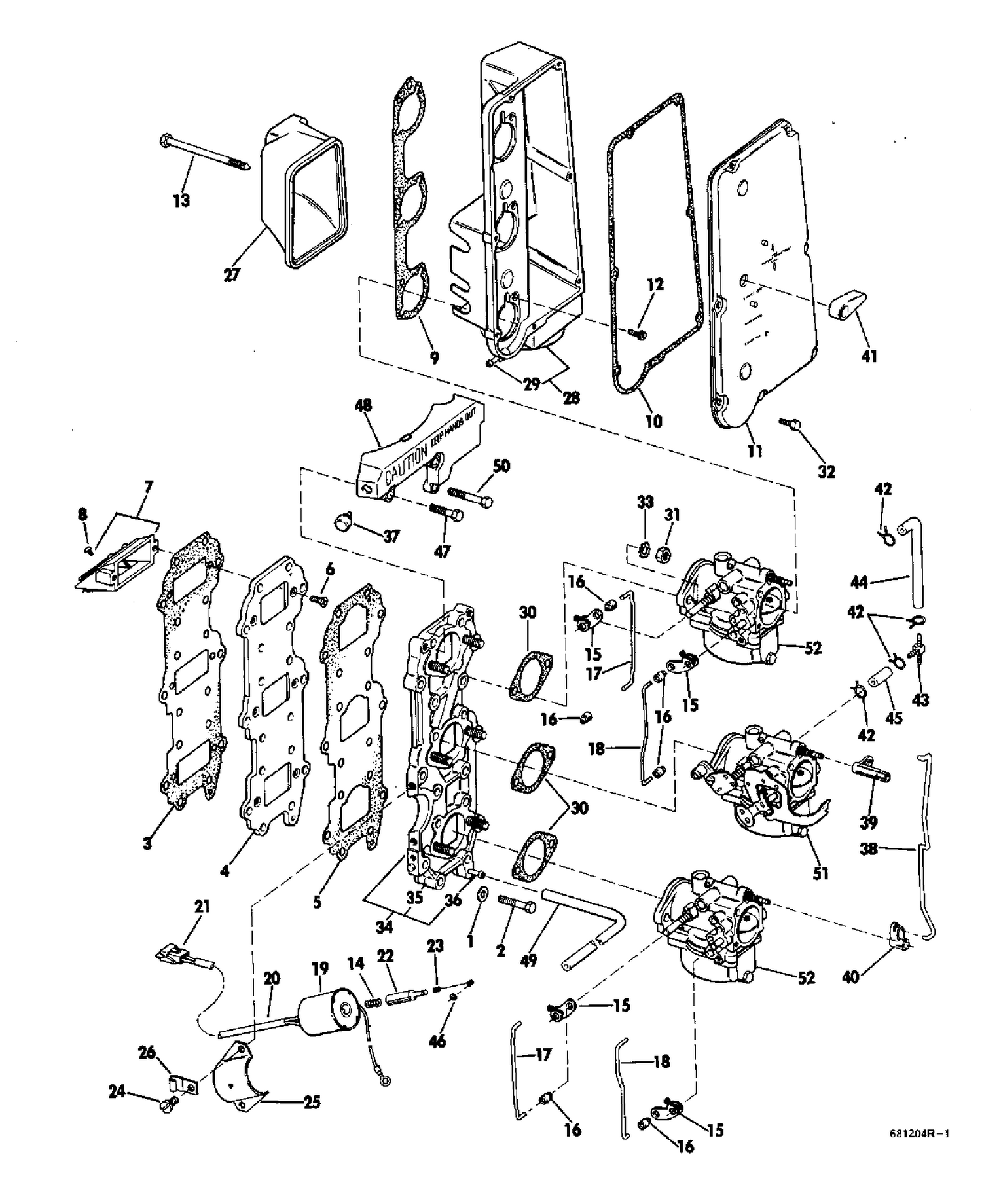

INTAKE MANIFOLD AND CARBURETOR GROUP

INTAKE MANIFOLD AND CARBURETOR GROUP

Parts (45)

RefPart NumberDescription
1 0302471 W.ASHER, Plain
2 0303398 VIS, support This part replaces 0302030.
3 0313422 GASKET, Base to crankcase
4 0317306 BASE, Leaf plate This part replaces 0313423.
5 0317305 GASKET, Manifold to base This part replaces 0313424.
6 0307609 SCREW
7 0389731 LEAF PLATE ASSEMBLY This part replaces 0382442.
9 0314115 GASKET, Air silencer
10 0314322 GASKET, Base to cover
11 0383057 COVER ASSEMBLY
12 0314496 SCREW, Air silencer
13 0314326 SCREW, Rear cover to base
14 0314739 SPRING, Plunger to solenoid
15 0378984 ARM & SCREW
16 0313329 LOCKWASHER, Carburetor link
17 0313695 LINK, Carburetor throttle
18 0314310 LINK, Carburetor choke
19 0383570 SOLENOID ASSEMBLY
20 0314424 HOUSING, Conn.
22 0313636 PLUNGER
23 0314193 SPRING, Choke solenoid
24 0319292 SCREW, Clamp This part replaces 0308762.
25 0314327 CLAMP, Choke solenoid
26 0310441 CLAMP, CPS lead
27 0313958 COVER, Air silencer, rear
28 0383082 BASE AND NIPPLE ASSY.
30 0325092 GASKET This part replaces 0314477.
31 0306320 NUT
32 0314576 SCREW
33 0306799 L'WASHER,Bracket to hsg.
34 0386662 MANIFOLD, Intake This part replaces 0383193.
37 0314021 BUMBER, Exhaust manifold
38 0314119 LINK, Slow speed adjust
39 0313791 ARM, Slow speed adjust, middle
40 0313792 ARM, Slow spd adj., upper & lower
41 0313790 LEVER, Slow speed adjust, carburetor
42 0302647 CLAMP
44 0333387 FLEXIBLE, soupape de retenue vers raccord inférieur This part replaces 0314512.
45 0203909 HOSE, Oil return This part replaces 0314191.
46 0307529 JOINT TORIQUE, galet vers contre-came
47 0306418 VIS, ancrage
48 0315203 GUARD, Ring gear
49 0308506 HOSE, Oil line This part replaces 0552613.
50 0306493 SCREW, Regulator mounting
51 0382625 CARBURETOR ASSEMBLY, Middle
